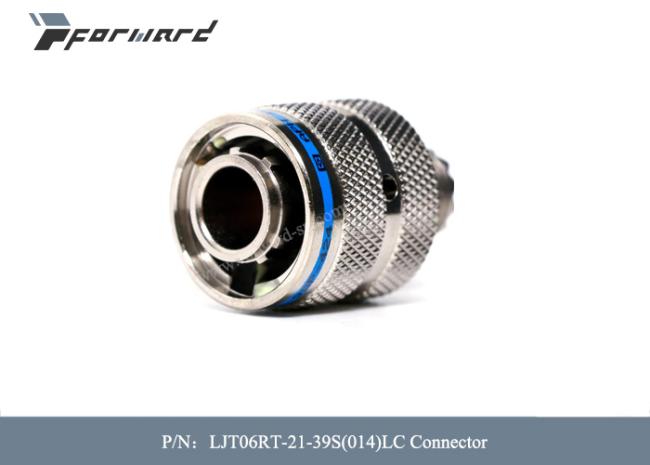

Aviation Parts LJT06RT-21-39S(014)LC Connector Female Socket

Descriptions of Aviation Parts:


Maximum design flexibility is built into the JT/LJT Series, with a minimum of 2 to a maximum of 128 circuits per connector in a wide variety of contact arrangements. Contacts are available in sizes 8, 10, 12, 16, 20, 22, 22D and 22M with standard 50 micro inch minimum gold plating (100 micro inches optional). All socket contacts are probe proof. Crimp type rear removable contacts are featured in JT-R and LJT-R connectors. Solder termination contacts are also available, as well as PCB, wire wrap, thermocouple, fiber optic, coaxial, triaxial and twinax contact options.

Features of Aviation Parts:

• Lightweight, Space Saving Design

• Contact Protection - 100% scoop-proof LJT design prevents bent pins and short circuits during mating

• Quick Positive Coupling - 3 point bayonet lock system

• Mismating Eliminated - with 5 key/keyway design

• Error Proof Alternate Positioning - insured by different key/ keyway locations

• EMI Shielding - grounding fingers standard in LJT Series; optional in JT Series

• Nine Shell Sizes and a Variety of Shell Styles

• Contact Options - size 8, 10, 12, 16, 20, 22M and 22D Crimp, Solder, PCB, Wire wrap, Coax, Twinax, Triax, Thermocouple, Fiber Optic and Filter

• Fixed Solder Contacts - Amphenol MIL-DTL-38999 Series I LJT and II JT, are available in solder versions as both Commercial and Military qualified to MIL-DTL-27599

• Hermetic - air leakage limited to 1 X 10-7 cm3 per second optional

• “Breakaway” Lanyard Release Style - available in LJT plugs. Provides quick disconnect of the connector plug and receptacle with axial pull on the lanyard. See pages 94-96.

• Inventory Support Commonality - uses standard MIL-DTL-38999 contacts, insert arrangements and application tools.

• RoHS Compliant Product Available - Consult Amphenol Aerospace Operations

Specifications of Aviation Parts:
