FW-ED11 1535nm Eye-safe Laser Ranging Module with Φ12mm Launch Lens Φ40mm Receiver Lens and ≤0.3 mrad Divergence Angle
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5-8 work days
Brand:
Forward
Product Description
FW-ED11 1535nm Eye-safe Laser Ranging Module
The FW-ED11 laser rangefinder module combines eye safety with compact design, lightweight construction, and energy efficiency. Engineered for durability across wide temperature ranges, this versatile module excels in reconnaissance, measurement, and mapping applications.
Designed for seamless system integration, the uncased module features multiple interfaces and includes both PC host computer software and embedded software, making it ideal for handheld and multifunctional systems.
Key Features
- Class 1 eye-safe laser (1535nm wavelength)
- Compact and lightweight design (≤275g)
- Wide operating temperature range (-40°C to +70°C)
- Low power consumption (≤3W peak)
- Multiple interface options for system integration
- Includes PC software and embedded software
- Grade durability (MIL-STD-810G compliant)
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 1.54μm ±0.02μm |
| Eye Safety Class | Class 1 |
| Divergence Angle | ≤0.3 mrad |
| Laser Energy | ≥300 μJ |
| Measuring Range (30% reflectance) | 4m*6m objective ≥12km |
| Minimum Range | ≤50 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 0.5Hz~10Hz |
| Power Supply | DC 12V |
| Dimensions (L*W*H) | 107mm * 62mm * 72mm |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +75°C |

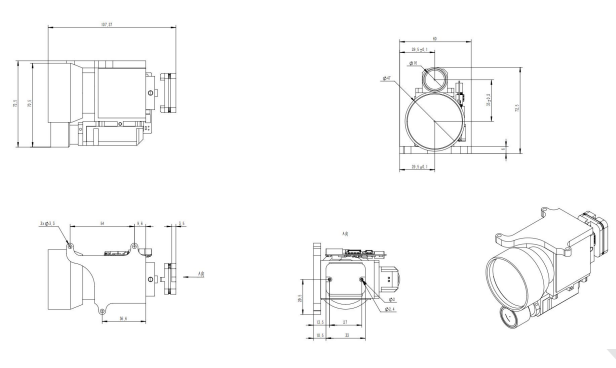

Dimensions
