FWD100-48 Series 100W DC-DC Power Module with 1500VDC Isolation and Ultra-compact Size for Aviation Applications
- High Efficiency: 90%
- Max Output Power: Up to 100W
- Input/Output Isolation: 1500VDC
- Ultra-compact size: 60 * 25 * 12.7 mm
- High reliability: No internal Aluminum and Tantalum electrolytic capacitors
- Over current, over voltage and short-circuit protection
- Applications:Industrial control, radar, fire control, missile-borne, communication systems
| Model | Input (VDC) | Output (VDC) | Output Current | Ripple Vp-p | Efficiency | Size(mm) |
|---|---|---|---|---|---|---|
| FWD100-48S3R3C | 18-75V | 3.3V | 20.0A | 75mV | 86% | 60 * 25 * 12.7 |
| FWD100-48S05C | 18-75V | 5.0V | 20.0A | 75mV | 88% | 60 * 25 * 12.7 |
| FWD100-48S12C | 18-75V | 12V | 8.33A | 120mV | 90% | 60 * 25 * 12.7 |
| FWD100-48S15C | 18-75V | 15V | 6.66A | 150mV | 90% | 60 * 25 * 12.7 |
| FWD100-48S24C | 18-75V | 24V | 4.16A | 240mV | 89% | 60 * 25 * 12.7 |
| FWD100-48S28C | 18-75V | 28V | 3.57A | 280mV | 89% | 60 * 25 * 12.7 |
| Input Parameter | Remark | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Input voltage range | 48Vin | 18 | 48 | 75 | VDC |
| Input surge voltage(Max 100ms) | 48Vin | 80V | VDC | ||
|
UVLO |
48Vin Input power on 17-18Vdc | ||||
| 48Vin Input power off 17-18Vdc | |||||
| Input/output filtering | π Type | Multi-level | |||
| Enable logic | Positive logic: Power on (Enable pin open), Power off (Enable pin shorted) Negative logic: Power off (Enable pin open), Power on (Enable pin shorted) |
||||
| General Specification | Remark | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Input/output isolation voltage | 1500 | VDC | |||
| Input/housing isolation voltage | 1500 | VDC | |||
| Output/housing isolation voltage | 500 | VDC | |||
| Insulation resistance | DC500V | 100 | MΩ | ||
| Switching frequency | 280 | 330 | 400 | kHz | |
| Working temperature | -40 | 100 | ℃ | ||
| Storage temperature | -55 | 100 | ℃ | ||
| Protection | Moisture proof, salt spray proof, mold proof | ||||
| Size | 60 * 25 * 12.7 | mm | |||
| Cooling method | Convection, forced air cooling, conduction | ||||
| Weight | 58 | g | |||
| Test Project | Method | Test Condition | Industrial Grade | Grade |
|---|---|---|---|---|
| Internal visual inspection | GJB548B, 2017.1 | 100% | 100% | |
| High temperature storage | GJB150.4A | +125℃, 48h | 100% | |
| Low temperature storage | GJB150.4A | -55℃, 48h | 100% | |
| Temperature cycle | GJB548B, 1010.1 | -55～+125℃, 10 times | 100% | |
| Intermediate voltage testing | - | Tc = +25℃ | 100% | |
| Burn-in | Tc = +85℃, 48h | Random check | 100% | |
| Final electrical test | Product specification | -40℃, +25℃, +85℃ (Tc) | 100% | 100% |
| External visual inspection | GJB548B, 2009.1 | 100% | 100% |
60mm(L)*25(W)*12.7mm(H)
Application Notes
Typical Application Circuit

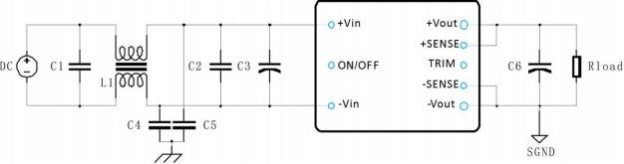

The power supply has a built-in filter, which meets the requirements of general power supply applications. If a power supply system with higher requirements is needed, an external filtering network (such as an LC or π type network) can be added to the input circuit. A typical application circuit is shown in the figure.
Recommended values for external components:
|
PN |
Parts description |
Remark |
|
L1 |
Common mode inductors: Select appropriate parameter values based on actual system application requirements |
|
|
C 1, C2 |
X2 capacitors: Select appropriate parameter values based on actual system application requirements. |
|
|
C4, C5 |
Y1 capacitor: Select appropriate parameter values based on actual system application requirements. |
|
|
C3 |
470µF-63V/100V |
Solid-state capacitors, or low-ESR electrolytic capacitors, have good performance characteristics across a wide range of temperatures. |
|
C6 |
220µF-6.8V/25V/35V/50V/100V |
Polymer tantalum capacitors or solid-state capacitors, or low-ESR electrolytic capacitors, offer good performance across a wide range of temperatures. |

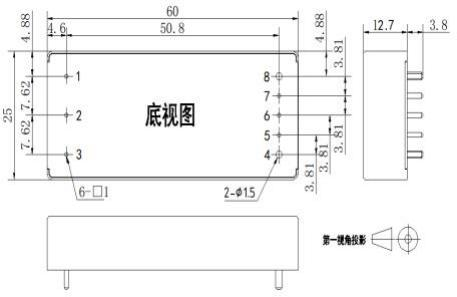

Appearance size and pin unit: mm(tolerance±0.5mm)
