OM360 Piston Ring Set For Benz 115.00mm 3.5+3+5.5 Abrasion Resistance
OM360 Piston Ring For Benz 115.00mm 3.5+3+5.5 Abrasion Resistance
| Model | OM360 Piston Ring For Benz 115.00mm 3.5+3+5.5 Abrasion Resistance |
| Weight | 0.15 kg/PC |
| DIA. | 115.00mm |
| SIZE | 3.5+3+5.5 |
| Application | PISTON RING |
| Quality | ISO 9001:2008 ISO/TS16949 standard |
| Precision | 0.027mm |
| Service | OEM available |
Product Characteristics
Basis Information
The size of the piston ring is usually determined based on the specific piston diameter, cylinder diameter, and application requirements. Accurate matching of dimensions is crucial for the performance and sealing effect of piston rings.
Product Feature

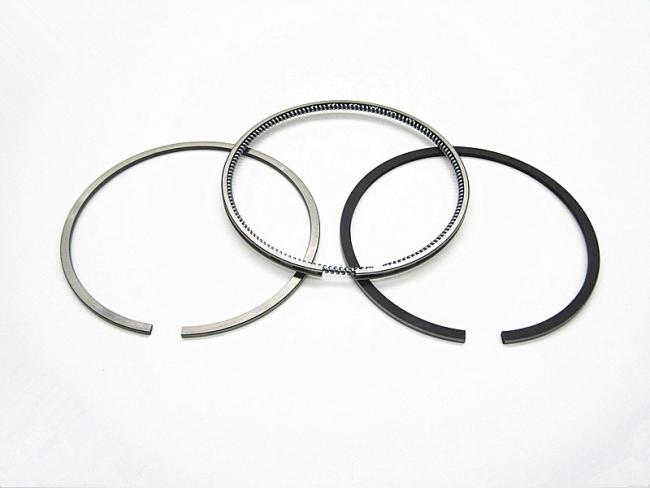

A piston ring usually consists of two or three rings, including an upper ring, a middle ring, and a lower ring. Each ring has different functions and characteristics. The upper ring is mainly used to seal the combustion chamber, the middle ring is used to assist in sealing and controlling the oil film, and the lower ring is mainly used to seal the combustion chamber and control the oil film.
The piston ring is used to seal the gap between the piston and the cylinder block to prevent leakage of lubricating oil and combustion chamber gas. High quality piston rings can provide excellent sealing performance, ensuring the normal operation of the engine or compressor, and minimizing energy loss and environmental pollution.
The piston ring is generally composed of several rings, closely connected on both sides. Common structures include oil rings, oil control rings, and upper and lower spiral grooves. The piston rings with different structures undertake different functions, such as sealing the cylinder, conducting heat, lubricating, etc.
=
