Full Color Waterproof Outdoor LED Screens with High Refresh Rate P3.076 LED Modules
Product Description:
Featuring a cabinet material made of die-casting aluminum, this P5 outdoor LED module is built to withstand outdoor weather conditions. The sturdy build ensures that the module can withstand harsh wind, rain, and dust. This makes it a reliable investment for your outdoor display needs.
The P5 outdoor LED module has a pitch of 5mm, making it an ideal option for those seeking a high-resolution display with a small pixel pitch. The module's high resolution ensures that your displayed content appears sharp and clear, making it ideal for displaying text, images, and videos.
This P5 outdoor LED module comes with a 3-year warranty, giving you the peace of mind that you are investing in a quality product that is built to last. You can trust that our product is designed to meet your needs and exceed your expectations.
The P5 outdoor LED module is a perfect addition to your outdoor signage needs, whether you need to display prices, advertisements, or other promotional content. This module can handle all your display requirements with ease, making it the perfect investment for your business.
If you are looking for a flexible LED module for your outdoor display needs, the P5 outdoor LED module is a great option. Its high resolution, sturdy build, and 3-year warranty make it a reliable choice for any business. And if you need a larger pixel pitch, be sure to check out our P10 SMD outdoor LED display.
Features:
- Product Name: Outdoor Led Module
- Refresh Rate: ≥1920Hz
- Resolution: 64x64dot
- Life Span: >100000hours
- Warranty: 3 Years Warranty
- Product Type: led panel display module
- Product Type: flexible led display module
- Product Type: p3 outdoor led module
Module parameters

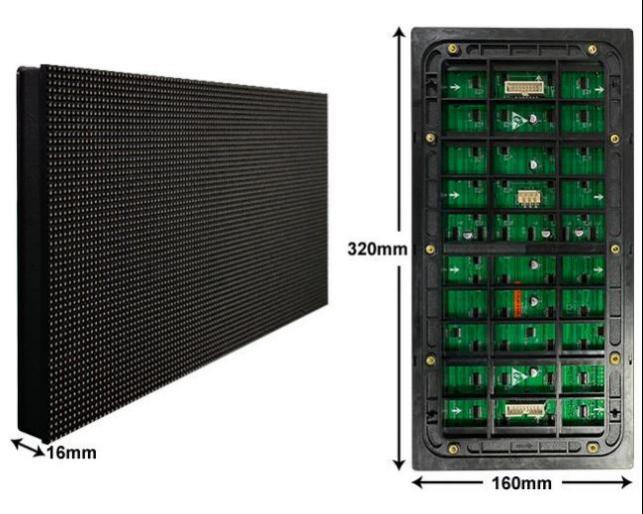

| 01 | Module size | 320mm*160mm |
| 02 | Pixel spacing | 3.076mm |
| 03 | Scanning mode | 13S |
| 04 | Module pixel point | 104 * 52 = 540 8 points |
| 05 | Drive IC | IC6363 |
| 06 | Lamp bead model | 1415 |
| 07 | Physical density | 105625 points/㎡ |
| 08 | Pixel point composition | 1R1G1B |
| 09 | Color | R,G,B |
| 10 | Brightness | ≥4200cd/㎡ |
| 11 | Refresh frequency | ≥3840HZ |
| 12 | Frame change frequency | ≥60Hz |
| 13 | Display color | 256 * 256 * 256 = 16777216 color |
| 14 | Optimal sight distance | 3～50M |
| 15 | Operating temperature | -25℃~+55℃ |
| 16 | Relative humidity | 10%～95% |
| 17 | Average power consumption | 450W/㎡ (related to the video source to be played) |
| 18 | Maximum power consumption | 900W/㎡ |
| 19 | Operating voltage | 220V±10％ ,50/60Hz |
| 20 | Switching power supply load | 5V/40A,5V/30A |
| 21 | Screen life | ≥ 100000 hours |
| 22 | Quality and safety standards | CE,CCC,ISO9001:2008,ROHS |
Technical Parameters:
| Fresh Frequency | ≥960HZ |
| Brightness | ≥6500 Nits |
| Led Configuration | SMD1921 |
| Warranty | 3 Years Warranty |
| Resolution | 64x64dot |
| Life Span | >100000hours |
| Refresh Rate | ≥1920Hz |
| Pitch | 5mm |
Applications:
The LED panel display module comes in two different models: P3.91mm and P2.5, which allow for different resolutions and pixel pitches. This makes it a versatile product that can be used for various occasions, such as:

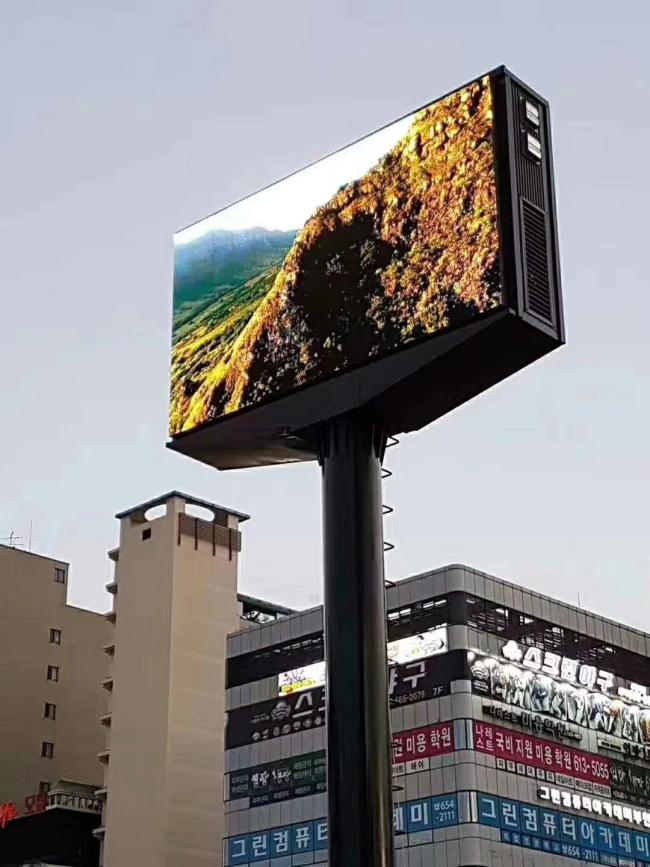

- Outdoor advertising displays for businesses
- Informational displays for events, festivals, and concerts
- Promotional displays for product launches and sales
- Price display signs for retail stores and supermarkets
The TOPVIEW Outdoor LED Module product is made in Shenzhen, China, and comes with a 3-year warranty, ensuring that customers can rely on its quality and performance for a long time. It has a refresh rate of ≥1920Hz and a fresh frequency of ≥960Hz, which allows for smooth and seamless video and image playback.
One of the main advantages of this product is that it is a full-color LED display, which means it can display a wide range of colors and shades, making it perfect for creating eye-catching and engaging content. Additionally, the LED module is easy to install and operate, allowing businesses and organizations to set up their displays quickly and efficiently.
Overall, the TOPVIEW Outdoor LED Module product is a great choice for anyone looking for a reliable and high-quality LED display solution for outdoor applications. Whether you need a p10 32x16 LED matrix display or any other type of outdoor LED display, the TOPVIEW brand has got you covered.
Customization:
Support and Services:
The Outdoor Led Module product technical support and services include:
- Installation guidance and support
- Product troubleshooting and repair services
- Product warranty and replacement services
- Software and firmware updates
- Product customization services
- Training and education services for product usage and maintenance
