Emergency Medicine MPEG-4 Handheld Ultrasound Scanner For Clinical Diagnostic Use
Emergency Medicine Handheld Ultrasound Scanner for Clinical Diagnostic Use
FEATURES
The Lite series handheld ultrasound scanner is an innovative medical imaging device that offers a range of breakthroughs in key areas. The device is designed to be smaller in size, yet more powerful in performance, making it suitable for a variety of clinical scenarios.
The Lite series represents the third generation of handheld ultrasound scanners, and it provides doctors with efficient and sustainable clinical diagnostic support. The device's high-quality imaging capabilities and user-friendly interface make it a valuable tool for medical professionals in a range of clinical settings.
One of the key features of the Lite series is its compact size, which makes it highly portable and easy to use. This feature allows doctors to carry the device with them during patient rounds or in the field, making it a valuable tool for emergency medicine and other urgent care scenarios.
In addition to its portability, the Lite series also offers powerful performance capabilities. The device is capable of producing high-quality images of the body's internal structures, allowing doctors to make accurate diagnoses and provide effective treatment.
The Lite series is also designed to be highly versatile, with a range of probes and imaging modes that can be used for a variety of clinical applications. This feature makes the device a valuable tool in settings ranging from general practice to specialty care.
Overall, the Lite series represents a significant breakthrough in handheld ultrasound technology, providing doctors with efficient and sustainable clinical diagnostic support. The device's compact size, powerful performance, and versatility make it a valuable tool in a range of clinical scenarios, from emergency medicine to outpatient care.
PARAMETERS:
| Scanning mode | Electronic Convex with 128 elements |
| Display mode | B/C/M/PW/PDI/DPDI |
| Frequency | 2/3.6/5MHz |
| Depth | 37.8cm |
| Scan angle | 60 degree |
| Head radius | 60mm |
| Image Adjust | Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer |
| Measure | Length, Area, Circumference, Angle, Trace, Obstetrics |
| Annotation | Yes |
| FPS | 8-30 |
| Dimension | 255*190*60mm |
| Working System | iOS, Android |
APPLICATIONS
ABD, GYN, UR, LUNG, FAST
CONTENT INCLUDED
Wireless Handheld Ultrasound Scanner – Lite 31C Convex Probe
Internal Battery
Charging Cable
User Manual
Warranty Card

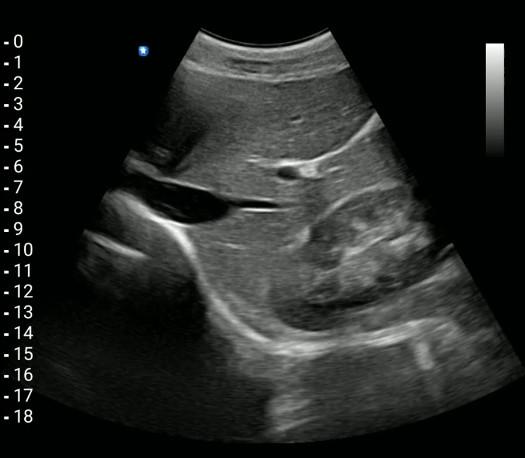

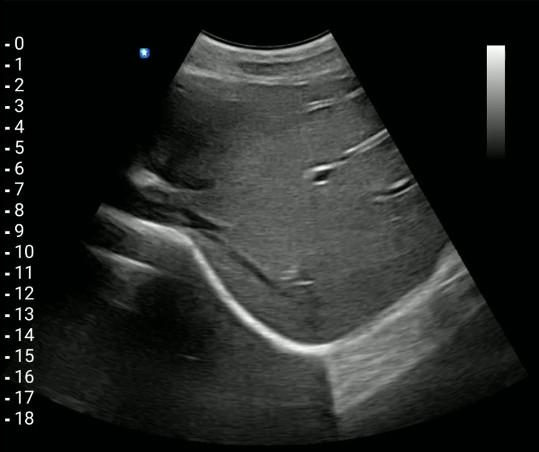

IMAGE GALLERY
