Veterinary Ultrasound System Bovine Ultrasound Machine 4.0MHz 6.0MHz 8.0MHz

Price Negotiable
Price: Negotiable
MOQ: 1 Unit
Delivery Time: 2 working days
Brand: Golead
Product Description
Veterinary Ultrasound System Bovine Ultrasound Machine 4.0MHz 6.0MHz 8.0MHz
Portable Veterinary Bovine Ultrasound Machine

Based on Android Phone and Tablet platform, this portable veterinary ultrasound machine enables veterinarians to perform ultrasound examinations on cows and other large animals in field conditions.

Product Overview

This specialized medical device is designed for field use with large animals, featuring a portable and lightweight design for maximum convenience. The ultrasound machine utilizes high-frequency sound waves to generate detailed images of internal structures, aiding in the diagnosis of various health conditions.

A handheld transducer is placed on the animal's skin, emitting sound waves that reflect back and are converted into real-time images. This technology is particularly valuable for reproductive assessments including pregnancy detection, as well as identifying internal injuries or diseases.

Built with rugged durability to withstand field conditions, these machines may include advanced features such as wireless connectivity and enhanced imaging capabilities, providing veterinarians with accurate diagnostic information for appropriate treatment decisions.

Technical Specifications
Parameter Specification
Scanning mode electronic linear array
Display mode B/PWD
Central frequency 8.0MHz
Depth 20-100mm
Weight 350g
Power consumption <1.8W
Image to screen ratio >85%
Frame rate up to 15FPS
Gray 256
Belt clamp yes
Probe cable length 1.7m
Working system Android or Windows
USB connector type-C or type-A
Applications
  • Bovine/Equine reproduction
Standard Configuration

Veterinary Ultrasound Machine - Long Shaft Rectal Probe UL8-4T

Image Gallery

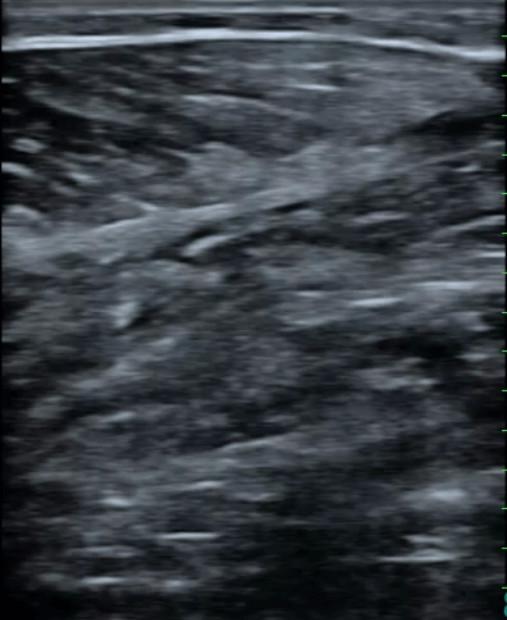

Veterinary ultrasound machine showing detailed imaging capabilities for bovine reproduction Portable veterinary ultrasound system with probe and display interface
