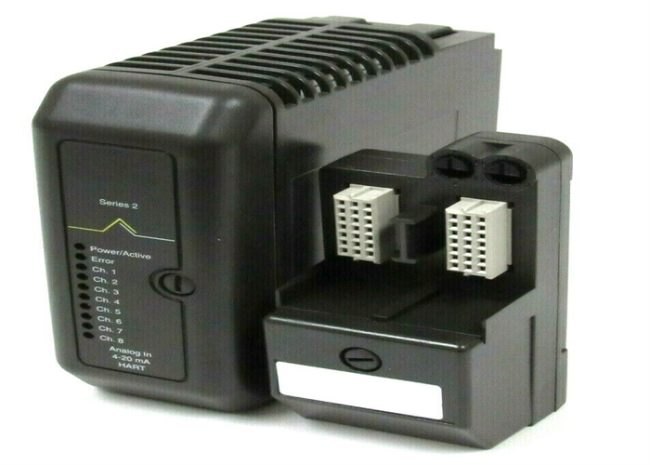

KJ3222X1-BA1 Brand Emerson Power Supply Module New In Original

Description:

KJ3222X1-BA1 AI 8 CH 4-20mA HART CARD SERIES 2

Power Specifications:

Local Bus Power:12 VDC at 150 mA
Bussed Field Power: 24 VDC at 300 mA
Field Circuit: 24 VDC at 30 mA/Ch.

Environmental Specifications:

Ambient Temperature: -40 °C to +70 °C
Shock: 10 g half-sine wave for 11 ms
Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Airborne Contaminants:ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity:5 to 95% Non-Condensing
Terminal block key position:A1

Note: Refer to the product label for serial number and location and date of manufacture.

Warning: This product has specific instructions for installation, removal and operation in hazardousareas.

Refer to document 12P2046 "DeltaV TM Scalable Process System Zone 2 Installation Instructions".

Other installation instructions are available in the "DeltaV TM S-series and CHARMs Hardware Installation" manual.

Removal and Insertion:  Field power supplied to this device, either at the field terminal or as bussed field power through the Carrier, must be removed before removing or connecting the device.

An I/O loop assessment must be complete on all energy limited nodes.

This unit cannot be removed or inserted with system power energized.

A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete.

The terminal block must have the keys set for the I/O card with which it is to be used.

Maintenance and Adjustment:

This unit contains no user serviceable parts and should not be disassembled for any reason.
Calibration is not required.
