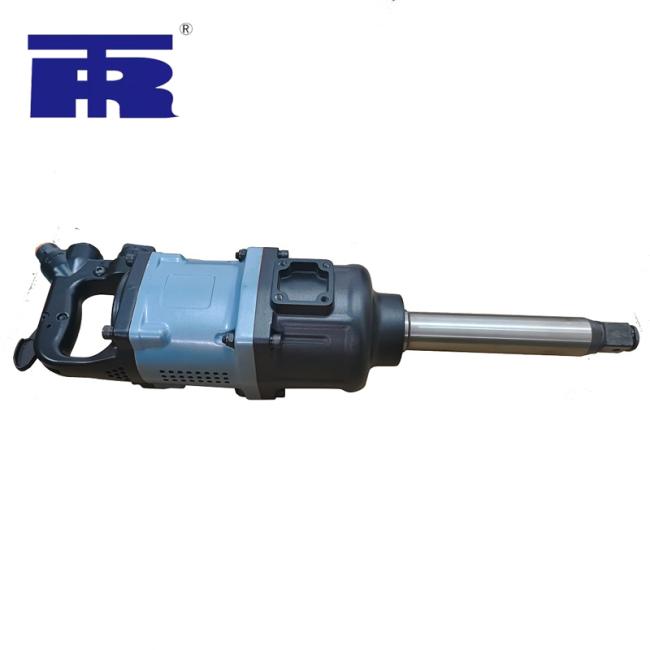

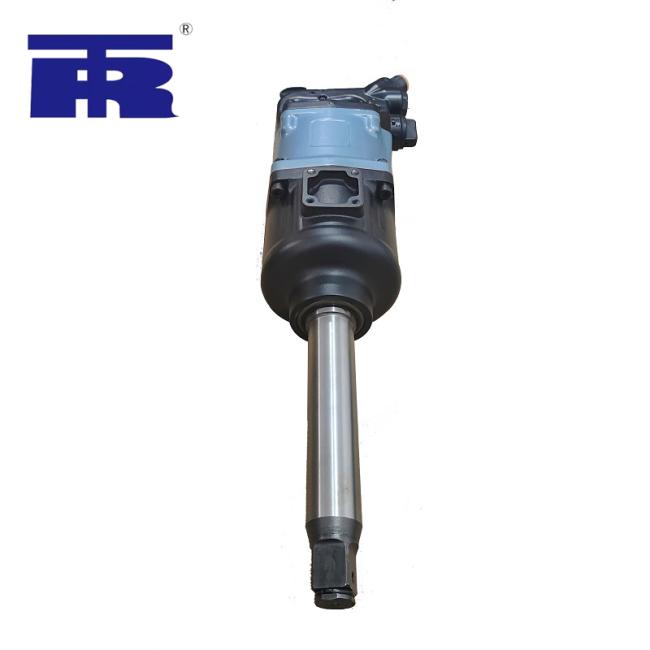

High Durability Large Impact Wrench High Torque Pneumatic Impact Wrench 3/4inch
1 Inch Air Imact Wrench High Torque 1′′ Air Impact Wrench air tools
Product Description:
The Impact Wrench is a kind of pneumatic tool, because the noise when it works is louder than the sound of a gun, so it is named after it, and it is also called a pneumatic wrench.
The power source is the compressed air output by the air compressor. When the compressed air enters the Impact Wrench cylinder, it drives the impeller inside to rotate to generate rotational power. The impeller then drives the connected striking part to perform a hammering motion, and after each strike, the screw is tightened or removed.
It is an efficient and safe tool for disassembling and assembling screws. The force generated by a large Impact Wrench is equivalent to the force that two adults use to tighten the screws with a spanner more than two meters long. Its force is usually proportional to the pressure of the air compressor, when the pressure is large,then the power is large, and vice versa is small. Therefore, once too much pressure is used, it is easy to damage the screw when tightening the screw.
3. Technique Parameters
| Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressur | N.W |
| TR-6691 | 3/4" or 1” | 4800 | 1880 | Twin hammer or pin less Hammer | 3/8" | 1.5〃 | M28 | 90 PSI | 5.75kg |
| TR-1751 | 1/2〃 | 6000 | 950 | Twin hammer | 1/4" | 1” | M18 | 90 PSI | 2.75kg |
| TR-2801 | 1/2〃 | 7200 | 680 | Twin hammer | 1/4" | 1” | M16 | 90 PSI | 2.45kg |
| TR-5331 | 1” | 4200 | 2550 | pinless Hammer | 1/2〃 | 6" 2 6" | M34 | 90 PSI | 9.5kg |
| TR-6351 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 13.25kg |
| TR-6371 | 1” | 4000 | 2800 | pinless Hammer | 1/2〃 | 6" or 8" | M36 | 90 PSI | 12.1kg |
| TR-6361 | 1” | 4000 | 3000 | pinless Hammer | 1/2〃 | 6" or 8" | M38 | 90 PSI | 14.25kg |
| TR-1801 | 1” | 3700 | 3800 | pinless Hammer | 1/2〃 | 6" or 8" | M45 | 90 PSI | 16.9kg |
| TR-1901 | 1” | 3700 | 4000 | pinless Hammer | 1/2〃 | 6" or 8" | M50 | 90 PSI | 17.3kg |
4. Product photos with details
We can discuss:
1.Q: Can you send us samples?
A: We are pleased to send you the sample to test the quality and market check.
2.Q: About your products, could you do it OEM?
A: Yes, OEM is workable for us, but with MOQ. We could laser your logo on the machine.
3.Q: Have you guarantee for your products?
A: Normally we provide one year guarantee with spare parts supply,or you could ready some easy damage spare parts.
4. Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
5.Q: For the product, could you spray other color of painting?
A: Yes, color can be customized but with MOQ.
6.Q: What's the delivery time?
A: About 5-25 days to produce, if use ours color and English packing.
7.Q: How is the payment terms?
A: Normally T/T 40% in advance and T/T 60% before loading goods in factory.
8.Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ,we can discuss.
9.Q: How does your factory do regarding quality control?
A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.
10.Q: Do you have quality certification?
A: Yes, we have CE(TUV SOD).
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
Thank you from your supports.
