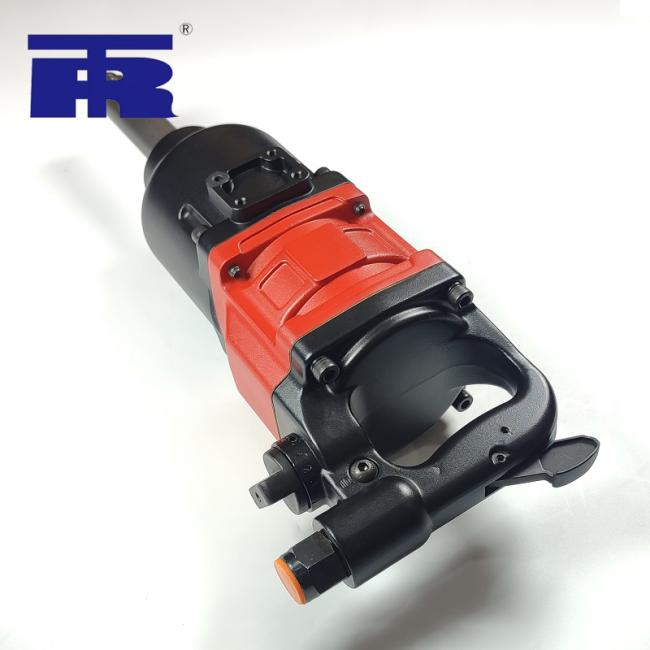

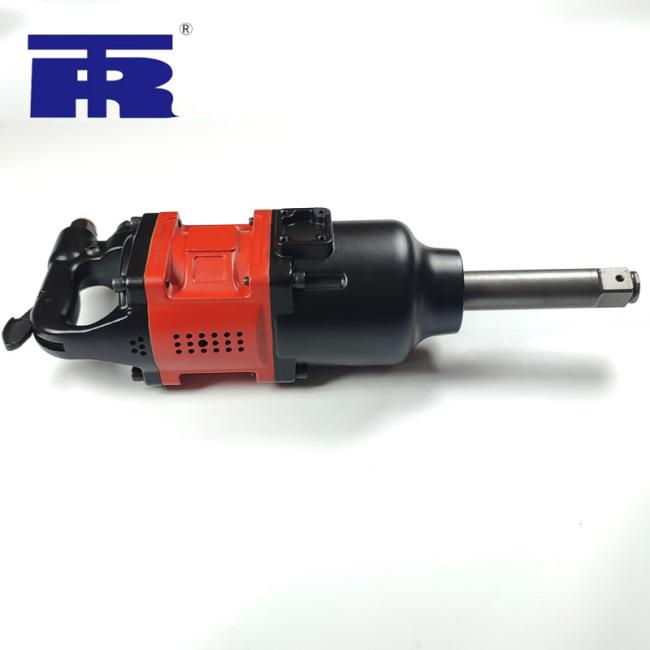

Pinless Hammer Lightweight 1 Inch Air Impact Wrench For Tire Changing 3000nm
Air lmpact Wrench parts China Manufacture 1 Inch Air Tools Impact Pneumatic Wrench
| Item | Square | Free speed (r.p.m) | Max torque (N.m) | Hammer mechanism | Air inlet | Anvil length | Bolt capacity | Air pressure | N.W |
| TR-736 | 1〃 | 4000 | 3000 | Twin hammer | 1/2” | 6" or 8" | M38 | 90 PSI | 12.4kg |
Operation method
1. Select the hexagonal socket according to the size of the pre tightening nut.
2. According to the requirements for tightening or loosening the nut, assemble a ratchet (use a right facing ratchet when tightening the nut, and a left facing ratchet when loosening the nut).
3. Insert the high-pressure and low-pressure rubber hoses with quick connectors into the connection between the wrench and the directional valve (high-pressure 1/4 ", low-pressure 3/8"), and after inserting them into place, rotate the outer sleeve of the quick connector by an angle to lock it tightly.
4. The reaction rod should rely on the corresponding hexagonal support sleeve or other places that can withstand the reaction force.
5. The size of the wrench connecting rod angle should be controlled within the calibrated angle range of the reaction rod.
6. When pressurizing, the air release valve should be rotated one turn to the left, opened, and closed after the air is completely discharged.
7. When manually pumping, rotate the reversing valve handle according to the extension and contraction of the hydraulic cylinder piston rod. When the handle is in the left position, the piston rod will extend, otherwise it will retract, and in the middle position, the pressure will be zero.
8. When pressing, the torque value can be obtained by observing the reading value (MPa) on the pressure gauge. The pressure value (MPa) at the required torque value (N.m) should be calculated in advance according to the formula given in Table 2.
9. After pre tightening, place the handle of the directional valve in the middle position to return its pressure to zero.
10. When removing the high and low pressure rubber hoses with quick connectors, the outer sleeve of the quick connector should be rotated by an angle first, so that its notch aligns with the limit pin and is pushed forward to pull out the connector
FAQ:
1.Q:Can you provide the samples to us?
A: yes, we can provide the sample to you in free, but the cost of the freight on your account.
2. Q:Can you do the order according to the customer requirement?
A:Yes, we can do the order according to your sample or drawings, OEM/ODM service provided.
3. Q:What is your delivery time?
A:Normally, it's 7 days if the goods are in stock. It will takes about 15-25days if the goods are not in stock, Mainly depends on the order quantity.
4.Q:What is your terms of payment?
A:Generally 30% value of goods as deposit, balance amount against the copy of the BL.
5. Q: How long is the warranty ?
A: 14 months since the container shipped except quick-wear parts.
