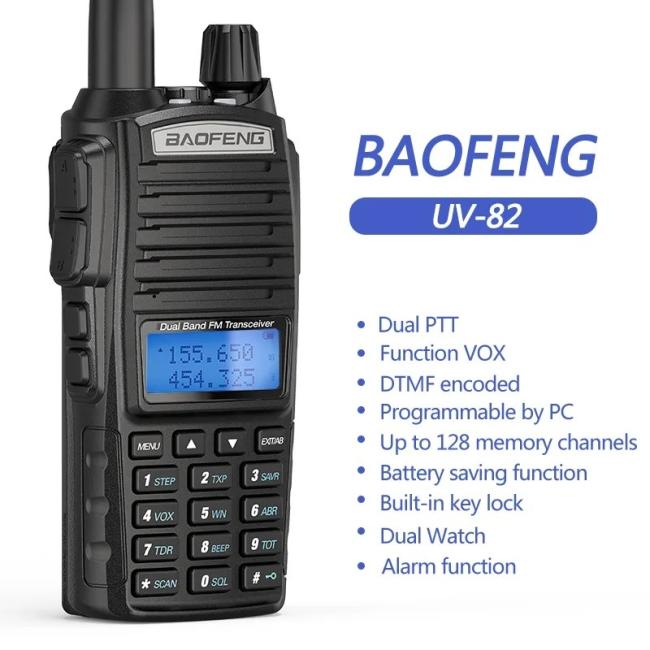

8W Dual Band Security Walkie Talkie , UV82 BAOFENG Lightweight Two Way Radio
Radio Walkie Talkie UV82 8W BAOFENG Dual Band 2 Way UV-82
Product Description

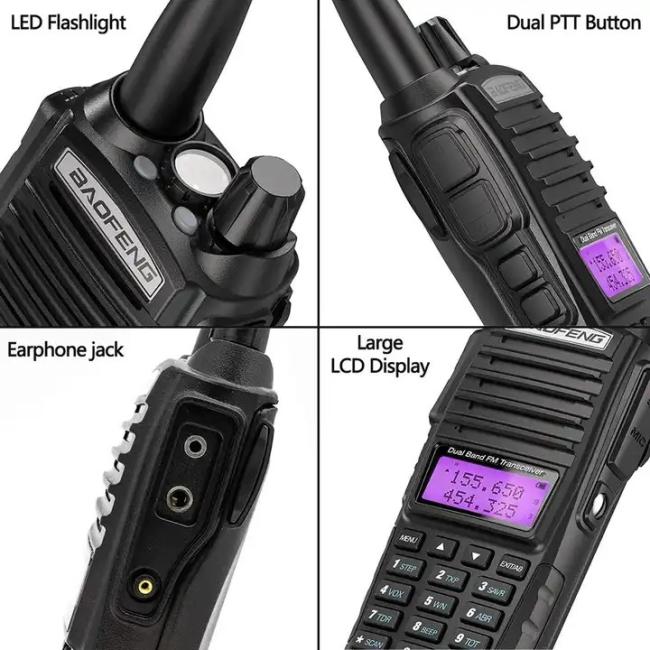

1. Large “LCD” display
2. DTMF encode
3. Li-ion batterypack with 1800mAh high capacity
4. FM Radio (65MHz-108MHz)
5. 105 DCS 50 CTCSS
6. Alarm function
7. VOX available
8. Frequency Step: 2.5/5/6.25/10/12.5/25 KHz
9. Battery Save
10. Time out timer
11. PC programmable
12. Flash light illumination
Product Specifications
| General | |
| Frequency Range | 65MHz-108MHz (commercial FM radio) |
| 136-174MHZ/400-480MHZ | |
| Memory Channel | 128 |
| Frequency Stability | 2.5ppm |
| Frequency Step | 2.5/5/6.25/10/12.5/20/25kHz |
| Antenna Impedance | 50Ω |
| Operating temperature | -20℃ to +60℃ |
| Operating Voltage | DC 7.4V |
| Battery Capacity | 2800mAh Li-ion Battery |
| Consumption in transmission | ≤1.4A |
| Mode of operation | Simple or semi-duplex |
| Dimension | 60x30x130mm |
| Weight | 245g(approximate) |
| Transmitter | |
| RF power | 5W / 1W |
| Type of modulation | FM |
| Emission class | 16kΦF3E / 11kΦF3E |
| Spurious emissions | ≤-60dB |
| Receiver | |
| Receiver sensitivity | -0.2μV(at 12 dB SINAD) |
| Intermodulation | 60dB |
| Audio output | 1000mV |
| Maximum Deviation | ≤5kHz/≤ 2.5kHz(W/N) |
Shenzhen TsdTech Technology Co., Limited Is a Factory Supplier, Import And Export Manufacturer.
OEM&ODM are available, welcome to contact us!
1. Logo printing/laser on the product
2. Customized color box, change outer content or box type or make a luxury box
3. Customized manual
4. Customized color
5. Custom a brand new function/apperance similar product
FAQ
Q. Are you a manufacturer or a trading company?
A: We are a one-stop professional manufacturer with BSCI, 8 production lines, own experienced R&D team, providing OEM & ODM service.
Q: What is the MOQ?
A: The general MOQ is 1000pcs, and we could support trial orders with small quantities to test the market.Sample is available for testing within one day
Q: Could I customize the logo on the product and packaging?
A: Yes, customized logo and packaging are available,and we also can support other OEM service,such as customized color,function etc....
Q: What are the lead time of the sample and bulk order?
A: Sample: 1~3 days if in stock.Bulk order: 15~35 working days.
Q: How do you control the quality?
A: We have a perfect QC system (IQC, IPQC, FQC, OQC team),14 tests on production lines, and 100% aging testing before packaging.
