16*2.5MM PTC Thermistor For Refrirator Relay 4R7 Ohm Start Chip
PTC Thermistor For Motor Starting 16*2.5mm 4R7 Constant Temperature PTC Heating Piece Ceramic Heating Piece For Starting![]()
![]()
![]()
![]()

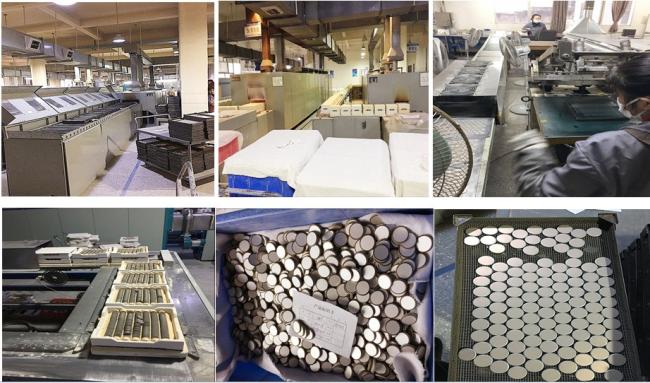

Factory strength:
Product Description:
The PTC Chip is a constant temperature heating piece made from high-grade ceramics. The Curie temperature of the PTC chip ranges from 50℃ to 310℃, with a tolerance of ±7℃. This PTC chip can withstand voltage from 20V to 220V for up to 60 seconds. The rated zero-power resistance of the chip ranges from 1Ω to 10000Ω. It is widely used in PTC starter chips, PTC start relay chips, and PTC heaters chips.
Features:
- Product Name: PTC Chip
- Withstand Voltage(Ub) : 20V-220V/60S
- Surface Temperature: (50℃-300℃)±10℃
- Curie Temperature: (50℃-310℃)±7℃
- Material: Ceramics
- Dimension: 5mm -20mm
- PTC Ceramic Heater
- PTC Heatrs
- PTC Ceramic Heater Chip
Technical Parameters:
| Parameter | Value |
|---|---|
| Name | PTC Constant Temperature Heating Piece |
| Withstand Voltage(Ub) | 20V-220V/60S |
| Rated Zero-power Resistance | 1Ω-10000Ω |
| Dimension | 5mm -20mm |
| Material | Ceramics |
| Curie Temperature | (50℃-310℃)±7℃ |
| Surface Temperature | (50℃-300℃)±10℃ |
Applications:
LK-PTC PTC Constant Temperature Heating Piece is a reliable and cost-effective solution for a variety of applications. It is made of high-quality ceramics, with a Curie Temperature range of (50℃-310℃)±7℃ and a Surface Temperature range of (50℃-300℃)±10℃. The PTC Constant Temperature Heating Piece is available in 5mm -20mm dimensions, making it a perfect fit for any application.
The PTC Constant Temperature Heating Piece is ideal for use in a variety of applications, such as power supplies, motor starters, and even home appliances. It is also commonly used in PTC heaters, PTC start relay chips, and other electronic components. The PTC Constant Temperature Heating Piece can help to reduce the amount of energy consumed and improve the efficiency of the system, while still providing reliable and safe performance.
LK-PTC PTC Constant Temperature Heating Piece is an excellent choice for those who are looking for a reliable and cost-effective solution for their applications. It is available in a variety of sizes and is built with high-quality materials for reliable and long-lasting performance. Its Curie Temperature range and Surface Temperature range make it suitable for a variety of applications and offer a reliable and cost-effective solution.
Customization:
LK-PTC provides a comprehensive customization service for PTC Start Relay Chip, PTC Ceramic Heater, and PTC Ceramic Heater Element. Our products feature model number 5mm-20mm, made of high-quality ceramics and can withstand voltages of 20V-220V/60S. The curie temperature is (50℃-310℃)±7℃, with dimensions of 5mm-20mm. The surface temperature is (50℃-300℃)±10℃.
Packing and Shipping:
PTC Chip will be packaged in a sealed plastic container, measuring 5” x 5” x 5”, to protect the product during shipment.
PTC Chip will be shipped using a reliable courier service, such as FedEx or UPS. Delivery times may vary depending on the destination, but typically takes 2-3 business days.
FAQ:
- Q1: What is the brand name of the PTC Chip?
- A1: The brand name of the PTC Chip is LK-PTC.
- Q2: What is the model number of the PTC Chip?
- A2: The model number of the PTC Chip is 5mm-20mm.
- Q3: Where is the PTC Chip from?
- A3: The PTC Chip is from China.
- Q4: What is the key feature of the PTC Chip?
- A4: The key feature of the PTC Chip is its fast response time and high temperature resistance.
- Q5: What is the application range of the PTC Chip?
- A5: The PTC Chip can be used in various industries, such as automotive, home appliance, industrial control and medical equipment.
