HU-X Series Japanese Radial Thermal Fuse Threaded 3A 250V 115(℃) Fuse
HU-X Series Screwed Type 2A 3A 250V Fuse Radial Temperature Fuse Ther Cutoff Thermal Fuse
Model number: HU0X,HU1X,HU2X,HU3X,HU4X,HU13X,HU5X,HU6X,HU7X.
Application: Electricity
Volume: Mini
Type: Screw type
Voltage characteristics: Low voltage
Fusing speed: FF
Executive standard: Japanese regulation
Automatic reset function: None
Voltage: AC250 (V)
Action temperature: ±2/3 (℃)
Temperature control range: 76-145 (℃)
●It is a fusible alay type thermal links corresponding to RoHS.
●It is excellent small in the thermosensing property.
●It is non-return type of thermal links. It means even if the ambient temperature falls after the thermal link operates but never re-connection.
The insulation case is used.
●46 substances of very high concern (SVHC) specified by the REACH rule is not used. (46 substances are published on December 15, 2010)
●Soldering heatproof is improved, and it is the best for the flow soldering.

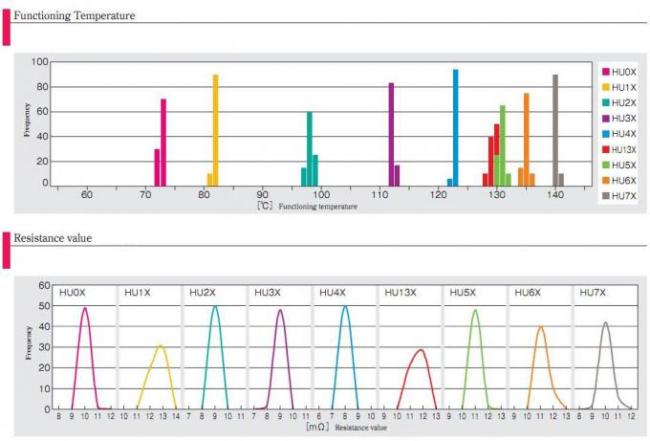

| Model | Rated Temperature Tf(℃) | Action Temperature(℃) | Rated Current (A) | Rated Voltage (V) | Holding Temperature Th(℃) |
Maximum temperature limit Tm(℃) |
| HU0X | 76 | 72±3 | 2.5 | AC250 | 50 | 200 |
| HU1X | 86 | 81±2 | 2.5 | AC250 | 60 | 200 |
| HU2X | 102 | 98±3 | 3.0 | AC250 | 75 | 200 |
| HU3X | 115 | 111±2 | 3.0 | AC250 | 95 | 200 |
| HU4X | 127 | 123±2 | 3.0 | AC250 | 100 | 200 |
| HU13X | 133 | 129±3 | 3.0 | AC250 | 100 | 200 |
| HU5X | 136 | 131±2 | 3.0 | AC250 | 100 | 200 |
| HU6X | 139 | 134±2 | 2.5 | AC250 | 110 | 200 |
| HU7X | 145 | 140±2 | 2.0 | AC250 | 110 | 200 |
