Carbon/Stainless Steel 50000 Litres Capacity Water Oil Fuel Tanker Transportation Semi Trailer With Safety Devices

Price Negotiable
Price: Negotiable
MOQ: 1 PIECE
Delivery Time: 14-30 Day
Brand: SINOTRUK
Product Description

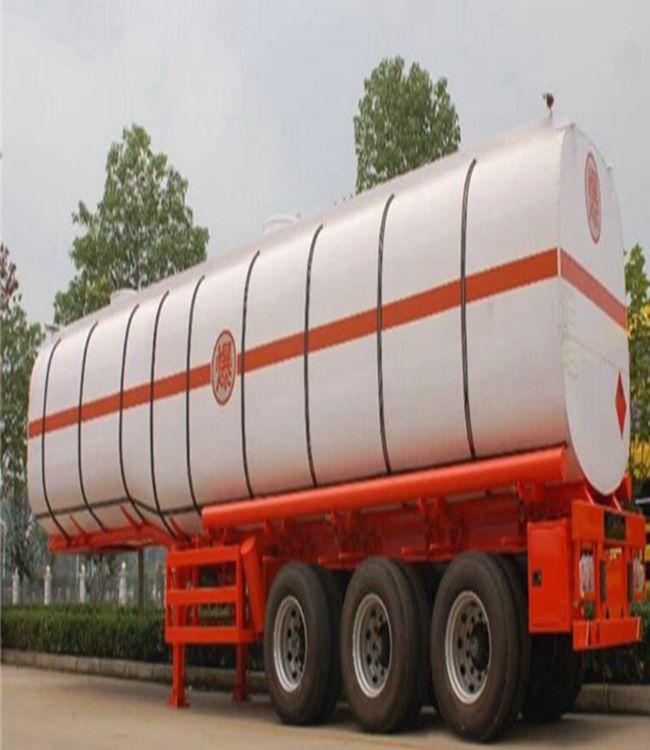

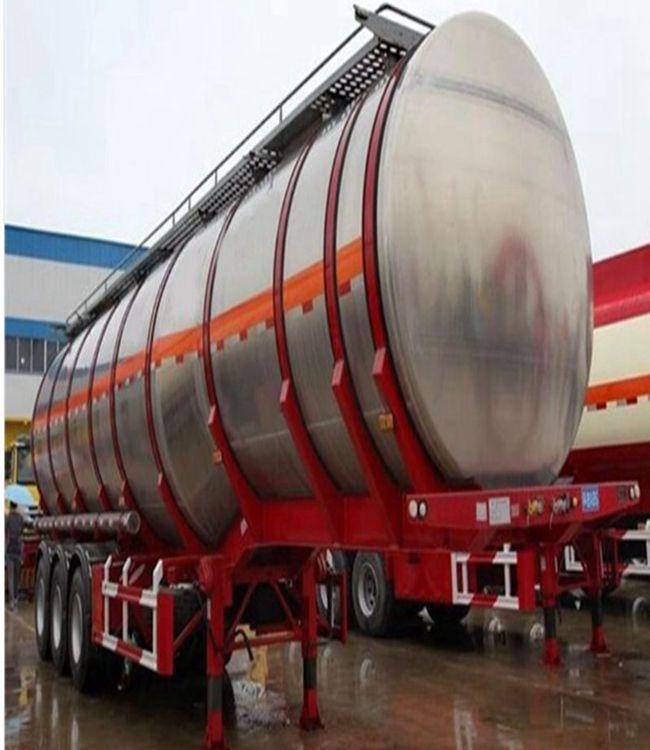

Carbon/Stainless Steel 50000 Litres Capacity Water Oil Fuel Tanker Transportation Semi Trailer With Safety Devices



Product Description



Tank trucks are described by their size or volume capacity. Large trucks typically have capacities ranging from 5,500 to 11,600 US gallons (20,800 to 43,900 L; 4,580 to 9,660 imp gal). Large tank trucks are used for example to transport gasoline, diesel and liquefied petroleum or natural gas to filling stations. They also transport a wide variety of liquid goods such as liquid sugar, molasses, milk, wine, juices, water and industrial chemicals. A tank truck, gas truck, fuel truck, or tanker truck or tanker, is a motor vehicle designed to carry liquids or gases on roads. The largest such vehicles are similar to railroad tank cars which are also designed to carry liquid loads. Many variants exist due to the wide variety of liquids that can be transported. Tank trucks tend to be large; they may be insulated or non-insulated; pressurized or non-pressurized; and designed for single or multiple loads. Some are semi-trailer trucks.



Product parameters
Shape
Optional ( Round or Suare or TV type )
Dimension
12000mmX2490mmX3990mm ( Exact size depends on the final design)
Tare weight
About 8000KGS-12800KGS
Total Volume(m3)
25m³-60 m³ (25000L-60000L )
Tanker Body Material
5mm or 6mm/ Q235 carbon steel
End Plate
5mm or 6mm /Q235 carbon steel
Manhole Cover
Cabon steel or Aluminum alloy API manhole cover, 500mm
Bottom Valve
Aluminum API Pneumatic Bottom Valve
Discharging Valve
Diameter is 3 or 4 inch
Compartments
Optional
Discharging Pipe
4" rubber hose, 2 pcs, 6m/each
Chassis
Main Beams
Weldding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
Axle
2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear
JOST (D200T)or FUWA BRAND 28T
King Pin
JOST 2.00 or 3.5 inch bolt-in king pin
Suspension
Mechanical suspension/Germany or America type /air suspension
Leaf Spring
90(W)mmX13(Thickness)mmX10 Layer or 100mmX12mmX12 /without
Pneumatic Braking System
WABCO RE 6 relay valve; Spring brake chamber(TKL brand); 2 pieces of 45L air tanks.
Rim
9.00-22.5/8.00-20/8.5-20 China Brand
Tire
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS
Optional
Water tanker system
Optional

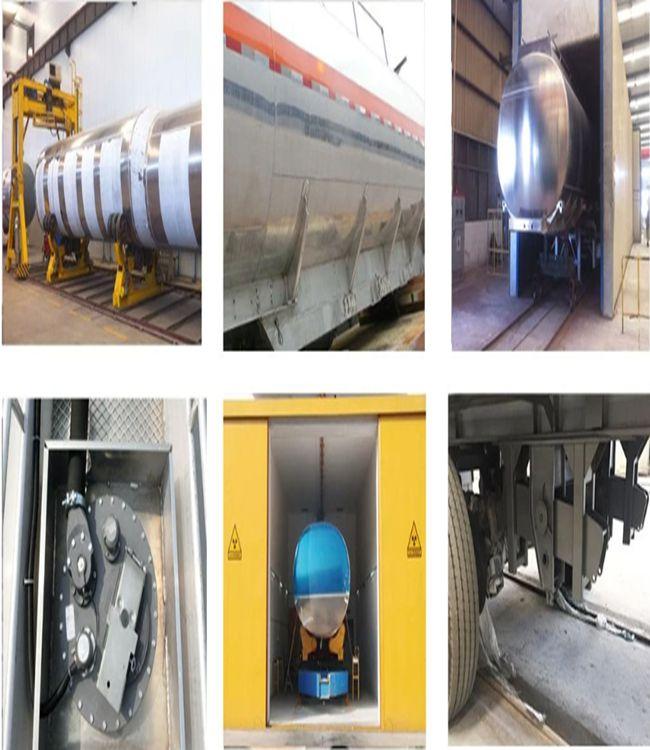

Produvt details
