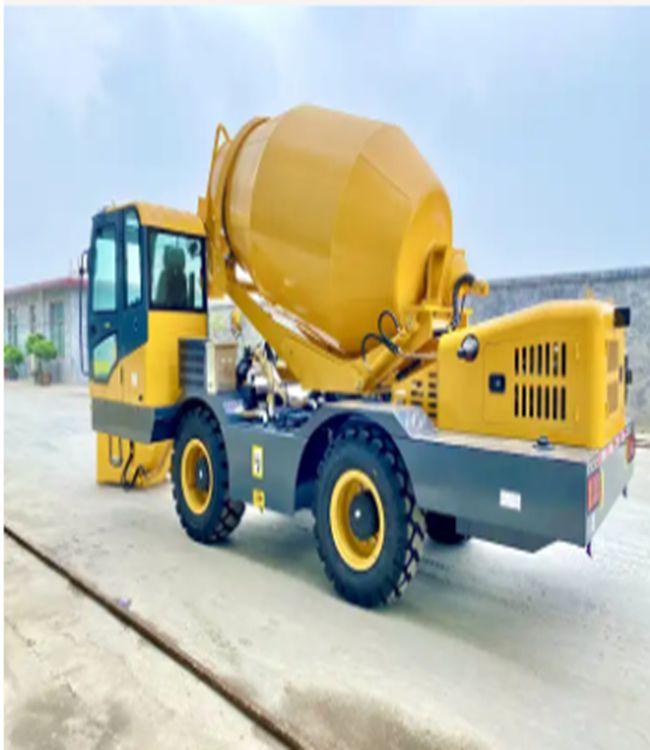

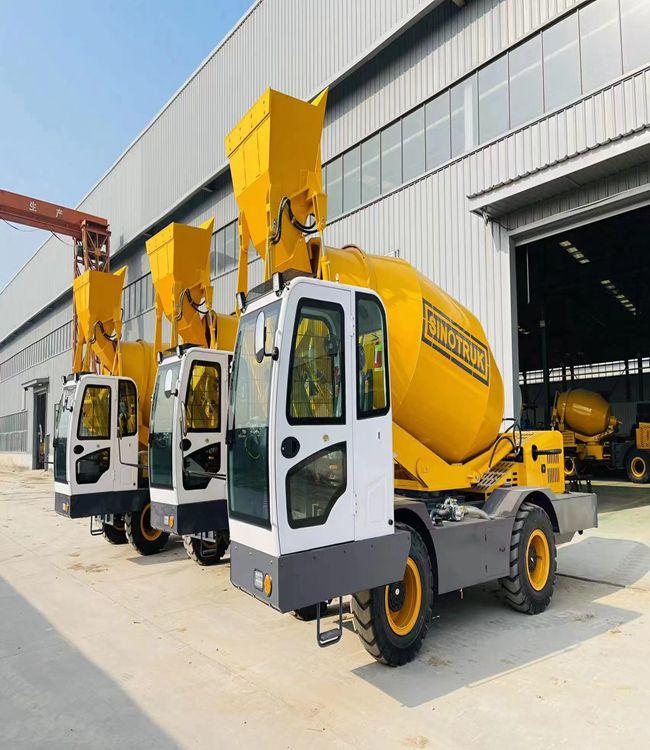

Mobile Cement Concrete Mixer Truck With Pump Small Mini Engine Roller 2.6 Cubic Meter Articulated For Construction
Small Mini Engine Roller 2.6 Cubic Meter Articulated Mobile Cement Concrete Mixer Truck With Pump For Construction
Product Description
The concrete output ability is 14 cube meters per hour. The outsize wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 5.3 meters only. with driving camera, automatic water feeding &metering system, hydraulic water suction pump, and air conditioner, etc.
The mixing drum can be slewed hydraulically through 270 degrees together for high discharge over 1.6m on the four sides of the vehicle. The drum can also be lifted up 16 degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.
The vehicle size is small, which is suitable for limited site and widely new in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output. High strength steel plate, which enhances the load capacity and high stability of vehicle.
The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.
| Name | Item | Specification | |||
| Truck | Transmission | Full Hydraulic | |||
| 4 WD | |||||
| Brake | Air Brake | ||||
| Chassis | Off-road | ||||
| Loader bucket | capacity | 0.6m3 | |||
| Control | Hydraulic | ||||
| Tilt angle | 30% | ||||
| Speed | High | 0-25KM/H | |||
| Low | 0-20KM/H | ||||
| Mini turning radius | 6.5M/R | ||||
| Tyre model | 16 /70-20 | ||||
| Engine | Type | Yuchai | |||
| Rated Power/RPM | 110KW/2200RPM 150HP |
||||
| Max.Torque/RPM | 460N.M/1400RPM | ||||
| Cylinder | 4 | ||||
| Starter | Electric | ||||
| Cooling type | water cooling | ||||
Maxing Drum |
Output capacity | 5.5M3 | |||
| Bank Angle | 16 ° | ||||
| Rotation Angle | 19-21R/min | ||||
| Chute | Swing Angle | ≥60° | |||
| Angle control | Hydraulic | ||||
| Size | Long:90cm | ||||
| Loader | Weighing model | computer control | |||
| Accuracy | Concrete Standard | C15.C20.C25 C30 | |||
| Cement | ≤±2%/time | ||||
| Relative Error | ≤±3%/time | ||||
| water | ≤±1%/time | ||||
| Additive | ≤±1%/time | ||||
| Admixture | ≤±2%/time | ||||
| Loader control | Hydraulic 4 way stick | ||||
| Hydraulic oil tank | 240L | ||||
| Water tank | 550L | ||||
| Over size | 8200*2700*3400mm | ||||
High strength steel plate, which enhances the load capacity and high stability of vehicle.
The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.
