Product Description

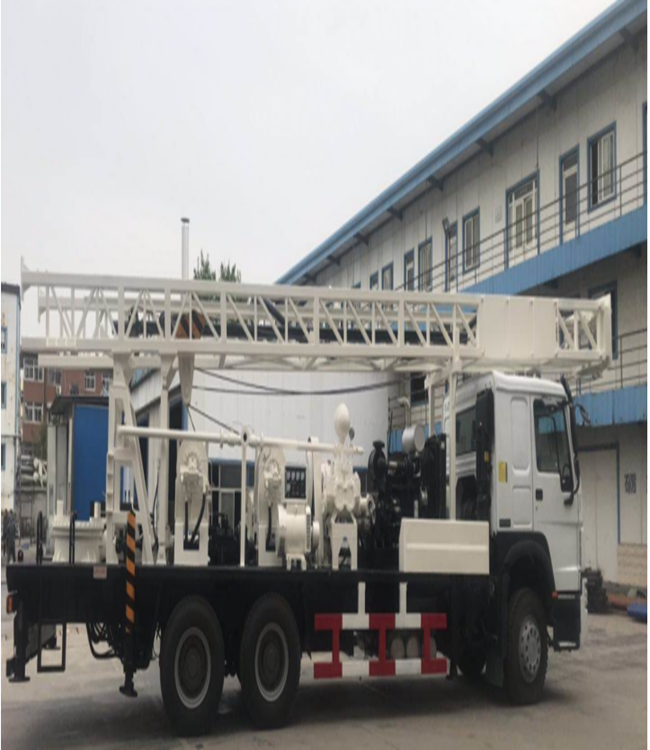

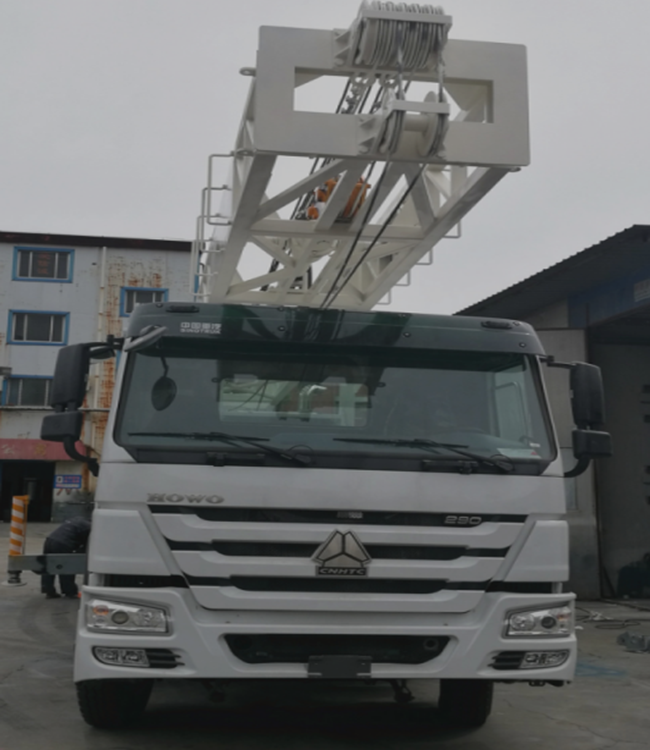

1 . The truck chassis adopts the special rig chassis of brand SINO-TRUK 8X4 and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, rotarytable, drilling tower, feed mechanism are set up on the chassis.
2 This rig is a rotary drilling rig with directional circulation. It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
3 This rig has very compact structure, the engine of chassis is adopted SINOTRUK 8x4 , diesel engine 336HP, 12.00R20
4 The drilling rig has independent diesel engine CUMMINS 6BTA-C180 , 132kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.
5 We can set up a 30kw generator (MF) which is convenient to illuminate or work at night.
6 There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
|
Drilling depth(M)
|
600 | ||
|
Drilling diameter(mm)
|
500 | ||
|
Speed of rotary table(r/min)
|
132; 15; 6; 43; 25; 14, 18(reverse) | ||
|
Torque of rotary table(KN.m)
|
7.4----52 | ||
|
lifting capacity of main winch(KN)
|
50 | ||
|
Maximum lifting capacity of main windlass(KN)
|
300 | ||
|
Single rope lifting capacity of assistant windlass(KN)
|
50 | ||
|
Maximum lifting capacity of assistant windlass(KN)
|
240 | ||
|
The lifting capacity of hook(KN)
|
320 | ||
|
Bearing capacity of drilling tower (KN)
|
360 | ||
|
The height of drilling tower (mm)
|
16232 | ||
| Drill pipe |
主杆Kelly bar(mm)
|
108×108×10500 or 7500 | |
|
钻杆Assistant pipe (mm)
|
Ф89×10×9000 or 6000 | ||
|
3NB-130 mud pump
|
Theoretical flow (L / min)
|
1000 | |
|
Rated pressure (Mpa)
|
5 | ||
|
Input power (kw)
|
90 | ||
|
Truck chassis |
Drive form
|
8×4 | |
|
Engine |
Model
|
SINOTRUK .WD61569 Euro II | |
| Rated power(KW r/min) | 247/2200 | ||
|
Horsepower
|
336HP | ||
|
Size (L*W*H)(mm)
|
11510*290*2800 | ||
| Drilling diesel engine |
model
|
Cummins 6BTA5.9-C180-Ⅱ | |
|
Rated power(kw)
|
132 | ||
|
Max - torque(N.m)
|
750 | ||
| Electric generator |
Model
|
MF | |
|
Rated power (kw)
|
30 | ||
|
Rated voltage(v)
|
380 | ||
|
Rated current(A)
|
27 | ||
|
Speed (r/min)
|
1500 | ||
|
Frequency(Hz)
|
75 | ||
|
The highest speed(Km/h)
|
75 | ||
|
Weight (kg)
|
32000 | ||
|
Transport size(L*W*H)(mm)
|
13500×2500×4200 | ||
