| Dimension(L×W ×H)(unloaded)(mm) | 9500×2500×3300 10000x2500x3300 | |
| Tank Volume (m3) | 20m³ | |
| Approaching angle/Departure angle(°) | 16/15 | |
| Overhang(front/rear) (mm) | 1500/2325 | |
| Wheel base (mm) | 4325+1350 4600+1350 | |
| Max speed(km/h) | 90 | |
| Curb weight(kg) | 10870 | |
| Loading Weight(kg) | 25000 | |
| Engine (Steyr technology, made in China) |
Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Power, max(kw/rpm) | 247/2200(336HP) | |
| Emission | EURO 2 | |
| Fuel tanker capacity (L) | 400 | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Front axle | Steering with double T-cross section beam HF7 Drum | |
| Rear axle | ST16 Pressed axle housing, central double reduction with differential locks between axles and wheels ; |
|
| Tyre | 295/80R22.5,with one spare tire | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, one sleeper, with A/C. | |
Stainless Steel Tank SINOTRUK Round Shape 6x4 8x4 LHD Milk Transport Truck With Sprinkler Equipment
Price:
Negotiable
MOQ:
1 PIECE
Delivery Time:
15-30 Day
Brand:
SINOTRUK
Product Description

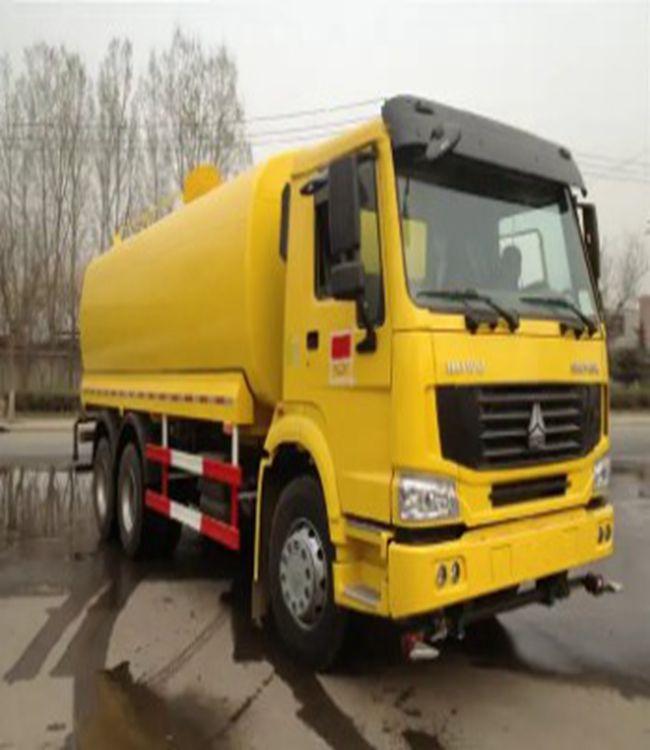

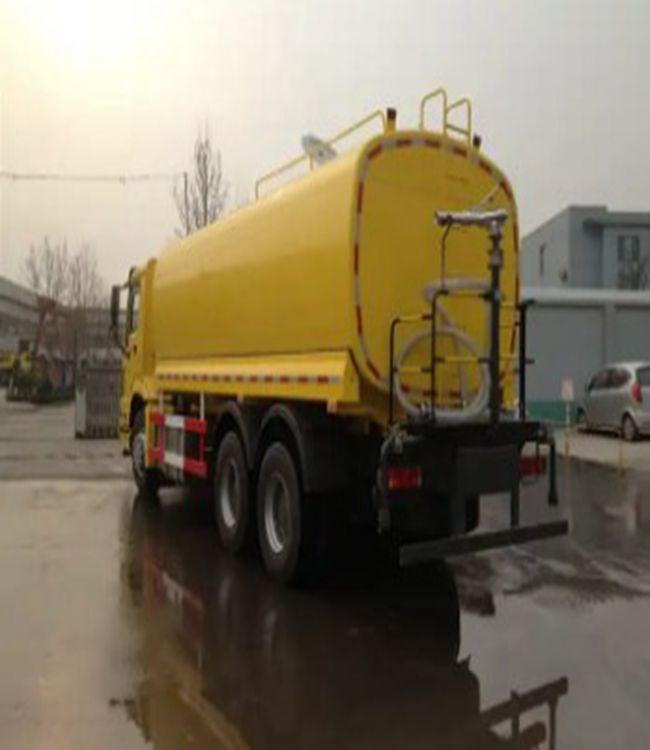

Stainless Steel Tank Round Shape 6x4 8x4 Water Tank Trucks LHD/RHD Milk Transport Truck With Sprinkler Equipment
Product Description
Water Tanker Trucks are also known as water truck, green spraying vehicle, water sprinkler truck, water spray trucks, multi-purpose sprinklers, landscaping sprinkler truck, water tankers, water bowser trucks, water delivery trucks, water transport trucks and water tanker trucks, etc.
The sprinkler water tank truck is suitable for all kinds of road surface washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude building flushing.
It has the functions of watering, dusting, high and low level spraying, pesticide spraying, guardrail washing, etc.
It also has functions such as water transport, control smog, spray disinfectant, drainage and emergency fire fighting .
Produvt details
--- The overflow pipe inside the tank is used to discharge water, can prevent the damage due to long-term overflow. All very high production technology .
---Both sides of the tank body are formed by galvanized cold plate roller edges, with light weight, good corrosion resistance, smooth and beautiful appearance.
