FAW JAC Sinotruk HOWO Shacman Asphalt Distributor Truck 6 Tyre 10 Tyre Automatic Road Spraying Truck Trailer
FAW JAC Sinotruk HOWO Shacman 6 Tyre 10 Tyre Automatic Asphalt Road Spraying Truck Trailer Asphalt Distributor Truck
Product Description:
Bitumen Asphalt Paver Equipment is an intelligent high technology product, it’s a professionally spraying equipment of emulsified asphalt, diluted asphalt, hot asphalt, heavy traffic asphalt and high viscosity modified asphalt.
Application:
Bitumen Asphalt Paver Equipment is widely used in highway construction and highway maintenance engineering. It can be used for the different pavements of upper and lower sealing layer, prime coat, waterproof layer, adhesive layer, asphalt surface treatment, bituminous penetration pavement, and fog sealing layer and other construction. It also can be used for transportation of liquid asphalt or other heavy oils.
Product parameters:
| General Description | ||||
| Overall Dimension(mm) | 8590*2480*2840 | Driving type | 4*2, Left hand drive | |
| Gross weight(kg) | 15800 | Number of Leaf Springs | 7/9+6,8/10+8 | |
| Curb weight(kg) | 9200 | Rated loading capacity kg | 6405 | |
| Wheel base (mm) | 4500 | Axle number | 2 | |
| Approaching/Departure Angle(°) | 20/10(°) | F/R Axle load(kg) | 6000/10000 | |
| Passengers in cab | 3 | Maximum speed(km/h) | 98(Km/h) | |
| Number of Tyres | 6 (1 spare piece) | Tyre type | 10.00-20 | |
| Front/Rear suspension(mm) | 1430/2660 | Front/Rear track base (mm) | 1920/ 1820 | |
| Transmission | 6speed forward with 2 reverse, manual | Fuel type | Diesel oil | |
| Engine parameters | ||||
| Brand | Commins | Model | B170-33 | |
| Displacement (L) | 5.9L | Emission Standard | EURO III | |
| Maximum power output | 125 KW | Maximum horsepower | 170HP | |
| Up-parts Description | ||||
| Asphalt tank Outline Dimension (mm) | 4350*2300*1500 | Asphalt tank Inner Dimension(mm) | 4140*2090*1290 | |
| Asphalt Capacity(L) | 8000 | Insulating layer thickness (mm) | 105 | |
| Hydraulic pump | CBQ950 | Proportional valve | Taiwan EFBG-03-160-HF | |
| Asphalt pump | CBQ550-L | Hydraulic motor for asphalt pump | 05-110-BD31 | |
| Heating System | Heat conduction oil auto-thermophilic burner G20 imported from Italy |
Heat-transfer oil pump | China famous brand | |
| Control System |
SIEMENS CLW-48-01 r |
Generator | 5.5 KW gasoline engine generator | |
| Number of nozzle | 48 | Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt |
|
| Spray width(m) | 4.5-6m | Spray amount(L/m2) | 0.2-3 | |

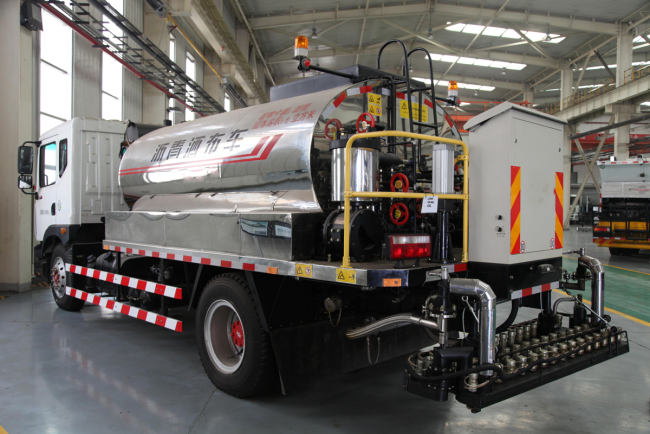

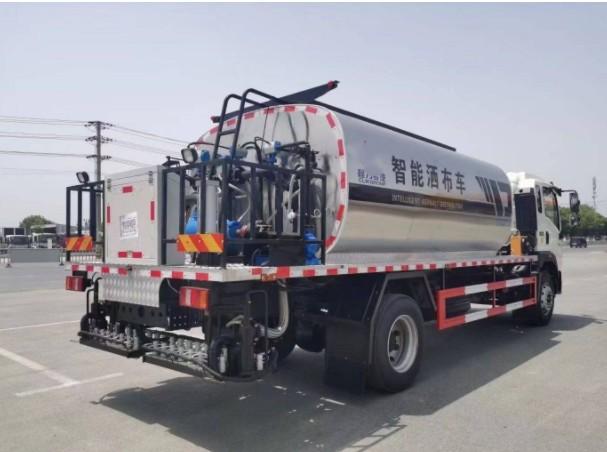

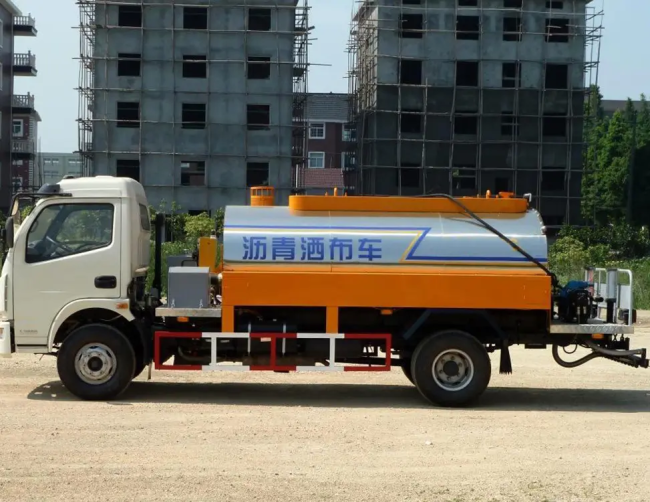

Product Show:
