Used Light Duty Truck Foton 4x2 5T Second Hand Trucks Fence Cargo Truck
Used Light Duty Truck Foton 4x2 5T Second Hand Trucks Fence Cargo Truck
Product Highlights
The Foton 4X2 rigid light duty cargo trucks have strong power:The engine is mature, powerful and low niose.
According to the user's actual requirements,like load weight and speed,matches engines,gesrbox,rear axle ratio,and different types of tire,and fuel saving could reach 10-20%.
The Foton 4X2 rigid light duty cargo trucks are with strong loading capacity both in 3T and 3 to 5 tons light duty cargo trucks: the loading capacity of the front and rear axles is one ton larger than other products in the industry, the front axle matches 2T/2.4T/2.7T/3.2T/3.6T,
the rear axle matches 3.5T/4.2T/7.2T/8T/10.5T.
Brief Introduction:
| Basic configuration | |
| Type | Foton 5T cargo truck |
| Drive form | 4×2 |
| Steering wheel position | Left hand drive |
| Vehicle model |
BJ1065VDJD6-F1 |
| Vehicle size and bodywork parameters | |
| Wheelbase (mm) | 3360 |
|
Overall Dimension L*W*H(mm) |
5995X2075X2315 |
| Cargo Box Size(mm) | 4170X1960X400 |
| Cargo board thickness (mm) |
Floor 3mm, side 1.5mm
|
| Vehicle Parameters | |
| Curb weight(kg) | 2200 |
| GVW(kg) | 6000 |
| Maximum speed (km/h) | 95 |
| Engine | |
| Engine model |
BJ493ZLQV1 |
| Displacement (L) | 2.771 |
| Maximum power (kw/ps/rpm) |
76KW/3600 |
| Maximum output torque (Nm/rpm) | 225/1900-2200 |
| Engine Brand | Foton |
| Emission standard | Euro Ⅲ |
| Clutch | |
| Clutch type | Push |
| Friction plate size | φ260×φ160 |
| Gearbox | |
| Gearbox model |
5G32 |
| Gearbox brand | Wanlima Transmission |
| Brake | |
| Service brake | Drum hydraulic brake |
| Parking brake | Central drum brake |
| Auxiliary brake | Exhaust brake |
| Fuel type |
Diesel
|
|
Front Axle
|
2.4T (drum) |
|
Rear Axle
|
4.5T(drum) |
|
Speed ratio
|
5.375 |
|
Tyre
|
7.00R16, 7Tires |

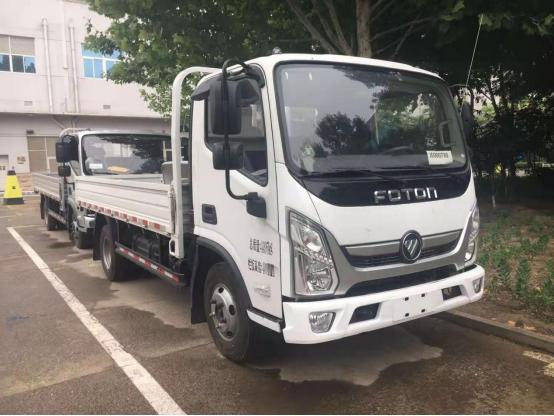

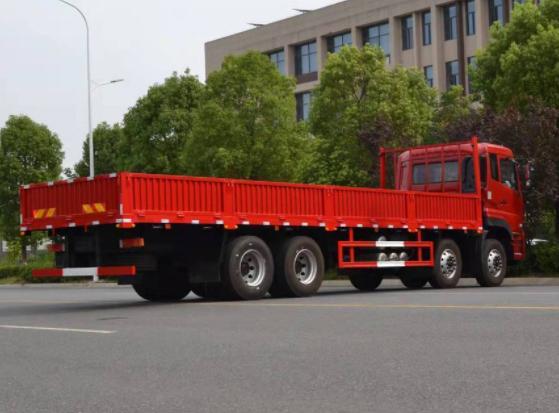

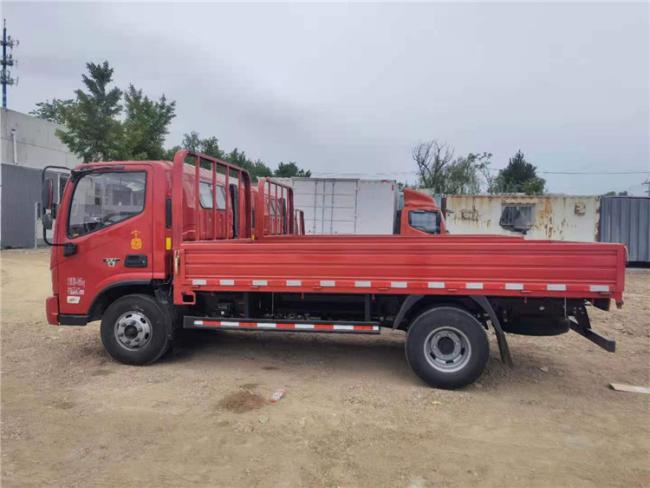

Product Show
