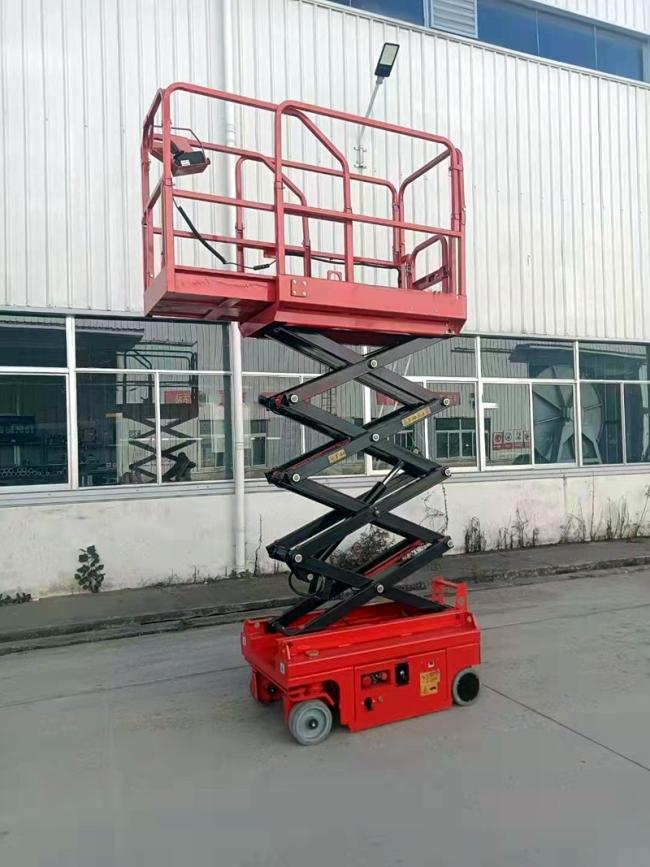

SHIM0807DC 8m 230kg New Energy Hydraulic Electric Mobile Scissor Lift

Item

Unit

Parameter

Dimension of machine Length (without ladder)

mm

2477 (2267)

Dimension of machine Width

mm

1190

Dimension of machine Height (platform folded)

mm

2480 (1930)

Wheelbase

mm

1877

Wheel track

mm

1043

Min. ground clearance (Pit protector ascending/descending)

mm

100/20

Dimension of working platform Length

mm

2277

Dimension of working platform Width

mm

1120

Dimension of working platform Height

mm

1263

Extension length of the Dimension of working platform auxiliary platform

mm

900

Centroid position of machine Horizontal distance to front shaft

mm

950

Centroid position of machine Height of centroid

mm

663

Total mass of machine

kg

2900

Max. height of platform

m

10

Min. height of platform

m

1.34

Max. working height

m

12

Min. turning radius (inner wheel/outer wheel)

m

0/2.3

Rated load

kg

320

Payload of extended platform

kg

115

Lifting time

s

50-75

Lowering time

s

43-65

Drive speed(lowered)

km/h

3.2

Drive speed(elevated)

km/h

0.8

Max. gradeability

%

25

Tilt warning angle (side/forward and backward)

°

1.5/3

Lifting / traveling motor Model

-

-

Lifting / traveling motor Rated power

kW

3.3

Lifting / traveling motor Manufacturer

-

-

Battery Model

-

T125/3-EV-225

Battery Voltage

v

24

Battery Capacity

Ah

240

Battery Manufacturer

-

Trojan/Leoch

Tire models

-

Traceless and solid /381×127
