FOTON Lorry Truck 4×2 110hp 4 tire Left Hand Gasoline Euro Ⅳ Single Cab Flatbed Mini Truck
Price:
Negotiation
MOQ:
1 Piece
Delivery Time:
Full Payment 15-30 Work Days
Brand:
FOTON
Product Description
FOTON Lorry Truck 4×2 110hp 4 Tire Left Hand Gasoline Euro Ⅳ Single Cab Flatbed Mini Truck
Product Parameters
| Vehicle model | BJ1036V5JV5-A1 | |
| Cabin | Left hand-single row-1620 | |
Whole vehicle main dimensions |
Overall dimensions (L×W×H)mm | Chassis: 4680×1600×1855 Tablet: 4880×1650×1925 Van: 4945×1735×2420 |
| Driving type | 4×2 | |
| Wheel base(mm) | 3070 | |
| Wheel track (front/rear)mm | 1338/1375 | |
| Weight data | Chassis weight (kg) | Chassis 960/flat 1206/van 1320 |
| Persons in cab | Flatbed 1209/2; Van 1095/2 | |
| Gross vehicle weight(kg) | Chassis 2550 / Flat 2545 / Van 2545 | |
| Whole vehicle main performance | Max. speed(km/h) | 115 |
| Engine | Model | DAM15R |
| Fuel form | Gasoline | |
| Emission Standard | Euro Ⅳ | |
| Displacement(L) | 1.498 | |
| Rated Powe[kw/HP] | 82 | |
| Max torque [N•m(r/min)] | 142 | |
| Gearbox | Model | T15R |
| Clutch | Type | φ188×φ130,Single piece dry diaphragm spring |
| Front axle | Type | 1.5T |
| Rear axle | Type/Main reducetion ratio | 2.5T/5.37 |
| Suspension | Front suspension/Leaf spring number | McPherson independent suspension |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring / 5 | |
| Steering gear | Rack and pinion type | |
| Braking system | Service brake | Front disc and rear drum hydraulic brake |
| Parking brake | Wheel side hand brake | |
| Auxiliary brake | Vacuum assisted | |
| Wheels and tyre size | 175R14 | |
| Fuel tank (L) | 60L | |
| Basic equipment | No airbag/no power take-off/basic speed ratio of front disc and rear drum/no flip/no shroud/no assisted driving/no cargo box/no air conditioner/tubeless tires (metric) 175R14/manual doors and windows and rearview mirror /No driving recorder/Front stabilizer bar/Retractable machine/Load sensing proportional valve/Mechanical steering/Normal knitted seat | |
| Optional configuration | Manual air conditioner, shroud | |
| cargo box | Tablet 2800×1560×360 Van 2800×1560×1570 |
|

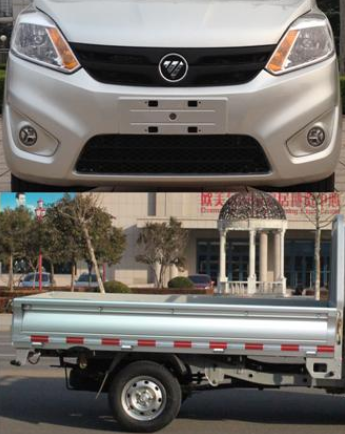

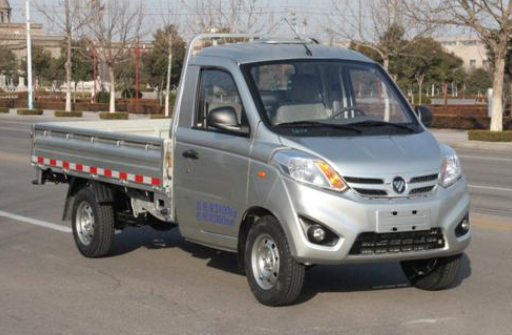

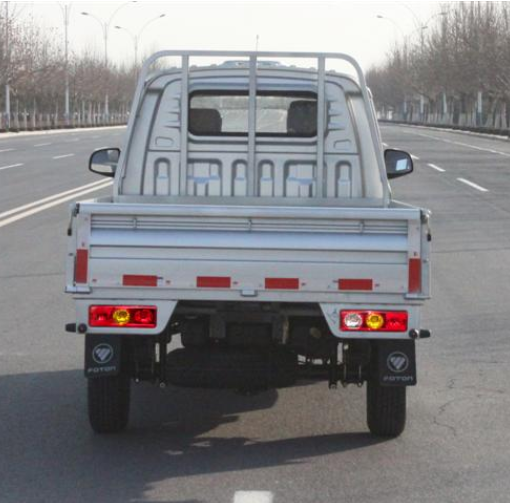

Photo Shows
