FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
25 Work Day
Brand:
FOTON
Product Description
FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck
Performance Characteristics:
1.Comfortable ride:Driver-centric design concept
2.Strong and environmentally friendly
3.Cabin material, durable material variety (1) iron corrugated, (2) color steel plate, (3) aluminum plate, (4) aluminum alloy corrugated, (5) foam insulation
4.Cabin shape, multi-side door opening Wide range of applications
Parameter:
| Vehicle model | BJ1065VDJD6-F1 | |
| Cabin | Left hand-single row-1880 | |
| Whole vehicle main dimensions | Dimensions (L×W×H)mm | 5965×1960×2225 5995×2075×2315 |
| Driving type | 4×2 | |
| Wheel base(mm) | 3360 | |
| Wheel track (front/rear)mm | 1590/1485 | |
| Weight data | Chassis weight (kg) | 2200 /2600 |
| Persons in cab (persons) | 3 | |
| Gross vehicle weight(kg) | 6000 | |
| Whole vehicle main performance | Max. speed(km/h) | 100 |
| Engine | Model | BJ493ZLQV1 |
| Fuel form | Diesel | |
| Emission | Euro III | |
| Displacement(L) | 2.771 | |
| Rated Powe[kw/HP] | 76 | |
| Max torque [N•m(r/min)] | 225 | |
| Gearbox | Model | 5G32 |
| Clutch | Type | φ260×φ160mm φ260×φ160mm diaphragm spring clutch |
| Front axle | Type | 2.4T |
| Rear axle | Type/Main reducetion ratio | 4.5T/5.375 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring / 3 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring /5+2 | |
| Steering gear | Model | Recirculating ball type, φ80 |
| Braking system | Service brake | Drum brake |
| Parking brake | Cut-off brakes | |
| Auxiliary brake | Exhaust brake | |
| Wheels and tyre size | 7.00R16,(6+1) | |
| Fuel tank (L) | 120L | |

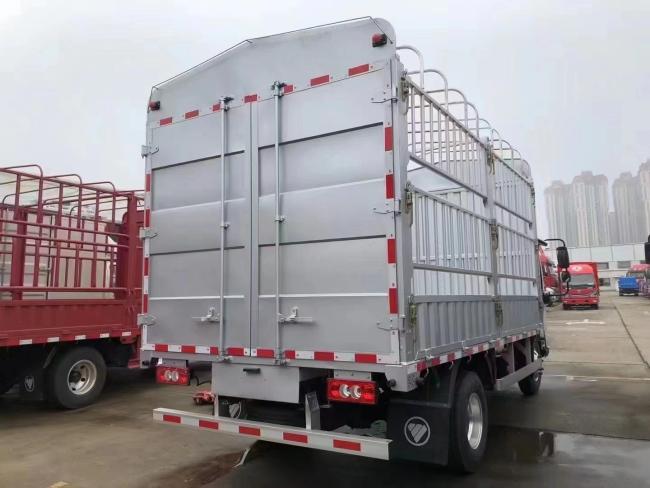

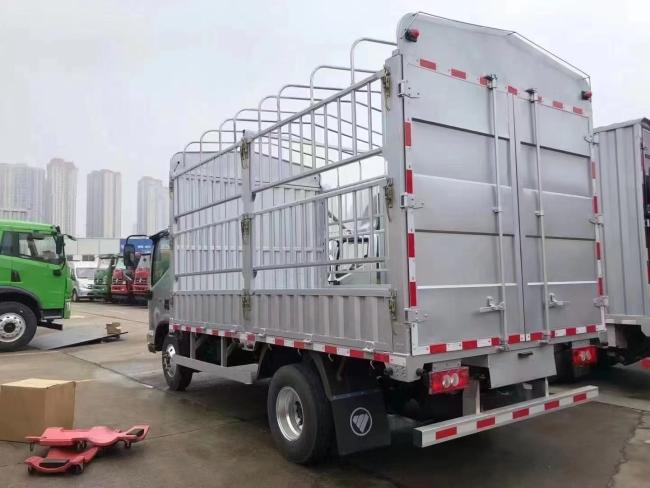

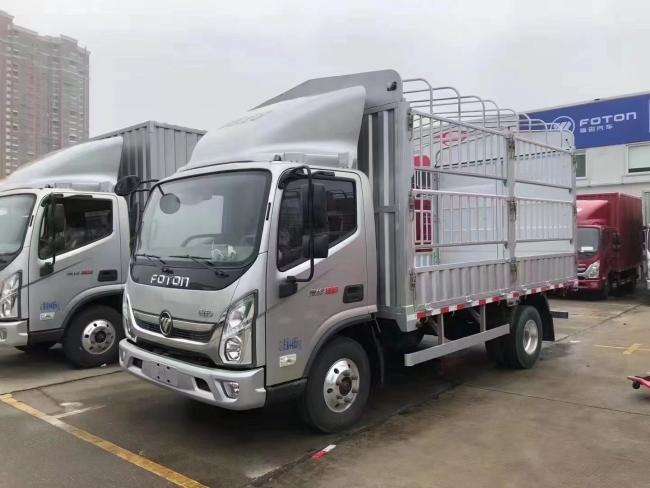

Product Show:
