Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation
Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation
Product Advantages
Foton has a global high-standard diesel engine production base, has conducted in-depth cooperation with internationally renowned companies, won the trust of many engineering companies around the world, and developed into a long-term partner. Foton Motor became the first commercial vehicle company in China and the second in the world with a sales volume exceeding 10 million units.
On the basis of satisfying the stylish appearance and the comfort of a car, it is matched with Foton Cummins and Okon Power to meet the needs of work and family cars.
- Commercial version: Equipped with the original power of Foton Cummins, strengthen the power output, meet the needs of field work, and adapt to the needs of various working conditions such as freight operations, engineering services, mining vehicles, and rural operations.
- Passenger version: matching Okang power, on the basis of meeting the power demand, fully enjoy the comfortable life enjoyment brought by entertainment, safety and quiet power.
Product Parameters
| Vehicle model | BJ1128VGJFD-AC1 | |
| Cabin | Left hand-single row | |
| Whole vehicle main dimensions | Dimensions (L×W×H)mm | Chassis:6885×2300×2425 Flat:6955×2300×2425 |
| Driving type | 4×2 | |
| Wheel base(mm) | 3800 | |
| Wheel track (front/rear)mm | 1705/1795 | |
| Weight data | Chassis weight (kg) | 3300 |
| Persons in cab (persons) | 3 | |
| Gross vehicle weight(kg) | 12000 | |
| Whole vehicle main performance | Max. speed(km/h) | 110 |
| Engine | Model | F3.8s3141 |
| Fuel form | Diesel |
|
| Emission | Euro2 | |
| Displacement(L) | 3.76 | |
| Rated Powe[kw/HP] | 105 | |
| Max torque [N•m(r/min)] | 450 | |
| Gearbox | Model | 8JS75TC |
| Clutch | Type | φ350mm diaphragm spring clutch |
| Front axle | Type | 3.6T |
| Rear axle | Type/Main reducetion ratio | 7.2T/5.286 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring/9 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring /8+6 | |
| Steering gear | Model | Recirculating ball steerer |
| braking system | Service brake | Drum brake |
| Parking brake | Cut-off brakes | |
| Auxiliary brake | Exhaust brake | |
| Wheels and tyre size | 8.25R20 | |
| Fuel tank (L) | 200L | |
| Basic equipment | Manual windows and mirrors,MP3,ABS,EBD/EBL | |
| Optional configuration | Manual air conditioner, flat cargo box | |
| Five-door flat plate (pattern bottom plate + corrugated edge plate),5140×2300×550 | ||

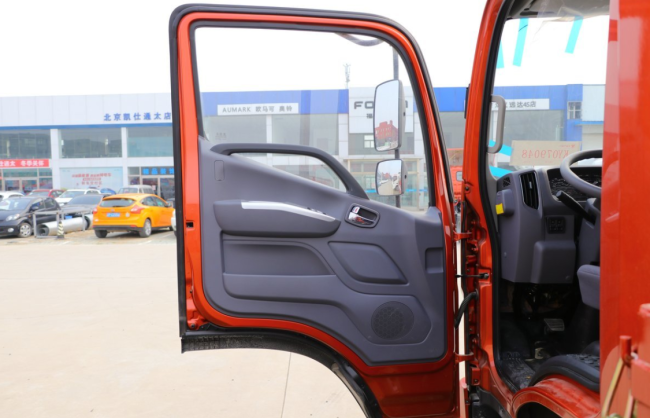

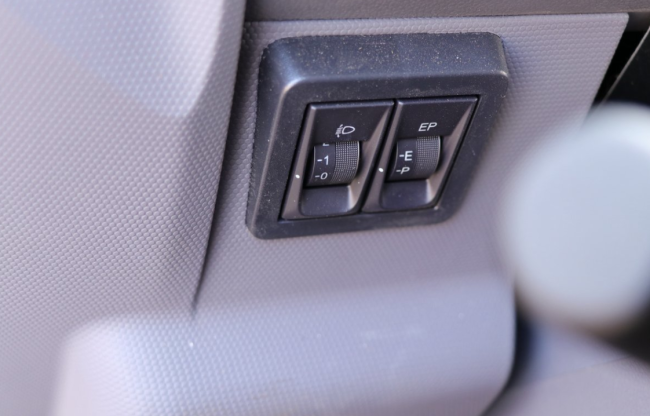

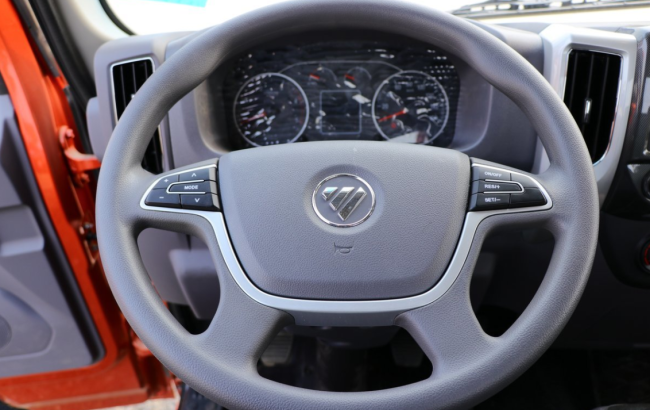

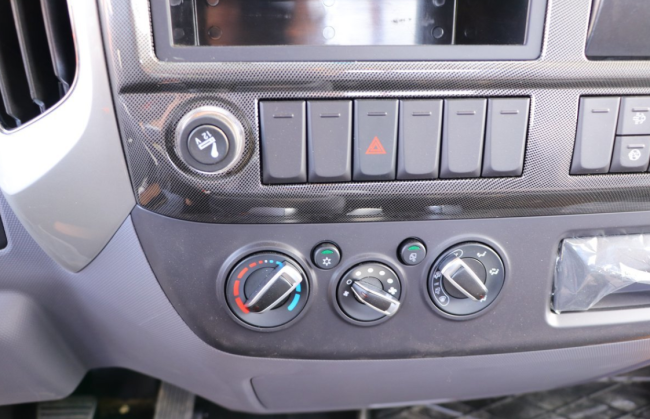

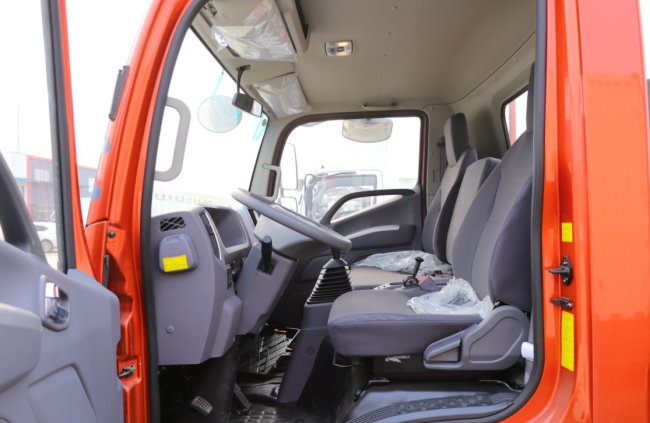

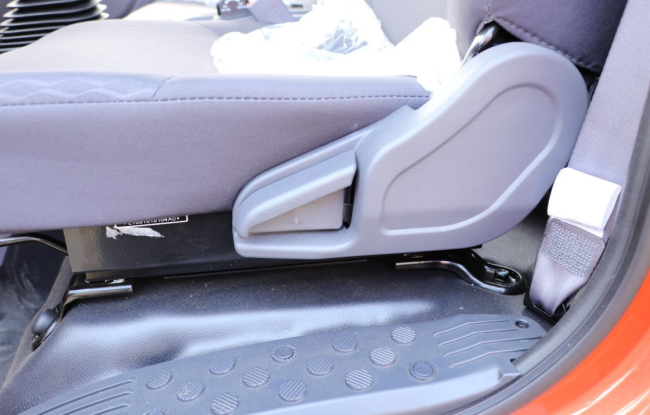

Photo Shows
