XCMG 6*4 Mining Dump Truck 50 Ton NXG5480D3T Heavy Dump Truck
Price:
Negotiation
MOQ:
1 Piece
Delivery Time:
Full Payment 15-30 Work Days
Brand:
XCMG
Product Description
XCMG 6*4 Mining Dump Truck 50 Ton NXG5480D3T Heavy Dump Truck
Product Parameters
| Vehicle model | NXG5480D3T | |
| Mass parameter | GVW | 17000kg |
| Kerb axle load | 5667kg | |
| 11333kg | ||
| GCW | 47000kg | |
| Max axle load | 11000kg | |
| 36000kg | ||
| Performance | Drive form | 6×4 |
| Max. speed | 59km/h | |
| Min. turning diameter | 9.4m | |
| Grade ability | 42% | |
| Fuel tank | 300L | |
| Dimensions | Overall dimensions | 8755x2600x3650mm |
| Wheelbase | 4000+1400 | |
| Wheel track | 2025mm | |
| 1868mm | ||
| Min.Clearance | 258mm | |
| Approach angle | 23° | |
| Departure angle | 36° | |
| Front overhang | 1460mm | |
| Rear overhang | 1895mm | |
| Cargo size | 5800×2400×1500 | |
| Cab | Model | 2.5m Right dislocation cab |
| Passengers | 1 | |
| Engine | Model | WP10.380E32 |
| Displacement | 9.726L | |
| Output power | 280kW/(r/min) | |
| Max. torque speed | 1460N·m/(r/min) | |
| Clutch | Model | Φ430 |
| Pull type diaphragm spring clutch | ||
| Operation | Hydraulic manual | |
| Transmission | Model | 7JSD180A+Retarder |
| PTO | QH50 | |
| Operation | Flexible shaft | |
| Forward ratio | 9.14/6.70/4.85/3.60/2.65/1.61/1 | |
| Reverse ratio | 8.51 | |
| Driven axle | Model | 16T HANDE |
| Main reducer ratio | 8.88 | |
| Brake type | Drum | |
| Differential lock | Inter-axle differential lock | |
| Front axle | Model | 9.5T HANDE |
| Brake type | Drum | |
| Wheel | Rim | 8.5V-20 |
| Tire | 12.00R20 | |
| Frame | Model | Groove straight beam |
| HxW-t | 320mm | |
| Frame Width | 865mm | |
| Suspension | Front | Leaf spring |
| 10 |

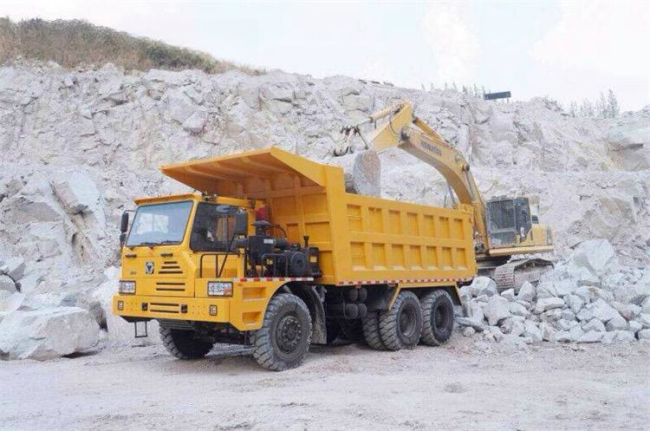

Photo Show
