Wholesale Aluminum Alloy / Carbon Steel Diesel Fuel Tanker Trailer 40000 Liters
40000 Liters Diesel Aluminum Carbon Steel Fuel Tanker Trailer
Advantages of Fuel Tanker Trailer :
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
6. The waved board reduces the impact of the liquid on the tanker.
7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.
| Type | Fuel tanker trailer |
| Wheelbase | 7,500mm+1,310mm+1,310mm |
| Dimension | 9500-13000*2500*3900mm ( can be customized ) |
| Payload | 28T - 70tons |
| Volume | 28000liter - 70000liter |
| Compartments | 1-9 |
| Tanker body | 5mm or 6mm/Carbon steel plate/ Aluminum alloy |
| Manhole | Diameter 500mm, 1-9 pieces with vent valve |
| Discharge vale | 4" API Adaptor Valve or 3" Spherical Valve |
| Bottom valve | 3", 4" Contral by Pneumatic Block |
| Handrail | Manual, Pneumatic |
| Bottom Loading (Optional) | Overfilling, Recovery system |
| Walkway | Aluminum |
| Discharging hose | Rubber tube, 2 pieces, 6 m each |
| Main Beam | Q345 Carbon steel material |
| Axles | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles |
| Suspenssion | Mechanical, Air, Bogie |
| Landing Leg | JOST E100 |
| Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve |
| Emergency relay valve | Wabco relay valve |
| Tire | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand |
| King Pin | JOST 2" or 3.5 " Bolting Type |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Fire extinguisher | 2 units per trailer |
| Handrail | 800mm height, pneumatic controlling |

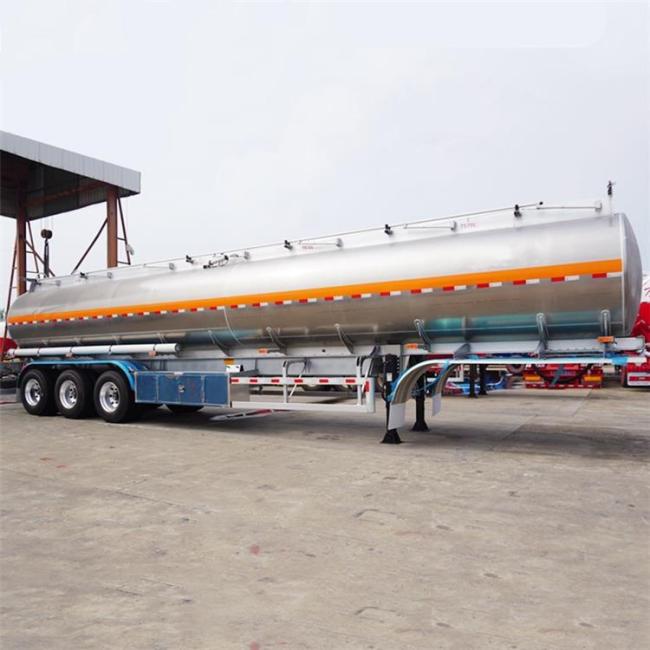

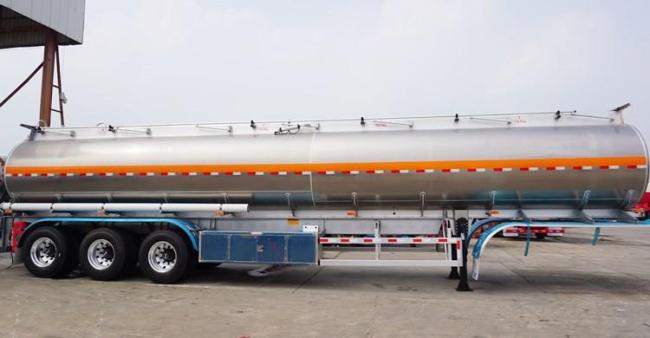

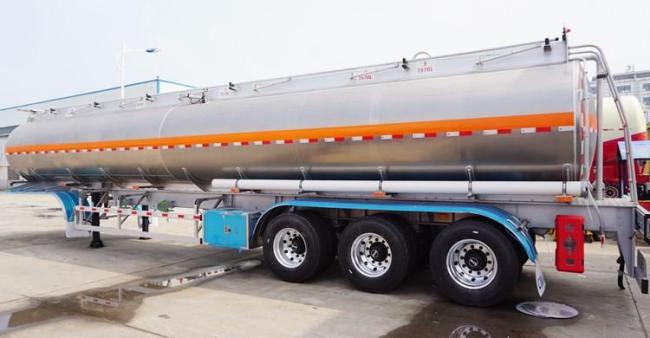

Detailed Photos
Packacge of other tri axle side tipper trailer
