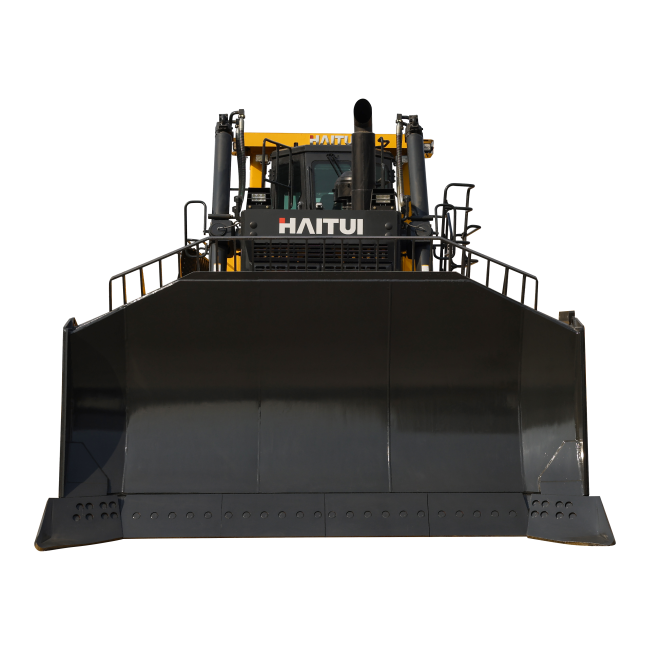

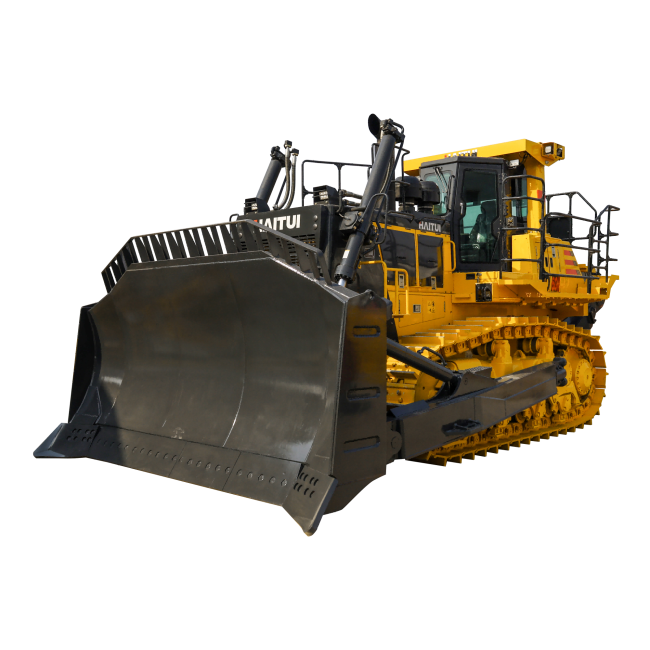

SD60 HD60 450kw 600HP 70t Hydraulic Crawler Mining Dozer Bulldozer Construction Machinery With Ripper
SD60 HD60 450kw 600HP 70t Hydraulic Crawler Mining Dozer Bulldozer Construction Machinery With Ripper
Product Description
1. The main components of the whole machine adopt modular design, which is easy to disassemble and repair;
2. Cumins ECU engine,EU 3 emission,612 horsepower,air intercooler,powerful and low fuel consumption
3. The intelligent temperature control hydraulic fan dissipates heat perfectly, with reverse function to clean the radiator.
4. The K-type floating track roller suspension mechanism and lubrication track exhibit excellent ground adaptability and remarkable durability.
5. The main hydraulic components, control handles, controllers, and pipelines are supplied famous brand.
6. Quickly and efficiently control of gearing and steering with pilot.
7. The working device operate with joysticks, which is light,High control accuracy and efficiency; The 360 surround view system gives the driver a 360-degree panoramic view of the driving without any blind spots, which improves the convenience and safety of driving and riding:
the centralized lubrication system greatly improves the maintenance convenience of the vehicle and effectively guarantees the service life of the machine. Adapted from the German fuel heater, The seats are equipped with electric heating and airbag damping, which greatly improves the adaptability to extreme cold environments and driving comfort.
8. Compatible with Ripper automatic pin puller , radio, USB charging, etc.
Performance parameters:
| Model | HD60 |
| Dimension(without ripper) | 7641*4690*4530 |
| Dimension(with ripper) | 10390*4690*4530 |
| Operation weight(T)(with ripper) | 70.5 |
| Operation weight(T)(without ripper) | 66.85 |
| Engine | QSK19-C604 |
| Power(kw/r/min) | 450/1800 |
| Displacement(L) | 19 |
| Max.torque(N.m/rpm) | 3019/1300 |
| Min turning radius(m) | 6.835(L)/6.789(R) |
| Track grounding length(mm) | 3842 |
| Grounding pressure(MPa) | 0.1232 |
| Min ground clearance(mm) | 610 |
| Grade ability (°) | 30 |
| Track shoe type | Single grouser |
| Number of track shoe | 40pcs/single side |
| Width of track shoe(mm) | 610 |
| Track gauge(mm) | 2502 |
| Pitch(mm) | 280 |
| Number of carrier roller(single side) | 2 |
| Number of track roller(single side) | 7 |
| System pressure(MPa) | 21 |
| Blade type | Semi-U blade(rocky) |
| BladeLxH(mm) | 4692*2251 |
| Blade capacity( m3) | 18.5 |
| Blade lift height(mm) | 1661 |
| Blade depth(mm) | 716 |
| Blade Max tilte(mm) | 733(L)/731(R) |

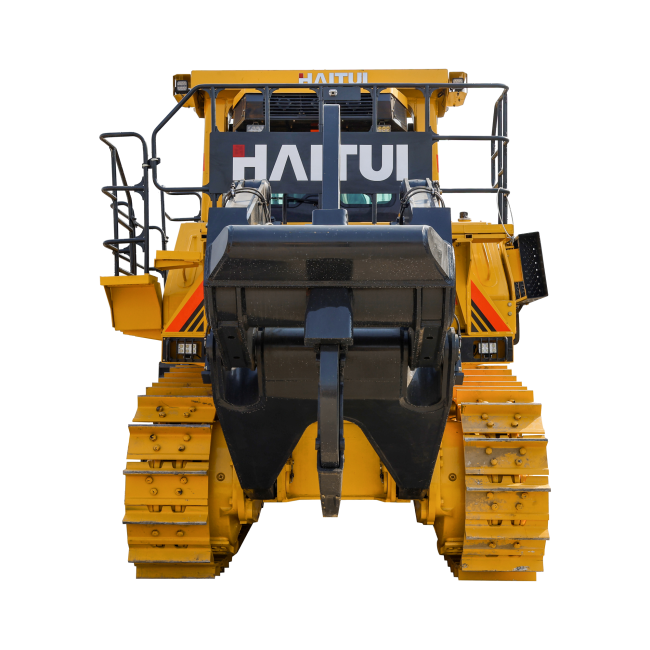

| Ripper type | Single shank ripper |
| Ripper weight(T) | 3.59 |
| Max. ripping depth(mm) | 1435 |
| Max. lifting height(mm) | 1105 |
