SD LG 5.5ton Payload Diesel Hydraulic Wheel Loader L959h With 3.6 Cubic Meters Bucket
SD LG 5.5ton Payload Diesel Hydraulic Wheel Loader L959h With 3.6 Cubic Meters Bucket
Product Advantages
1. The L959H is equipped with a Per-kin s engine providing ample power for all applications.
2. VRTE205 automatic transmission, KD function, power cut-off function, gears front four and rear four, easy to control, reliable and durable.
3. SD LG Reinforced Wet axles provide excellent responsiveness ,traction and stability.
4. Cab is equipped with optimized air conditioning and air suspension seat with heating.
5. ROPS&FOPS certified cab with expanded glass viewing area, rear-view camera, and four LED working lights.
6. All pertinent information is monitored by the conveniently located screen within the operator's field of vision.
7. Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
| Standard bucket capacity,m³ (yd³) | 3.6(4.7) |
| Rated load,kg (lbs) | 5,500(12,125) |
| Operating weight,kg (lbs) | 18,450(40,675) |
| Engine model | 1206J-E70TTA |
| Rated power,kW (hp)/r/min | 168(228) |
| Rated engine speed,rpm | 2200 |
| Engine displacement,ml (in³) | 7010(428) |
| Speed at Fl/Rl,km/h (mph) | 0~7(0~4.4) |
| Speed at F2/R2,km/h (mph) | 0~12.5(0~7.8) |
| Speed at F3/R3,km/h (mph) | 0~27(0~16.8) |
| Speed at F4/R4,km/h (mph) | 0~39(0~24.2) |
| Breakout force,kN ( lbf ) | 175(39,342) |
| Tire size | 23.5-25 |
| Fuel tank,L (gal) | 300(79.3) |
| Overall shipping size (L • W • H) mm (ft in) | 8,320 (27'3.6")*3,000(9'10.1")*3,450(11'3.8") |
| A Wheelbase,mm (ft in) | 3,400(11'1.9") |
| B Ground clearance,mm (ft in) | 420(1'4.5") |
| C Reach at max.height,mm (ft in) | 1,165(3'9.9") |
| D Dumping angle,° | 45 |
| E Height at bucket pin,mm (ft in) | 4,205(13'9.5") |
| F Dumping height,mm (ft in) | 3,130(10'3.2") |
| G Bucket rollback at ground level | 42 |
| I Wheel tread,mm (ft in) | 2,190(7'2.2") |
| J Articulation angle,° | 38 |
| K Turning radius at over bucket,mm (ft in) | 6,980(20'3.9") |
| M Turning radius at inside of tires,mm (ft in) | 3,560(11'8.2") |

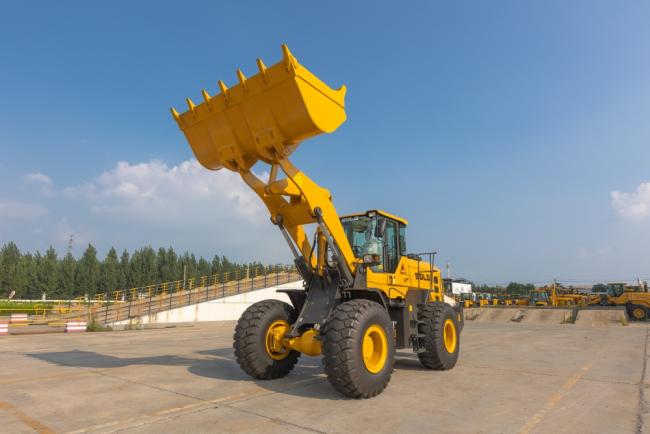

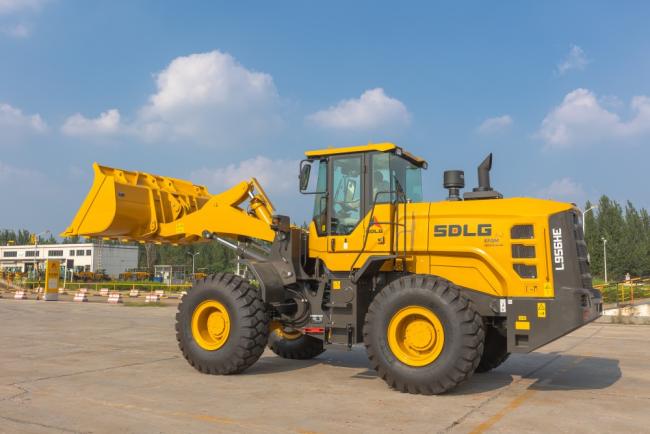

Details Images
