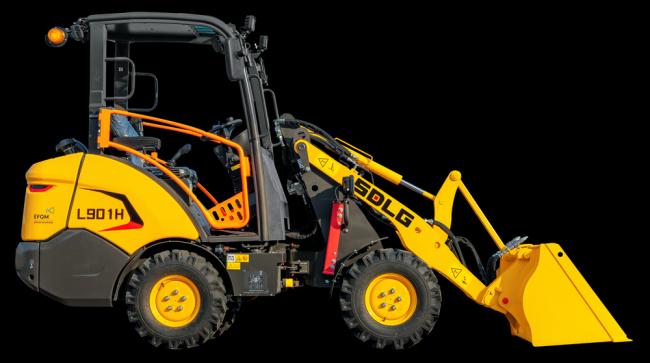

SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
Price:
Negotiation
MOQ:
1 Unit
Delivery Time:
Full Payment 30-40 Work Days
Brand:
SDLG
Product Description
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
Product Advantages
1.The SDLG-exclusive technology for great traction, which drive form can be switched from series to parallel.
2.Utilizing a large displacement engine allows the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.
3.The operator can easily adjust the engine speed at any time by simply pulling the throttle lever to accommodate any working condition.
4.ROPS&FOPS certified canopy.
| Standard bucket capacity,m³ (yd³) | 0.25 (0.33) |
| Rated load,kg (lbs) | 400 (882) |
| Operating weight ,kg (lbs) | 1,950(4,299) |
| Max.breakout force,kN (lbf ) | 12 (2,698) |
| Engine mode | D1703 |
| Rated power,kW (hp) | 18.2 (24.4)/2,200 |
| Engine displacement,ml (in³) | 1674 (102) |
| Transmission type | HST |
| Speed at Fl/Rl,km/h (mph) | 0~6 (0~3.7) |
| Speed at F2/R2,km/h (mph) | 0~12 (0~7.5) |
| Tire size | 6.5-12 |
| Fuel tank,L (gal) | 25 (6.6) |
| Overall shipping size (L•W•H),mm (ft in) | 4015 (13'2")*1,000(3'3.4")*2203 (7'2.7") |
| A Wheelbase,mm (ft in) | 1,370(4'5.9") |
| B Ground clearance,mm (ft in) | 165 (6.5") |
| C Reach at max.height,mm (ft in) | 468 (1'6.4") |
| D Dumping angle,° | 45 |
| E Height at bucket pin,mm (ft in) | 2,592(8'6") |
| F Dumping height,mm (ft in) | 1,820(5'11.7") |
| G Bucket rollback at ground level,° | 50 |
| I Wheel tread,mm (ft in) | 685(2'3.0") |
| J Articulation angle,° | 45 |
| K Turning radius at over bucket,mm (ft in) | 2,590(8'6") |
| M Turning radius at inside of tires,mm (ft in) | 1247(4'1.1") |
Details Images
