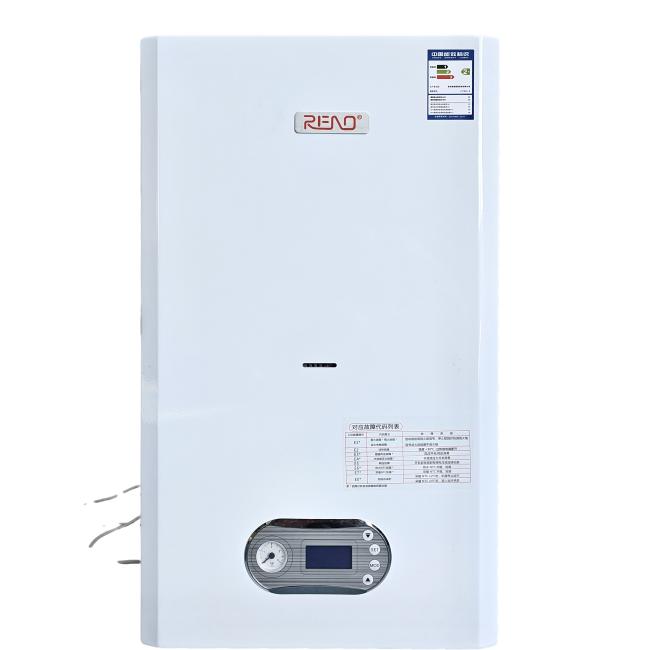

Housing Wall Mount Gas Boiler Home Floor 20Kw Heating Ng Lpg Combination Boiler
High Quality Stainless Steal Housing Home Floor 20/24/26/28/32/40 Kw Heating Ng/Lpg Combi Hot Water Boiler
GAS WALL HANGING BOILER INSTRUCTIONS
1. Comfort
Ultra-quiet operation•more comfortable
2. Convenience
Touch control•more precise
3. Environmental protection
Energy saving and environmental protection•Follow the trend
4. After sale
7*24 after-sales service,worry free
5,It has big heating power,can fully realize the whole set of home heating requirement,make the bedroom warm,as warm as spring.
6. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB26-A(F3) |
|
SPECIFICATIONS |
A26-F3/B26-F3 |
|
RATED INPUT POWER(KW) |
26 |
|
RATED OUTPUT POWER(KW) |
23.5 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |
PRODECT DISPLAY
It has IPX4 insulation protection. Under the bad condition of the environment ,it can be used.
It has sanitary hot water flow protection.
It has limit temperature protection function.It pervent overheating,ensure safety,show overheating fault code.
It has air pressure protection function.When the flue is blocked or a downdraft occurs,automatic fire extinguishing will happen,and it is be sumitted to the fault code.
It has prepurge funtion and post-puege function.It can prolong the service life of the combustion camber components.
It has heating system voltage protection function.
