20kw 24kw Condensing Combi Boiler Wall Mounted Gas Boiler Top Componets
20/24/26/28-32KW STYLE WALL HANGING GAS HOT WATER BOILER AND USE TOP COMPONETS AND ASSEMBLED IN CHINA
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB20-24-26-28-32-A(C3) |
|
SPECIFICATIONS |
A20-24-26-28-32-TG1/BH1 |
|
RATED INPUT POWER(KW) |
20-24-26-28-32kw |
|
RATED OUTPUT POWER(KW) |
18-21.6-23.5-25-28.8kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-9.5-10-11.5-13 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-33-33-37-38kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

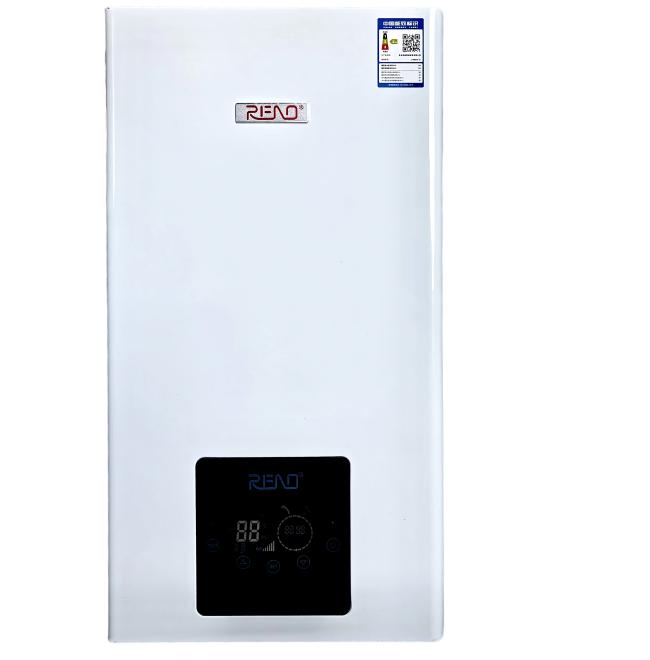

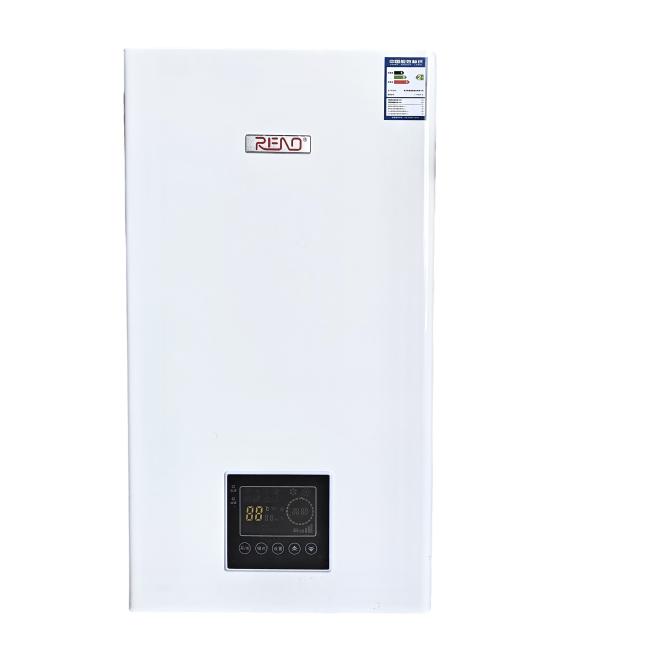

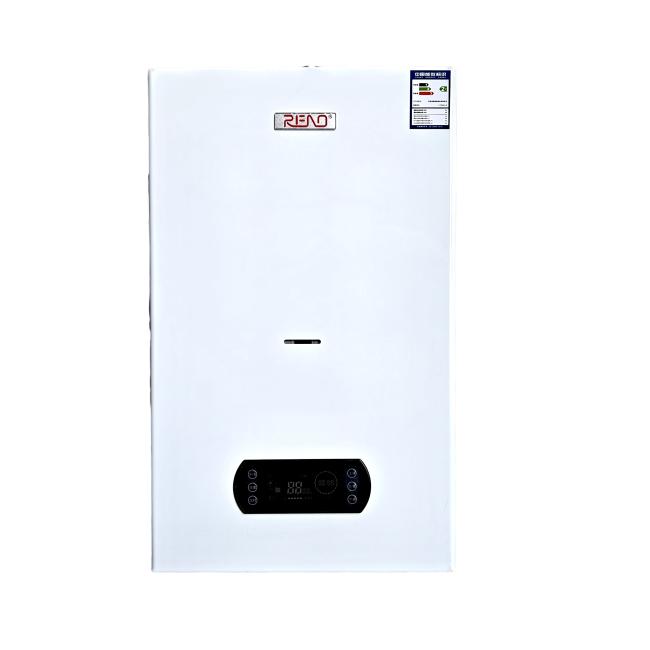

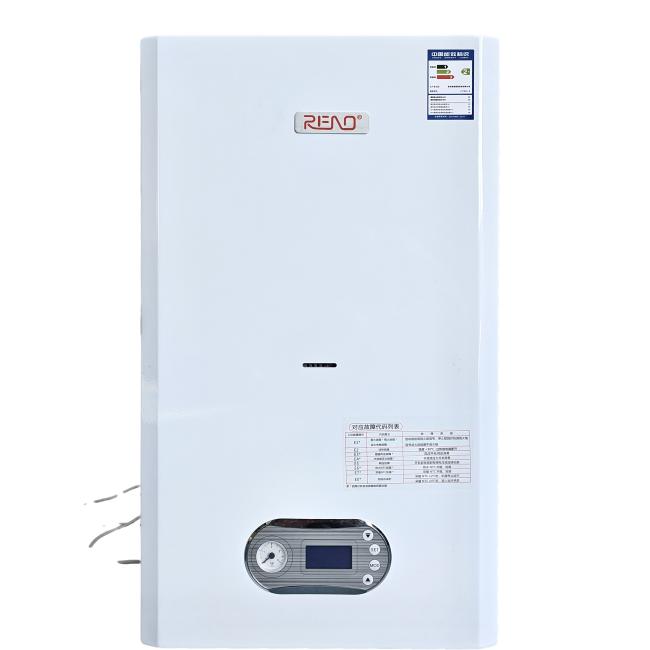

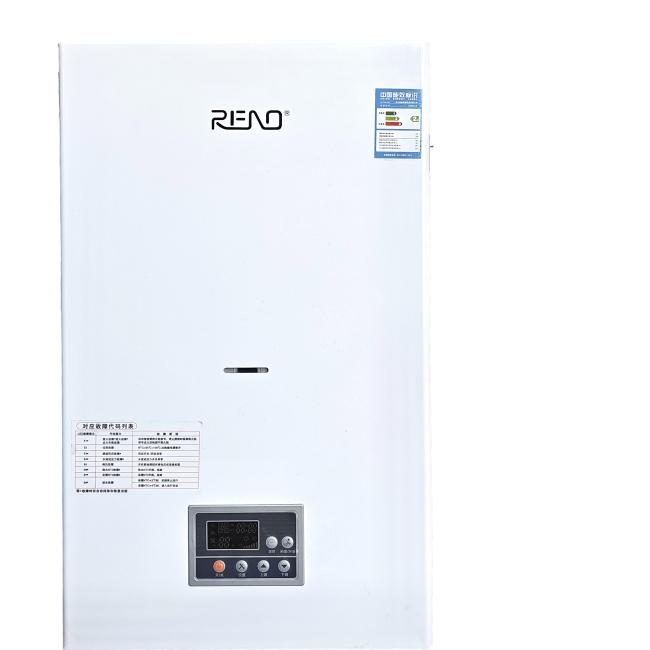

PRODUCT DISPLAY
Introduction of Condensing gas wall hanging furnace:
Condensing technology is a scientific and technological means to improve thermal efficiency. By using condensing technology, the thermal
efficiency of gas wall hanging furnace is greatly improved, which also means the reduction of energy consumption; More importantly, an energy
saving and environmental protection wall hanging furnace plays an irreplaceable role in improving users' living environment and quality of life. The
biggest feature of condensing type wall hanging furnace is to achieve excellent energy saving effect relying on condensing technology.
Full premixed condensation technology is a way of pre-mixing air and gas to achieve the optimal ratio of combustion, and then recovering part of the heat energy (latent heat of water vapor) from the flue gas generated by combustion.
