Gas BBQ Grill Refractory Ceramics Infrared Honeycomb Ceramic Burner Plate

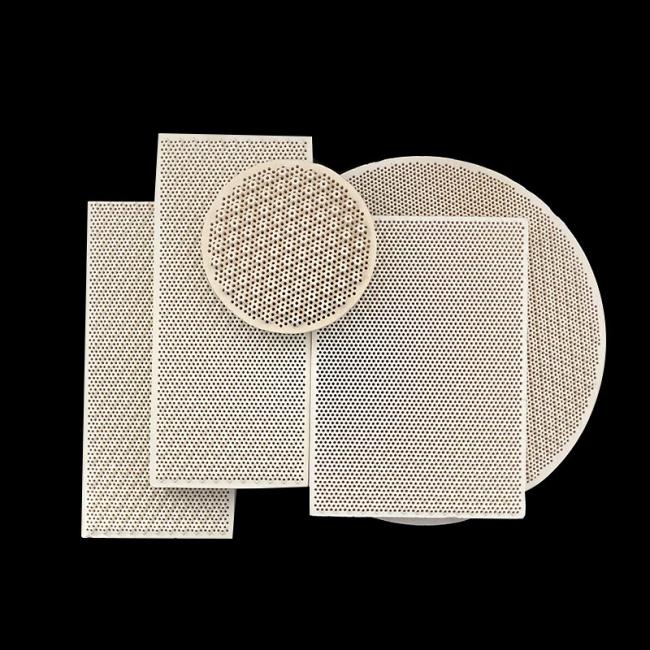

infrared honeycomb cordierite ceramic plate for gas BBQ grill
Cordierite ceramic
Cordierite ceramic is one of the most popular ceramics for its properties of excellent thermal stability, high refractoriness, good chemical durability, low dielectric constant, and low thermal expansion.
Cordierite ceramic is extensively used in important industrial applications such as micro electronics, refractory products, heat exchanger for gas turbines, thermal shock-resistant table ware, catalyst supports, and porous ceramics. Low-expansion cordierite is suitable for being applied at high temperature circumstance where a good thermal shock resistance is required.This unique property of cordierite is caused by the negative lattice expansion in c-axis direction,which provides excellent resistance to thermal shock as well as low thermal conductivity.
| Item | Test Condition | Unit&Symbol | Cordierite ceramics |
| The main chemical ingredient | MgO, Al2O3,SiO2 | ||
| Bulk Density | gm/cc | 2.5 | |
| Maximum Use Temperature | 1000℃ | ||
| Water absorption | % | 0 | |
| Hardness | HV | 800 | |
| Bending Strength | 20℃ | Kgf/cm2 | 900 |
| Compressive Strength | 20℃ | Kgf/cm2 | 3500 |
| Fracture Toughness | K(I c) | Mpa m1/2 | - |
| Thermal expansion | 1X 10-6/℃ | ≤2.0 | |
| Thermal conductivity | 25℃-30℃ | W/m.k | 1.3 |
| Thermal Shock Resistance | Tc | ℃ | 250 |
| Dielectricity constant | 1MHz.25℃ | 6 | |
| Dielectric strength | ac-kV/mm (ac V/mil) | 10 | |
| Volume Resistivity | 20℃ | ohm-cm | > 1012 |
