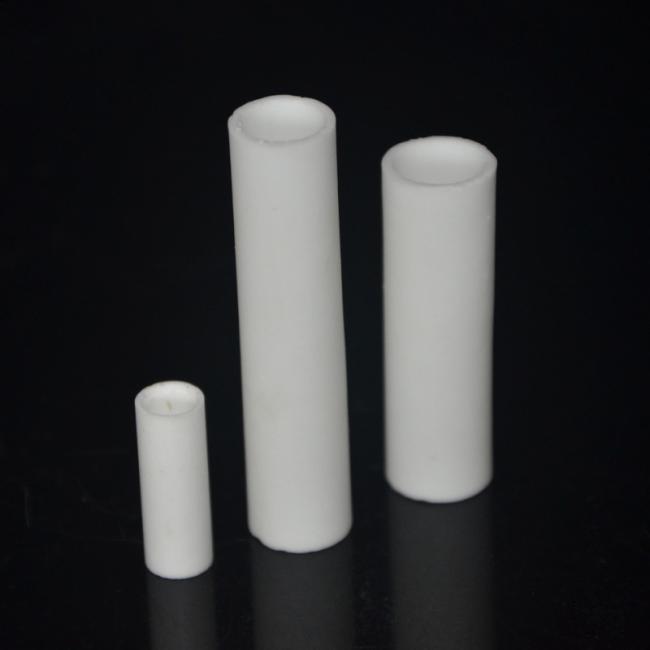

95% Nonporous Alumina Ceramic Tube High Insulation Heat Resistant Ceramic Tube
Price:
USD 0.1-0.5/PCS
MOQ:
500 pcs
Delivery Time:
15-20DAYS
Brand:
MH
Product Description
95% Alumina Ceramic tube High Insulation Heat Resistant Ceramic tube
95% 99% alumina ceramic rod
About this item
Common application are: kiln/furnace components, spacers, bushings, insulators, nozzles, sleeves, seal rings, support pins & wear resistant components.
Readily available material with reasonable cost possessing excellent properties handling thermal and mechanical shock.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
