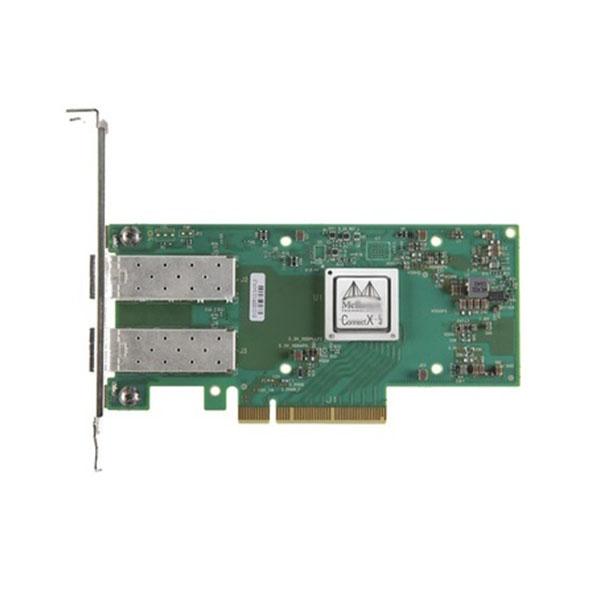

Dual Port PCIe 3.0 X8 Network Adapter Card MCX512A-ACAT Mellanox ConnectX-5 EN 10/25GbE
Mellanox ConnectX-5 EN 10/25GbE Dual-Port PCIe 3.0 x8 Network Adapter Card MCX512A-ACAT
Description
Mellanox ConnectX-5 EN network interface card, 10/25GbE dual-port SFP28, PCIe3.0 x8, tall bracket
The ConnectX-5 Ethernet adapter card provides high performance and flexible solutions. ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe switch, and NVMe over Fabric target offloads. The ConnectX-5 adapter card also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.
ConnectX-5 MCX512A-ACAT Ethernet network interface card provides high performance and flexible solutions with up to two ports of 25GbE connectivity, 750ns latency, up to 75 million messages per second (Mpps). For storage workloads, the 25 Gigabit Ethernet adapter card delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads.
Features
- Maximum up to 100Gb/s Ethernet per port
- Adaptive routing on reliable transport
- NVMe over Fabric (NVMf) target offloads
- Enhanced vSwitch / vRouter offloads
- Hardware offloads for NVGRE and VXLAN encapsulated traffic
- End-to-end QoS and congestion contro
| Model | MCX512A-ACAT |
| Ports | Dual |
| Supported Ethernet Speeds | 36 100Gb/s non-blocking25/10/1GbE |
| Host Interface | PCIe 3.0 x8 |
| OS Support |
Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2
|
| Controller | Mellanox Technologies MT28800 Family ConnectX-5 |
| Interface Type | SFP28 |
