Blue HDD Back Reamer NC23 NC26 NC31 NC40 Thread Type

Name: Blue HDD Back Reamer NC23 NC26 NC31 NC40 Thread Type
Brand: Langfang Blue Water International Trading Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 2 Weeks Usually.

Product Description

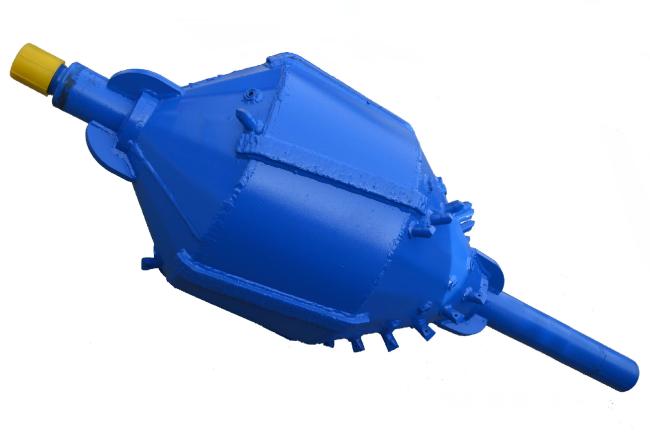

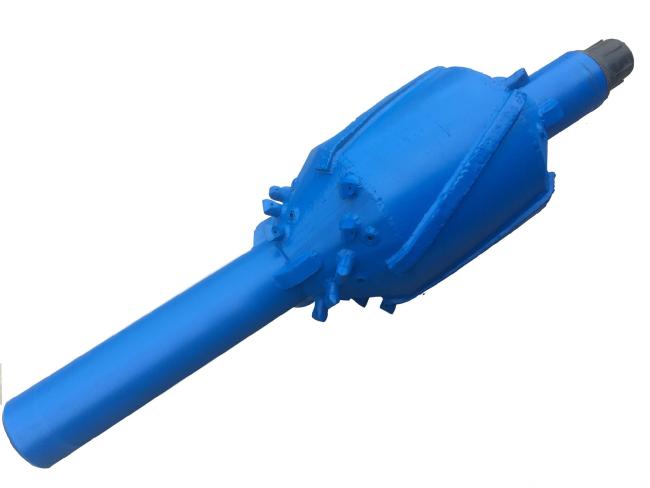

Back Reamers for HDD Operation

High quality alloy steel is applied in back reamer manufacturing. The reamer body is heat treated. Integral mandrel and special designed wear resistant hard alloy cutter provide faster footage. An isolation cavity is designed in side the reamer which makes the reamer ligher under the buoyancy action avoiding the pear shape hole. Different length of straight bucket is desiged as per the different formation condtion to get a better bore hole. OEM products available as per the customers' detailed requirements.

Back Reamer Size Available	Thread Type and Mandrel Size Available
Back Reamer Size Available	NC23	D50	NC26	D80	NC31	NC38	NC46	NC50	5-1/2"FH
200mm	￠90	￠90	￠90	／	／	／	／	／	／
250mm	￠90	￠90	￠90	￠108	￠108	／	／	／	／
300mm	￠90	￠90	￠90	￠108	￠108	￠128	／	／	／
350mm	￠90	￠90	￠90	￠108	￠108	￠128	／	／	／
400mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	／
450mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
500mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
550mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
600mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
650mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
700mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
750mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
800mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
850mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
900mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
950mm	￠90	￠90	￠90	￠108	￠108	￠128	￠168	￠178	￠195
1000mm	￠90	￠90	￠90	￠118	￠118	￠128	￠168	￠178	￠195
1050mm	￠90	￠90	￠90	￠118	￠118	￠128	￠168	￠178	￠195
1100mm	￠90	￠90	￠90	￠118	￠118	￠128	￠168	￠178	￠195
1150mm	￠90	￠90	￠90	￠118	￠118	￠128	￠168	￠178	￠195

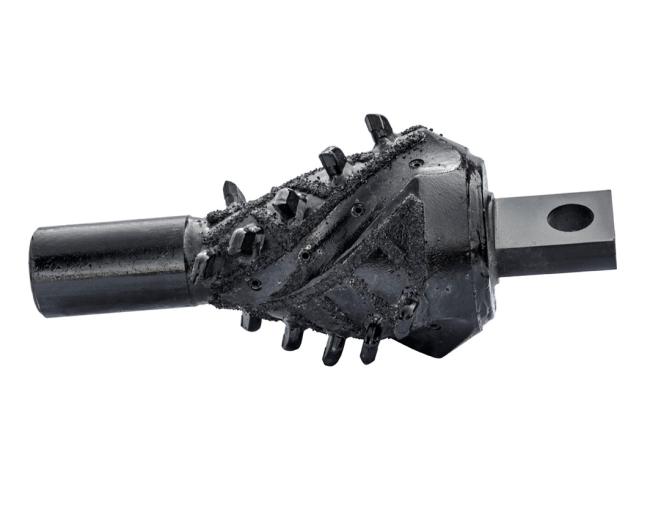

Reference Types of Reamers Available
