High Strength Electrical Insulating Silicone rubber 9Mpa 700% Elongation

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Brand: CHENGUANG FSP
Product Description

High-strength molded Silicone Rubber



DESCRIPTION


High Temperature Vulcanizable, Peroxide Initiation Curing



Characteristics:

Transparency
Excellent electrical insulation properties
Good physical and mechanical properties
High and low temperature resistance



Application:

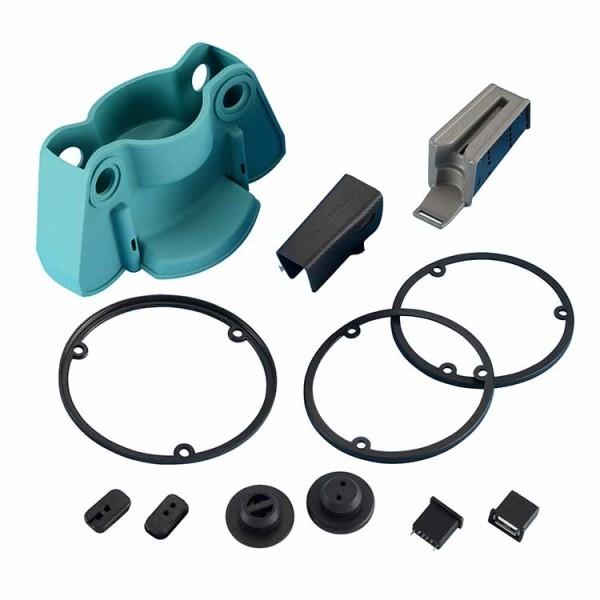

Molded products and die-casting products, such as cable accessories, gaskets, gaskets, 0 rings, diaphragms, rubber rollers, plates, etc.



TYPICAL PROPERTIES


Property Test Method Unit

Value

Density, 25℃ GB/T 1033-86

g/cm3

1.15
Tensile Strength GB/T 528-1992

MPa

9.0

Elongation at Break GB/T 528-1992
%

700

Tension Set at Break GB/T 528-1992 %

4.0

Tear Strength GB/T 529-1991 kN/m

35

Hardness, Shore A GB/T 531-1992



55±2
Volume Resistivity GB/T 1410-1989 Ω.cm 1.0×1015
Dielectric Strength GB/T 1408.1-1999 kV/mm 22.0

Dielectric constant,1MHz

GB/T 1694-1981



3.5

Dissipation factor,1MHz

GB/T 1694-1981



5.0×10-3

These figures are only intended as a guide and should not be used in preparing specifications.



HOW TO USE


Blend the peroxide curing agent—DBPH50 into rubber base with open mill, the mixed rubber can be used for mold after re-milling homogeneous. Base on sample size to decide mold condition.
Base on customer request, curing agent and mix pigment can be added before ship.



PACKING, STORING & SHIPPING


If stored at or below 25℃, GX151-U has a shelf life of at least 6 months from its production date. Even if stored beyond this recommended time, the product may still be usable. However, in such cases, properties testing must be carried out after re-milling to ensure quality. If the curing agent has already been added during shipping, it is best to use the product within 15 days.

GX155-U comes in polyethylene plastic bags for the inner packaging and a carton for the outer packaging. Each case contains 20Kg of net weight. There are no shipping restrictions for GX155-U.



LIMITED WARRANTY INFORMATION


The data presented in this leaflet are in accordance with the present state of our knowledge, but do not absolve the user from carefully checking all supplies immediately

on receipt. We reserve the right to alter

product constants within the scope of technical progress or new developments. The recommendations made in this leaflet

should be checked by preliminary trials

because of conditions during processing over which we have no control, especially where other companies’ raw materials are also being used. The recommendations do not absolve the user from the obligation of investigating the possibility of infringement of third parties’ right and, if necessary, clarifying the position, recommendations for use do not constitute a warranty, either express or implied, of the fitness or suitability of the products for a particular purpose.
