ROHS Industrial PCB Assembly 20 Layers Smt Pcba Manufacturing
LED Light Industrial Control Green/Bule/Black Soldmask PCB Assembly By IATF16949/ROHS/UL
The Importance Of IATF16949/ROHS/UL Certification
IATF16949 is a quality management system standard for the automotive industry that emphasizes strict quality control and risk management throughout the supply chain. the ROHS directive protects human health and the environment by restricting the use of hazardous substances in electronic products. the UL certification is an international safety certification that demonstrates that a product meets the relevant safety standards. For many industries, particularly automotive, medical and consumer electronics, these certifications are necessary to gain market access.
Industrial PCB Definition Classification
| PCB Type | Feature | Main Application |
| Single sided | A conductive pattern is formed on the surface of only one side of the insulating substrate |
Ordinary household appliances, electronic remote |
| Double sided | The upper and lower two layers of the line structure, generally using metallized holes to connect the two sides of the conductive pattern | consumer electronics, computers, automotive Vehicle electronics, communication equipment, industrial industry control |
| Multilayer board | 4 or more layers, multiple layers of single or double panels hot pressed together | Consumer electronics, communication equipment, Industrial control, Automotive electronics, Military, aerospace, etc |
| HDI board | High density, fine wire, small aperture and so on | Smart phones, tablets, digital cameras, wearable devices, etc |
| Flexible board | Made of flexible insulating substrate, thin and flexible | Smart phones, tablets, wearables, etc |
| Package Substrate | It is directly used to carry the chip, and can provide packaging, electrical connection, protection, heat dissipation and other functions for the chip | Chip packaging for various electronic devices |
PCB Assembly Manufacturer Capacity
| Capacity | Industrial,Medical,Consumer |
| Soldmask & Silkscreen | Green & White |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
Industrial Control Board Manufacturer For PCB
Shenzhen SKY-WIN Technology Co., Ltd which is one-stop PCBA intelligent manufacturing platform, sample/small batch, SMT patch, PCB proofing, DIP welding processing, PCB board making, full set of electronic components purchasing, one-stop PCBA manufacturing services.

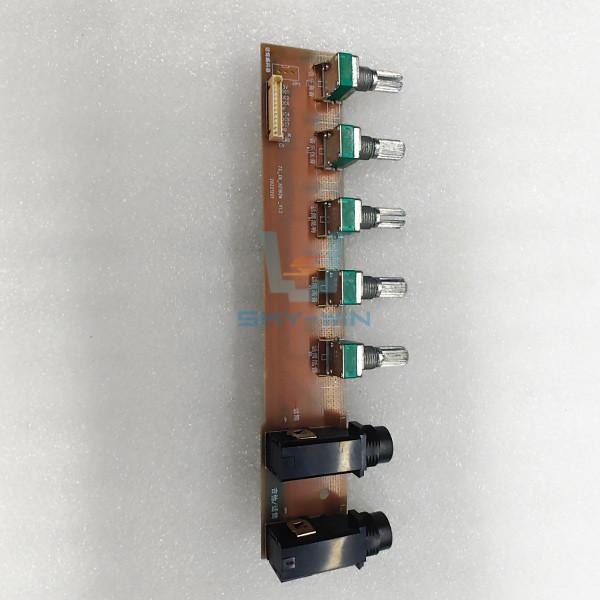

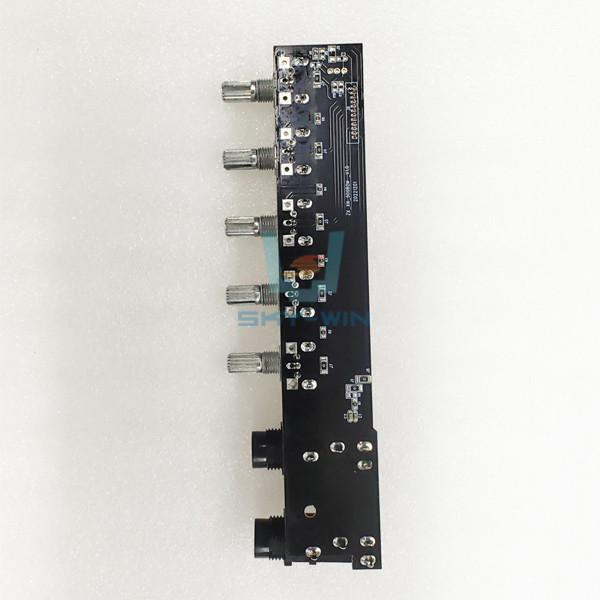

PCBA for Industrial Case
