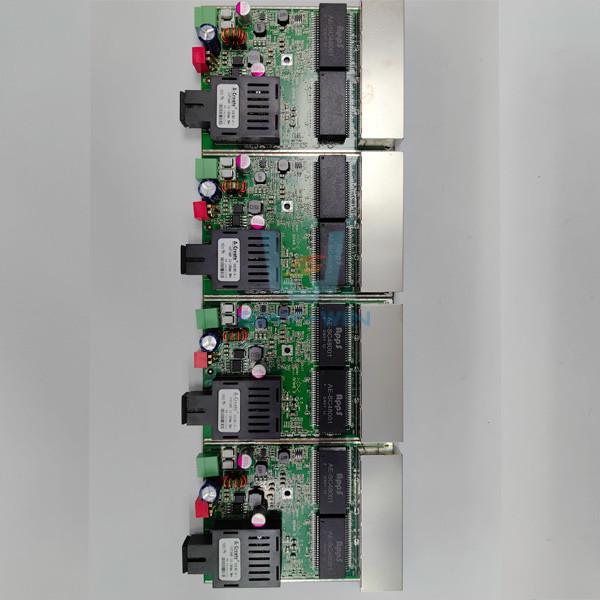

HASL Lead Free 1.6mm Multilayer PCB Assembly Green Soldermask Industrial Printed Circuit Board
HASL Lead Free 1.6mm Multilayer PCB Assembly Green Soldermask Industrial Printed Circuit Board
Industrial PCB Assembly Services
Sky Win Technology has become a one-stop solution when it comes to high-quality industrial PCB assembly. Utilizing the latest technology and equipped with a team of experts and industry best practices, we ensure that we develop cutting-edge industrial printed circuit board assemblies that are ahead of the curve.
Among our other products, we specialize in providing industrial PCB assemblies that require a high level of reliability and precision. Since electronics for industrial applications need to be extremely stable and suitable for use in harsh conditions, industrial printed circuit boards also need to adhere to strict standards to thrive in industrial environments. Additionally, industrial PCBs need to be able to withstand extreme temperatures, moisture and dust, shock, vibration, and more.
We are able to provide solutions for a variety of industrial applications, from sensing systems and monitors to heavy equipment and home appliances. We are capable of providing low, medium and high volume PCB assembly, complete machine assembly, cable and wire harness assembly, complete turnkey assembly and many more solutions for industrial applications.
Depending on the complexity of the circuit, we offer products ranging from single layer PCBs to multi-layer PCBs. In addition, different industrial applications require rigid and flexible rigid-flex PCBs. You can rely on us to provide custom PCBs to meet your customization needs.
Sky-Win PCB specializes in prototype and low volume PCB assembly,
SMT, Through Hole and Mixed Assembly
Passive Down to 01005 Sizes
Ball Grid Array (BGA)
Ultra-Fine Ball Grid Array (uBGA)
Quad Flat Pack No-Lead (QFN)
Quad Flat Package (QFP)
Plastic Leaded Chip Carrier (PLCC) 6. SOIC, Package-On-Package (PoP)
Small Chip Packages (Pitch of 0.2 mm)
To get a full quotation of the Industrial PCB Assembly
- Gerber File, with detail specification of the PCB
- BOM List (Better with excel fomart)
- Photoes of the PCBA (If you have done this PCBA before)
Industrial PCB Assembly Process Capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |
