120 Degree 64 In 1 SMD LED Lens with PC Material for High Bay Lighting
Price:
Negotiable
MOQ:
500PCS
Delivery Time:
3-5 working days
Brand:
ChenMu
Product Description
120 Degree 3030 SMD LED Lens, PC Material 64 In 1 High Bay Light Optical Lens
Product Overview
This high-performance optical lens is designed for 3030 SMD LED chips, featuring a 120-degree beam angle and constructed from durable PC material. Ideal for high bay lighting applications, it provides efficient, wide-area illumination with excellent light distribution.
Technical Specifications
| Product Name | CM-SZ11007-A120D-64H1 |
| Beam Angle | 120° |
| Efficiency | 93% |
| Material | PC (Polycarbonate) |
| LED Chips | 3030 SMD |
| Size | Ø110 × H6.8 mm |
| Application | High Bay Light, Square Lighting |
| Accessory | SMD LED + Gasket + PCB + Heat Sink or Module |
Key Features
- Wide 120-degree beam angle for broad light distribution
- High 93% optical efficiency
- Durable PC material construction
- Compatible with 3030 SMD LED chips
- Modular design allows free splicing of different power modules
- Cost-effective replacement for metal halide or HPS bulbs
- Enables reuse of existing lighting housings

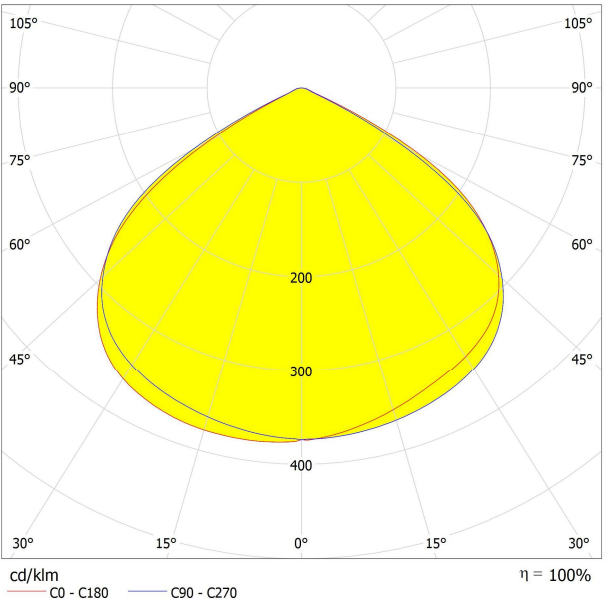

IES Photometric Data
Technical Drawing
Application Example
Handling & Safety Notices
- Avoid squeezing during transportation and protect from mechanical impact and rain exposure
- Store in cool, dry, clean environments
- Review product specifications thoroughly before use to prevent accidents
- Inspect carefully before installation and contact us if abnormalities occur
- Module surface temperature rise during operation is normal - avoid direct contact with light source
- Ensure module integrity before installation
- Do not apply external force or throw modules
- Select appropriate drive power matching voltage range and drive current requirements
- During installation, align arrow direction to point toward road side
Ordering & Shipping Information
| Trade Terms | EXW, FOB, CNF, CIF |
| Payment Terms | T/T, PayPal, Western Union, MoneyGram |
| Delivery Time | 2-3 working days (samples), 5-7 working days (bulk orders) |
| Shipment Methods | By Sea, By Air, By Express (DHL, FedEx, UPS, TNT) |
| Main Markets | Europe, South America, North America, Asia |
| Quality Guarantee | Defective items replaced upon receiving pictures of damaged parts |
Frequently Asked Questions
Can I place a sample order?
Yes, we welcome sample orders for quality testing. Mixed samples are acceptable.
When can I get a quotation?
We typically provide quotations within 12 hours of receiving your inquiry. For urgent requests, please contact us directly.
What is the production lead time?
Samples require 3-5 days preparation; mass production typically takes 7-10 days.
What are your main products?
We specialize in both outdoor and indoor lenses, including Street & Area Light lenses, Single lenses, and High Bay Light lenses.
