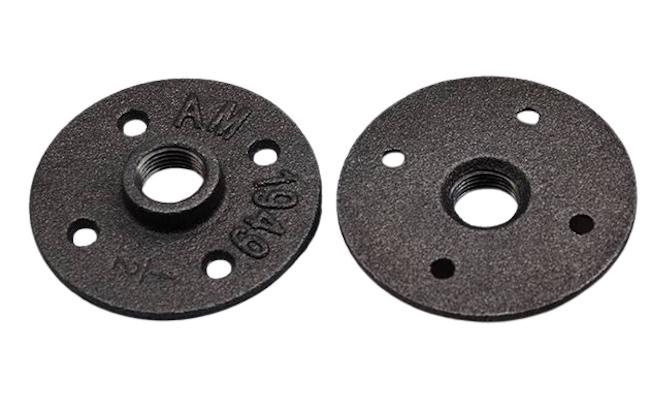

Customized Gray Iron HT250 Cast Iron Flange For Pipe Fittings

Quick Detail:

· Ductile Iron Casting Flange

· GGG45/QT450/FC450

· Mould + Sand Casting + CNC Machining

· Shot Blasting + Yellow Zinc Plated

· Used for connection of all kinds of pipeline

Product Description:

Gray cast iron flanges are often used in pipelines and pipeline equipment in machinery, agricultural machinery, railways, water conservancy, light industry and textile departments where the fluid medium temperature is below 120°C. They are mainly used in water pumps, valves, compressors, blowers and pipeline instruments, etc. Products, the applicable nominal pressure range is 0.25~5.0MPa and the nominal diameter range is 10~4000mm. The maximum service temperature of gray cast iron pipe flanges is 300°C, but for flanges at all levels of temperature higher than 120°C, the pressure needs to be reduced.

Product Specifications:

Product Applications:

Widely used in agricultural machinery, petroleum machinery, mining machines, construction, automotive, medical, marine, railway, power lines, furniture, lighting, pipeline, etc.

FAQ

Q1. How can we get a quotation?

A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.

Q2. What about the lead time?

A: 15-20 days for Sample making ,20 working days for mass production.

Q3. Do you have any MOQ limit for casting parts?

A: It depends on different parts. For some parts, 1 pc can be acceptable.

Q4. What is your payment term?

A: Mold: 50% payment in advance, balance after the sample approval.

B: Mass production: 30% payment in advance, 70% balance before shipment.

Q5. What is your quality control process?

A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.

Q6. How about the packaging?

A: Standard wooden box package or as your customized package.
