Industrial Waterproof Circular Power Connector Electrical Powercon
Price:
Negotiable
MOQ:
10
Delivery Time:
5-8 working days
Brand:
Shang Wen
Product Description

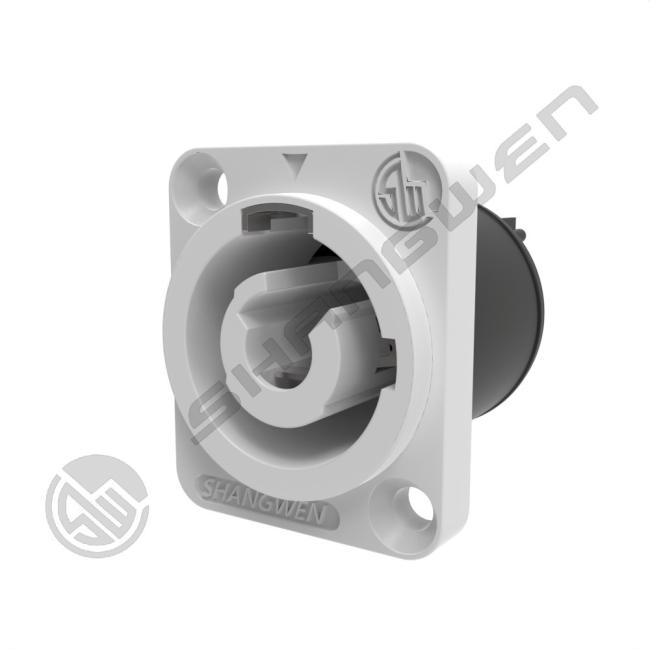

Indoor Use Powercon Chassis 3 Conductor 20A 250V Power-Out 3/16" Flat Tab Terminals White Color For Led Screen Cabinet
Product features
☑ Secure,quick, simple locking system
☑ Connect reliably
☑ Small size of product
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground
☑ High current capacity,rated at 20A/250V AC

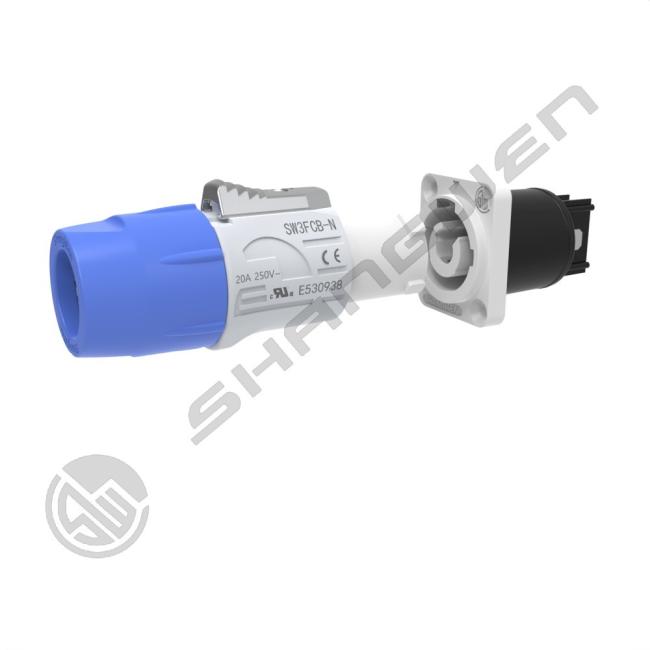

☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
Technical parameters
Electrical parameters
| Contacts No. | 3 |
| Rated current | 20A |
| Rated voltage | 250V AC |
| Contact resistance | ≤5mΩ |
| Dielectric strength |
4000V DC |
| Insulation resistance |
＞1000MΩ |
Mechanical parameters
| Service life | ＞1000 times |
| Power line | 2.5mm²(8mm-12mm) |
| Wire stripping length | 7-8mm |
| Type of terminals | 3/16'' flat tab/solder termination |
Material and environmental parameters
| Shell | PA |
| Conductor | Cu alloy |
| Conductor surface | Ag |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C~80°C |
| IP grade | IP44 |
