Stable Circular Female And Male Connector 250V AC Power Connector
Price:
$1.10 - $2.00/pieces
MOQ:
10
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description
Stable Ip44 Indoor Lockable Triple Core 250V AC Connector Female And Male Connector

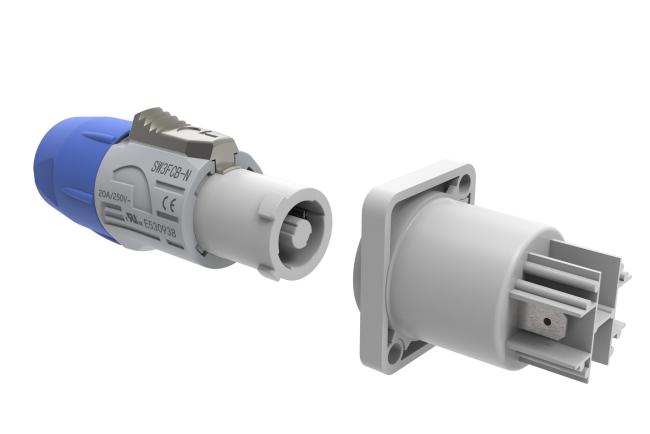

Powercon Connector 3 Pin Male Panel Mount Female for Neutrik Power Cable, AC 250V 20A Plug Jack Adapter for Stage Light LED Screen Audio Equipment
Application range:
LED display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.
Products Description
Power connector series-male powercon(output port)
1. Electrical parameters
|
Contacts NO.
|
2+PE
|
|
Rated current
|
20A
|
|
Rated voltage
|
250V AC
|
|
Contact resistance
|
≤5mΩ
|
|
Dielectric strength
|
4000V DC
|
|
Insulation resistance
|
＞1000MΩ
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Power line
|
2.5mm²(8mm - 12mm)
|
|
Wire stripping length
|
7-8mm
|
|
Type of teminals
|
Screw type clamping units solder termination
|
3. Material and environmental parameters
|
Shell
|
PA
|
|
Contacts
|
Cu alloy
|
|
Contact surface
|
Ag
|
|
Flame-retardant grade
|
UL94-V0
|
|
Protection grade
|
IP44
|
|
Temperature range
|
-30°C to +80°C
|
4.Size reference (unit /mm)
5. Installation reference drawing
Application area
Company Information
Patent & Certification
Exhibition activities
Payment and logistics
FAQ
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
3. Do your products come with warranty?
A: Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
3. Do your products come with warranty?
A: Yes,we promise 1-3 year warranty according to different model.
