IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
Price:
$2.00 - $2.90/pieces
MOQ:
10
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description

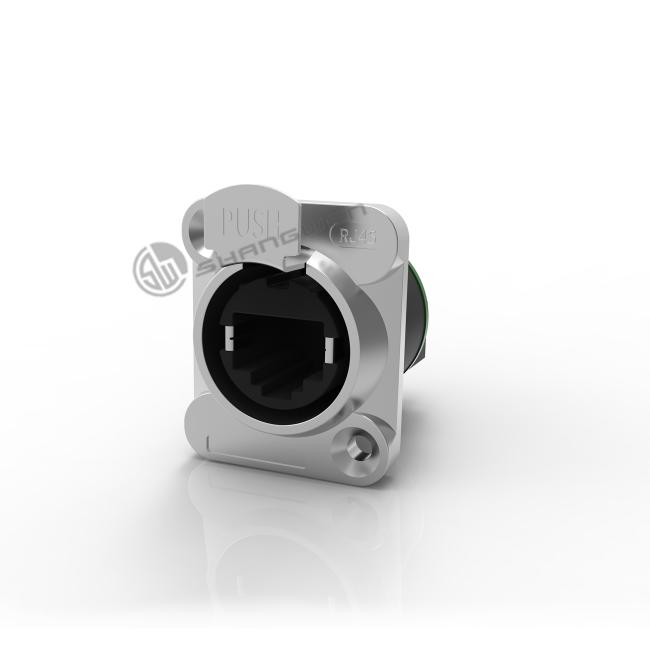

Indoor Industrial Ethernet Connector Straight Plug 8p Horn Male Female Rj45 Connector IP44
Products Description
Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Model:SW8FDNE-30(indoor use)

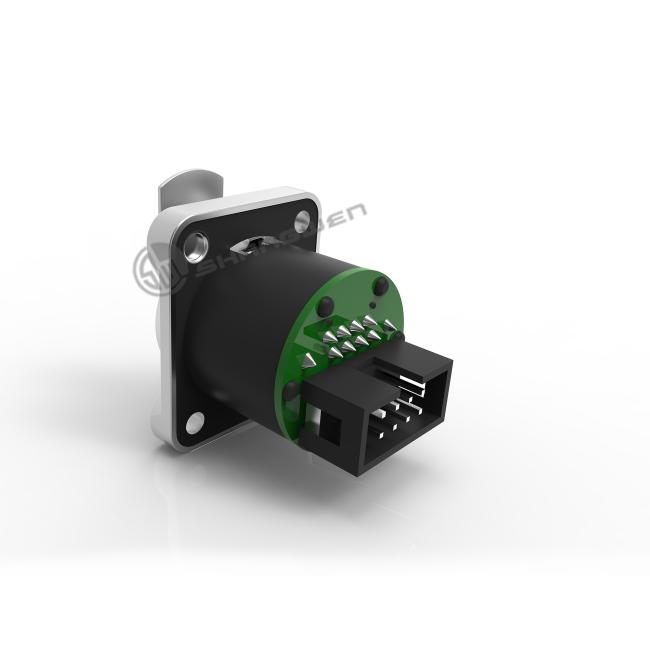

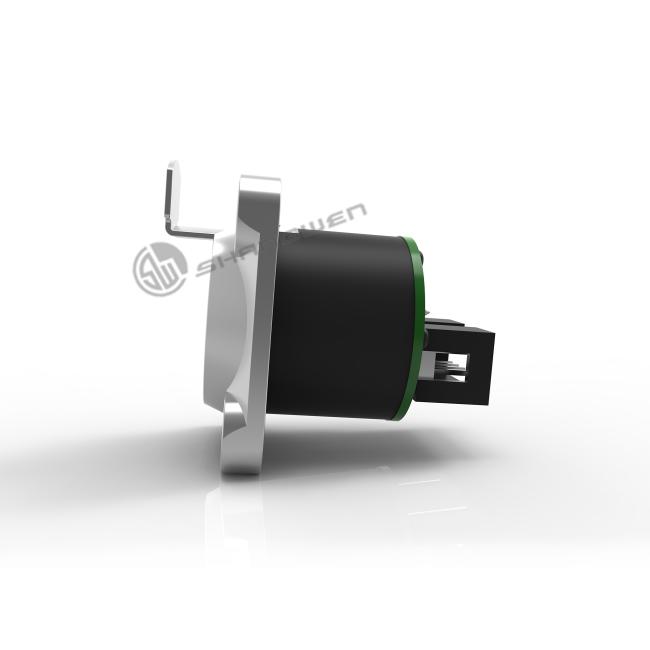

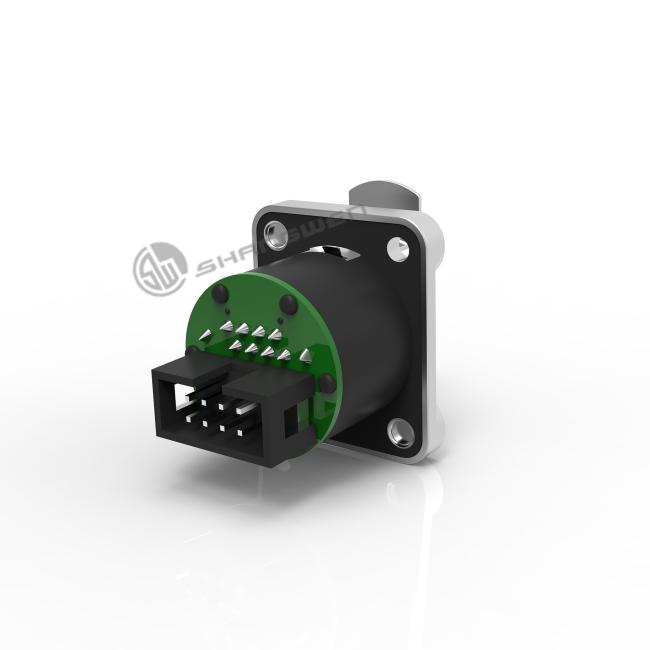

*The rear end is a straight plug 8P horn, the opening direction is consistent with the direction of the button*
☑The back-end can be flexibly modified according to actual requirements
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function
☑Complies with Cat5e according to TIA / EIA 568B and ISO / IEC 11801 standard
☑Mountable from the front or rear of the panel
1. Electrical parameters
|
Contact resistance
|
＜10mΩ
|
|
Rated current
|
1.5 A
|
|
Rated voltage
|
50 V
|
|
Insulation resistance
|
≥0.5GΩ
|
|
Dielectric strength
|
1KV DC
|
|
Frequencyrange
|
1-100 MHz
|
|
Transmission performance
|
Cat 5E
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Insertion force
|
≤ 20 N
|
|
Locking device
|
latch lock
|
|
Chassis shape
|
D style
|
3. Material and environmental parameters
|
Shell
|
Zinc diecast
|
|
Contacts
|
Bronze
|
|
Insert
|
PBT
|
|
Contact surface
|
Au
|
|
Shell surface
|
Pearl Cr
|
|
Temperature range
|
-30℃to +80℃
|
|
Level of protection
|
IP44
|

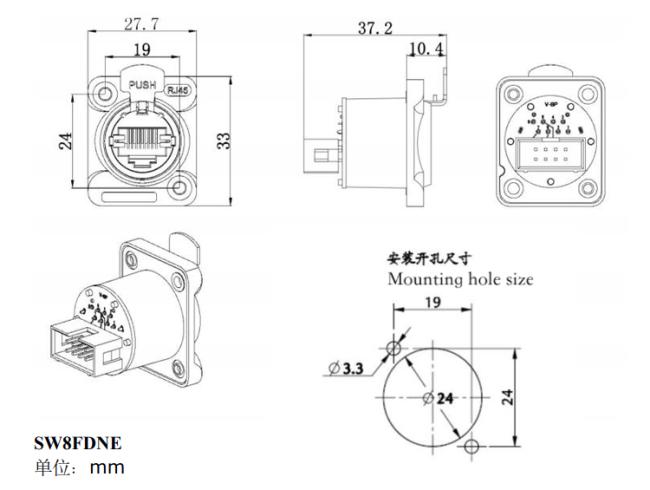

4.Size reference (unit /mm)
5.Internal structure reference
6. Installation instructions with SW8MC-A plugs
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
