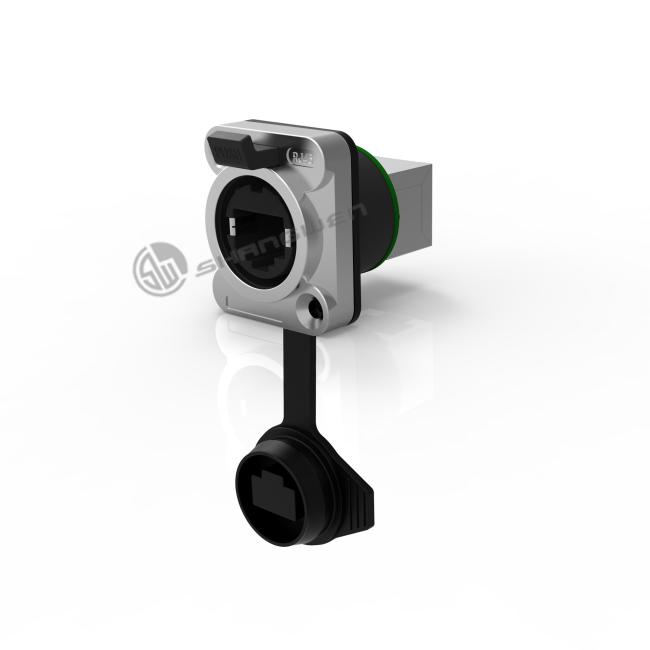

Rj45 Female Ethernet Chassis Connector Industrial IP65 Waterproof

Price Negotiable
Price: $2.50 - $3.60/pieces
MOQ: 10
Delivery Time: Negotiable
Brand: SHANGWEN
Product Description





Angled Bottom Network Port Outdoor Rj45 Crystal Socket Pulg Ethernet Rj45 Waterproof Connector IP65 female socket











Products Description

Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

Model:SW8FDYV(outdoor use)



*The rear end is a straight RJ45 crystal socket, IP65*

☑Can be compatible with SW8MC-B or any standard RJ45 connector
☑D style with uniform metal flange, standard D mounting size
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑D style, can be mounted from front or rear panel
☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached, which can fully meet the durable and stable signal transmission under harsh outdoor conditions
☑The back-end can be flexibly modified according to actual requirements
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function

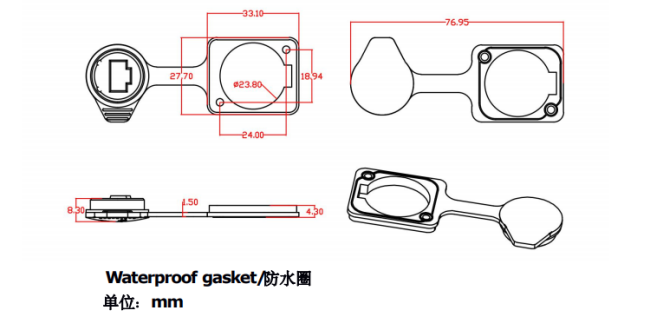

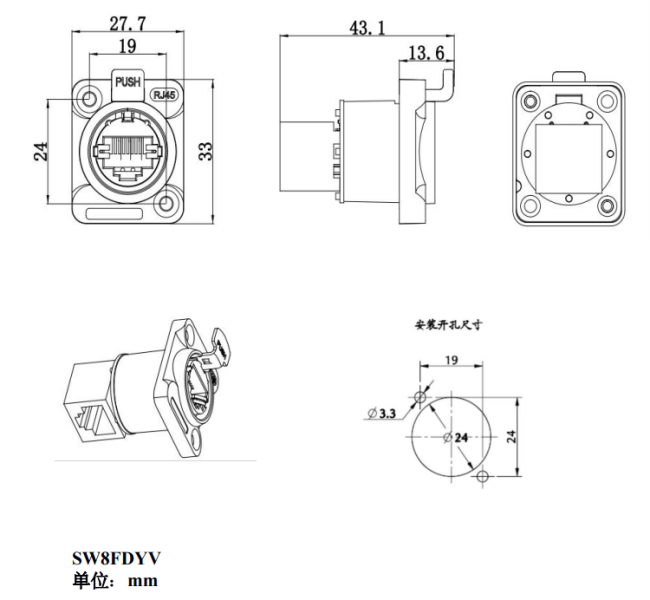

4.Size reference (unit /mm)
5.Internal structure reference
6. Installation instructions with SW8MC-B plugs

Our Services:
To Be Your The Best Connection Expert
1)Low cost but good quality in ip65 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) long quality assurance.
