Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
Price:
$0.85/pieces 2-99 pieces
MOQ:
10
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description
Indoor Protection Class Ip40 High Quality Mini XLR Audio Connector 3 Pin Male Plug
Model:SW3XMT-B (Black)
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated,the shell plating black
Products Description

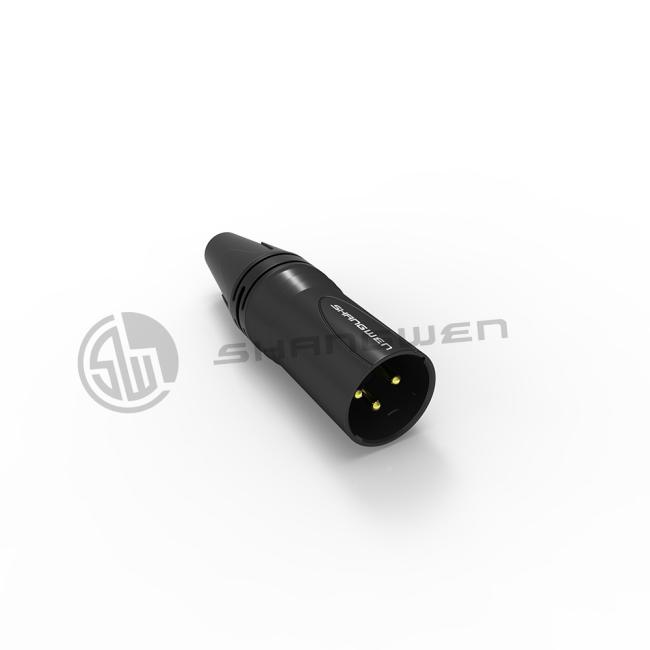

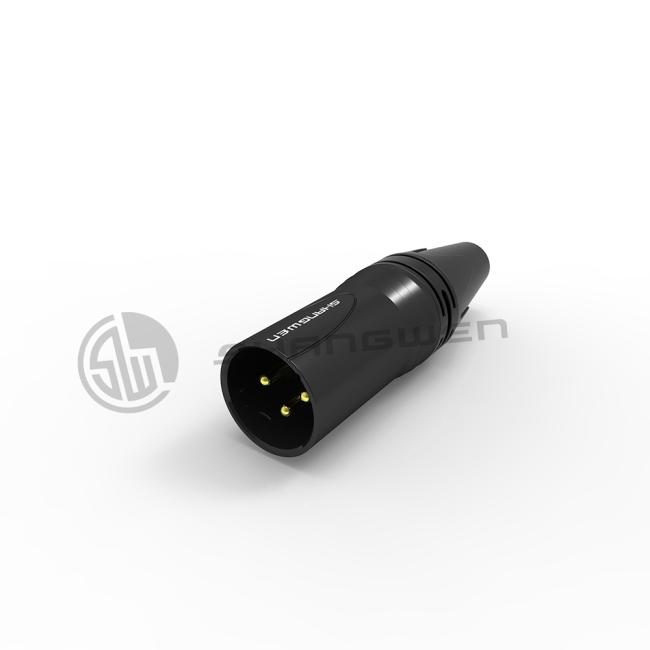

XLR connector-3 pin male plug
The 3-pin male XLR connector plug is a durable audio connector known for its reliable performance. It features a secure locking mechanism for stable connections. It supports balanced audio transmission, reducing noise and interference. It is compatible with standard 3-pin female XLR connectors, making it versatile for various audio equipment. The plug is commonly used in professional audio applications, providing clear and accurate audio reproduction. Its standard dimensions allow for easy installation and integration into audio systems. Overall, the 3-pin male XLR connector plug offers durability, secure connections, balanced audio transmission, compatibility, and reliable performance.
1.Product parameters
|
Connection Type
|
XLR
|
|
Gender
|
Male
|
2.Electrical parameters
|
Capacitance between contacts
|
≤4pF
|
|
Contact resistance
|
≤3mΩ
|
|
Dielectric strength
|
1.5kVdc
|
|
Insulation resistance
|
> 1.5GΩ (initial)
|
|
Rated current per contact
|
10A
|
|
Rated voltage
|
<50V
|
3.Mechanical parameters
|
Sign Cable O.D.
|
3.5-8mm
|
|
Insertion force
|
≤ 40N
|
|
Withdrawal force
|
≤ 40N
|
|
Service life
|
＞1000 mating cycles
|
|
Wire size
|
Max. 2.5 mm²
|
|
Wire size
|
Max. 14 AWG
|
|
Locking device
|
Latch lock
|
4.Material and environmental parameters
|
Boot
|
TPU
|
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Au
|
|
Insert
|
Polyamide (PA 66 +30 % GF)
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell plating
|
Cr Black
|
|
Strain relief
|
Polyacetal (POM)
|
|
Flame-retardant grade
|
UL 94 HB
|
|
Protection class
|
IP40
|
|
Temperature range
|
-20℃to +80℃
|

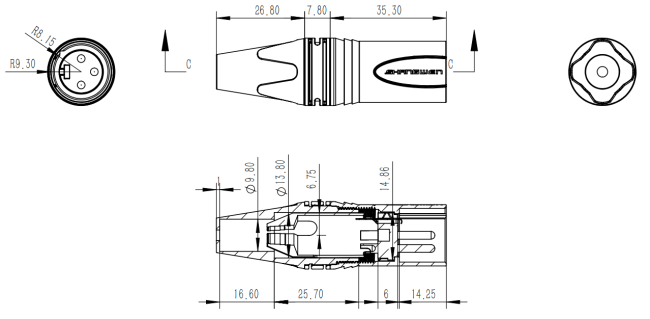

5.Size reference (unit /mm)

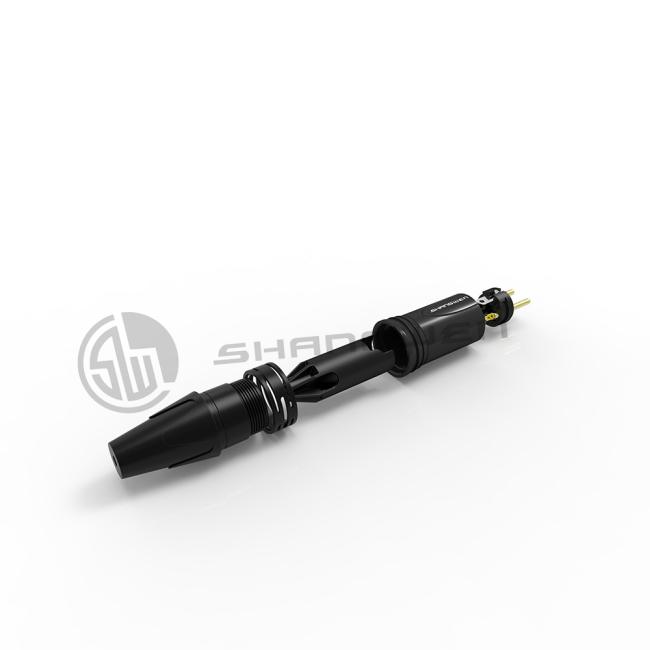

6.Assembly reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
