Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
Price:
$0.98/pieces 2-99 pieces
MOQ:
10
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description
D Type Shape Zinc Alloy Shell Indoor Male Socket Audio Mini Xlr Connector 3 Pin
Products Description

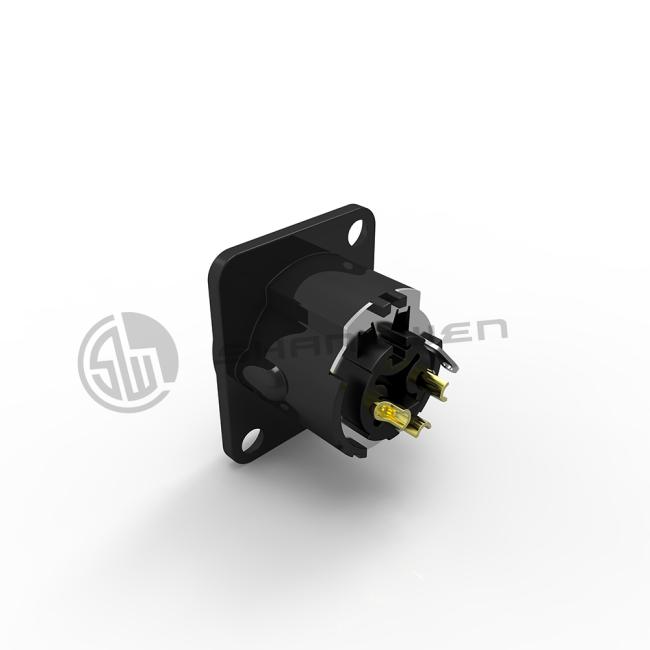

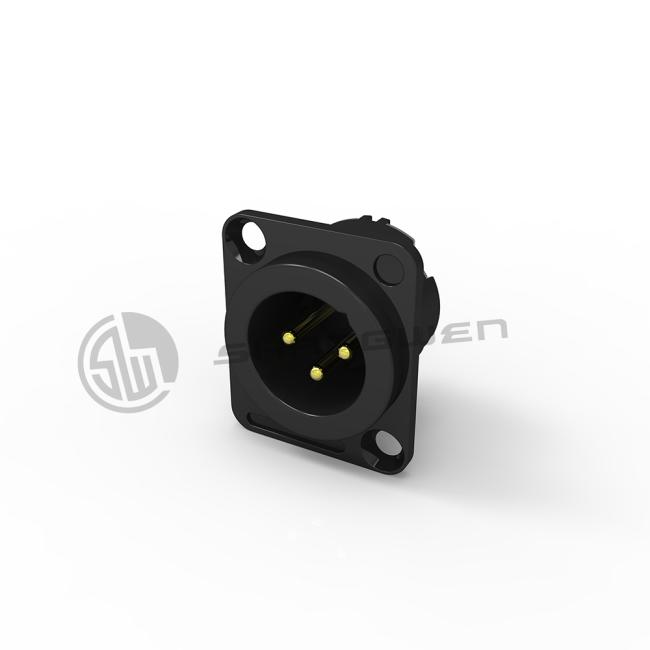

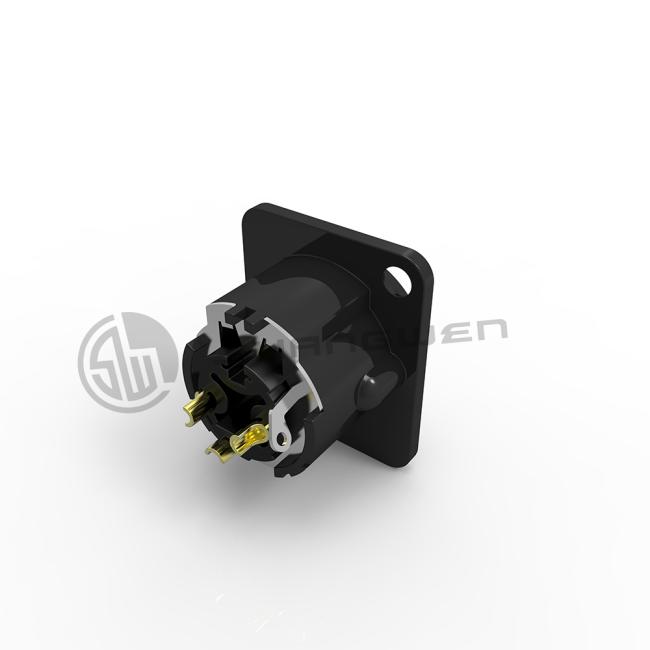

XLR connector-3 pin male socket
Model:SW3XMZ-B (Black)
☑Protection class IP40
☑Light size, can be installed front and back
☑Zinc alloy shell, contact point gold-plated
☑Standard D mounting dimensions, fully matched to existing installation
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
Features of a 3-pin male XLR connector socket:
- Pin Configuration
- Durable Construction
- Secure Connection
- Balanced Audio Transmission
- Standard Compatibility
- Professional Usage
- Easy Integration
- Reliable Signal Transfer
- Versatile Applications
1. Product parameters
|
Connection Type
|
XLR
|
|
Gender
|
Male
|
2. Electrical parameters
|
Capacitance between contacts
|
≤4pF
|
|
Contact resistance
|
≤5mΩ
|
|
Dielectric strength
|
1.5kV DC
|
|
Insulation resistance
|
> 1.5GΩ (initial)
|
|
Rated current per contact
|
10A
|
|
Rated voltage
|
<50V
|
3. Mechanical parameters
|
Insertion force
|
≤ 40N
|
|
Withdrawal force
|
≤ 40N
|
|
Service life
|
＞1000 mating cycles
|
|
Chassis shape
|
D type
|
4. Material and environmental parameters
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Au
|
|
Insert
|
Polyamide (PA 66 +30 % GF)
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell plating
|
Cr Black
|
|
Solder ability
|
Complies with IEC 68-2-20
|
|
Flame-retardant grade
|
UL 94 HB
|
|
Protection class
|
IP40
|
|
Temperature range
|
-20℃to +80℃
|
5.Size reference (unit /mm)
6. Assembly reference
