China Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical for sale

Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical

Price Negotiable

Price: $1.28/pieces 2-99 pieces

MOQ: 10

Delivery Time: Negotiable

Brand: SHANGWEN

Product Description

Wholesale Price Indoor Front Back Installed Male Socket 5 Pins XLR Audio Connector

Model:SW5XMZ-B (Black)

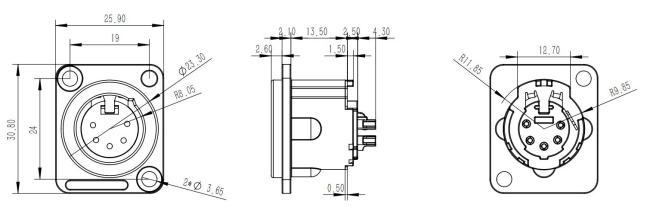

☑Standard D mounting dimensions, fully matched to existing installation

☑Light size, can be installed front and back

☑Zinc alloy shell, contact point gold-plated

☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry

☑Protection class IP40

Products Description

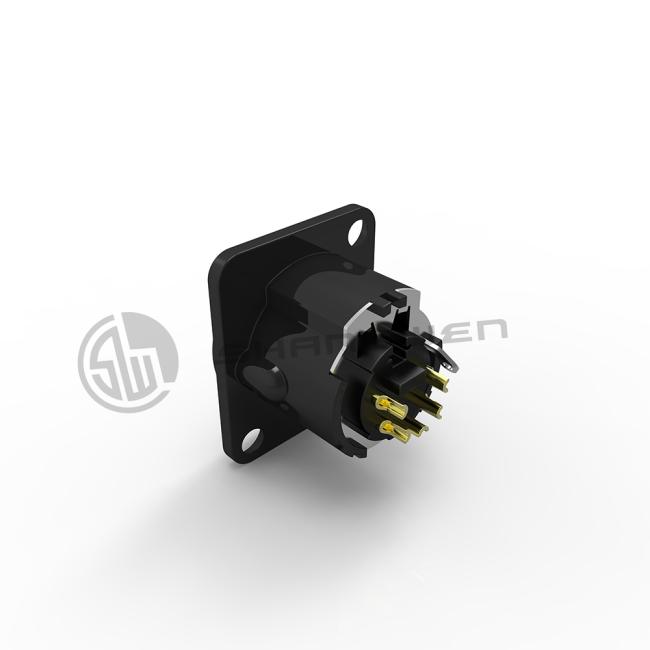

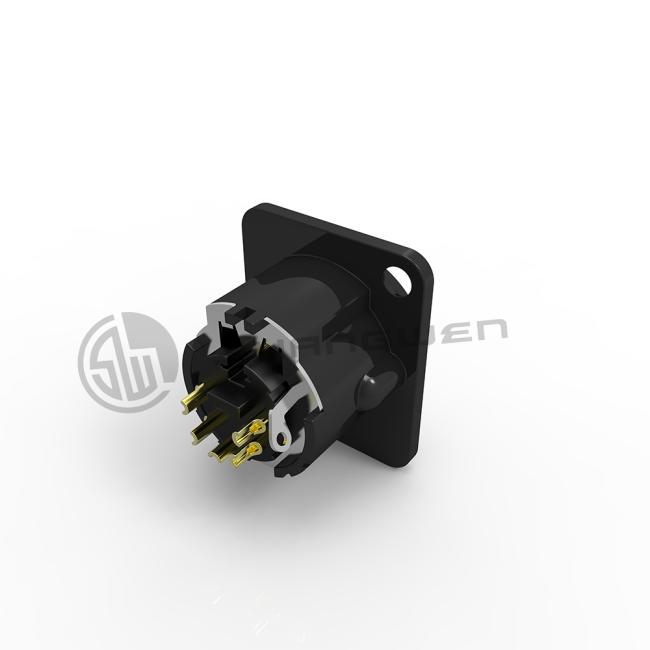

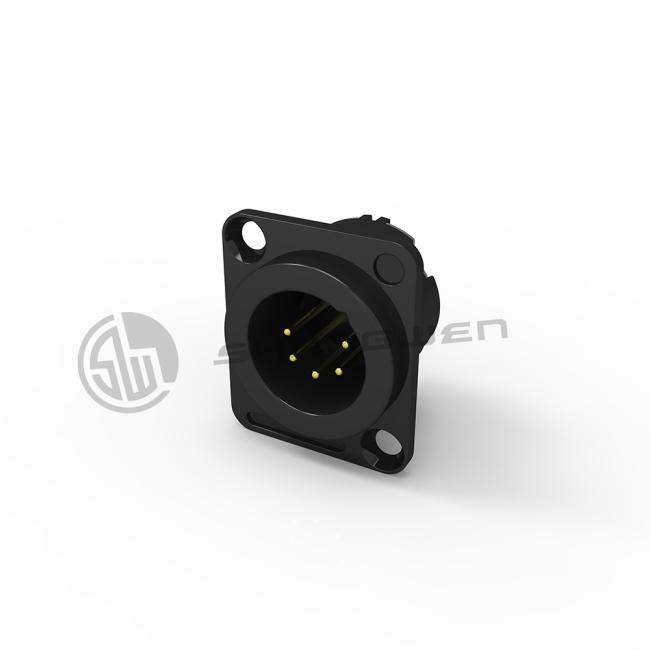

XLR connector-5 pin male socket

The 5-pin male XLR connector socket is a versatile audio connector designed for professional audio applications. Here is a product description highlighting its key features:

High-Quality Construction: The connector socket is crafted with precision and durability in mind, featuring a robust metal or high-grade plastic housing that ensures long-lasting performance and reliability.

Balanced Audio Transmission: The 5-pin XLR connector socket supports balanced audio signals, allowing for the transmission of high-quality audio with reduced noise and interference.

1. Product parameters

Connection Type	XLR
Gender	Male

2. Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤5mΩ
Dielectric strength	1.5kV DC
Insulation resistance	> 1.5GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3. Mechanical parameters

Insertion force	≤ 40N
Withdrawal force	≤ 40N
Service life	＞1000 mating cycles
Chassis shape	D type

4. Material and environmental parameters

Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr black
Solder ability	Complies with IEC 68-2-20
Flame-retardant grade	UL 94 HB
Protection class	IP40
Temperature range	-20℃to +80℃
