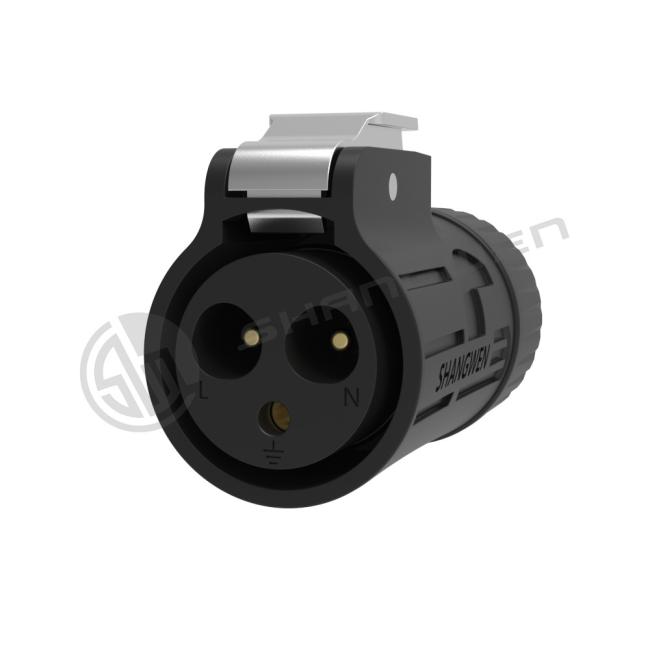

IP67 PBT Material 3pin Male Female power Waterproof Connector
Price:
$2.00 - $3.60/pieces
MOQ:
10
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description
Precision Waterproof Design Metal 3 Core Powercon Connector Ac Led Female Male Connectors
Products Description
Power connector series-3 core male powercon(Metal material ,card buckle type)
Male and Female 3 Pin Waterproof IP67 Molding Cable Connector
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The socket is made of zinc alloy with complete electromagnetic and radio frequency interference protection.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
Model : SW3AM-T ( outdoor use )
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
☑Semi-metallic style,which can meet the demands of anti-interference,high strength
and high corrosion resistance;
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
1. Electrical parameters
|
Contacts NO.
|
Φ2.0* 3 pin
|
|
Rated current
|
20A
|
|
Rated voltage
|
250V AC
|
|
Contact resistance
|
≤4mΩ
|
|
Withstand voltage
|
2500V AC
|
|
Insulation resistance
|
＞1000MΩ
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Power line
|
4mm²
|
|
Wire stripping length
|
φ9-12mm
|
|
Type of terminals
|
Soldering
|
3. Material and environmental parameters
|
Shell&insulated parts
|
PBT
|
|
Hardware metal
|
Zinc alloy
|
|
Contacts
|
Brass with gold-plated
|
|
Sealing
|
Silicone/rubber
|
|
Flame-retardant grade
|
UL94-V0
|
|
Temperature range
|
-30°C to +80°C
|
|
Temperature rise
|
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
|
|
Protection level
|
IP65
|
4. Size reference (unit /mm)
Application area
Patent & Certification
Exhibition activities
FAQ
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
