Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
Price:
$2.20/pieces 2-99 pieces
MOQ:
10
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description

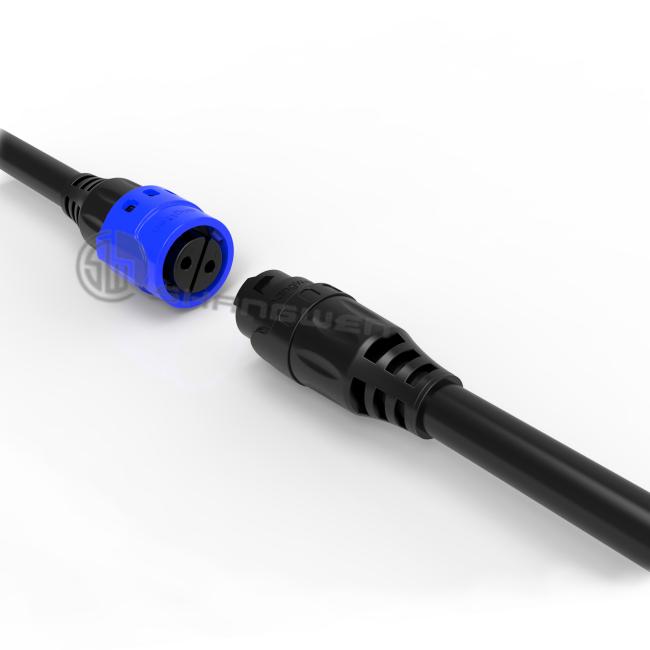

Wholesale Outdoor M19 Self-locking Series Female Plug 2 Pin Industrial Connectors
SW19 Self-locking series-2 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.
M19 Assembly Waterproof Male Female Connector 2 Pin IP67 Waterproof Plug and Socket Front Mount Electrical Wire Connectors
Product Description
• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
• Protect from dust and water during immersion, resistant to many oils and chemicals.
• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.
• Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation
application.
• 100% new material, high-quality parts, strictly QC standard according to international customers.

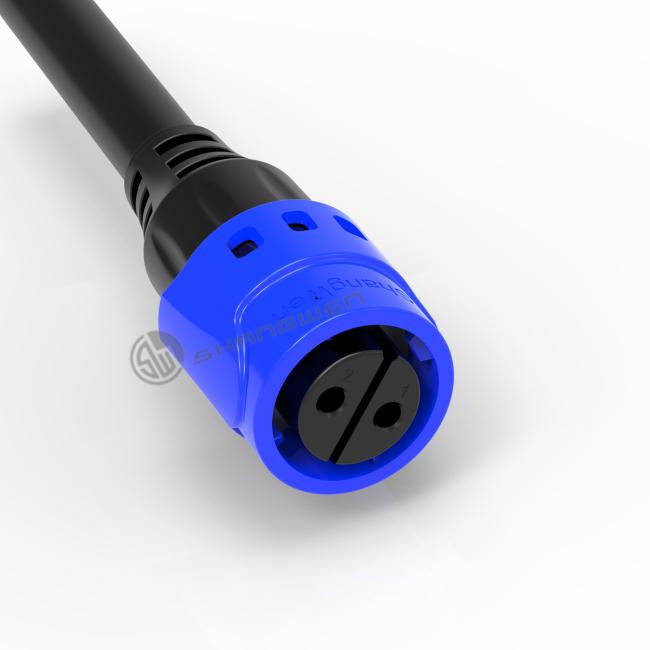

Model : SW19-2KST (2 pin female plug)
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Connect reliably
☑Waterproof rating IP67
☑Quick, simple self locking system
☑Small size of product
1. Electrical parameters
|
Contacts NO.
|
2 pin
|
|
Rated current
|
20A
|
|
Rated voltage
|
300V AC
|
|
Withstand voltage
|
1500V
|
|
Insulation resistance
|
≥100mΩ
|
|
Contact resistance
|
≤10mΩ
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Power line
|
Φ4.5mm-Φ11mm
|
|
Type of terminals
|
Screw terminal and soldering terminal available
|
3. Material and environmental parameters
|
Shell
|
High performance engineering plastics
|
|
Contacts
|
Copper alloy
|
|
Contact diameter
|
Φ2.4mm
|
|
Protection degree
|
IP67
|
|
Flame-retardant grade
|
UL94-V0
|
|
Temperature range
|
-40℃~105℃
|
4. Size reference (unit /mm)
5. Operating reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
