China 19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector for sale

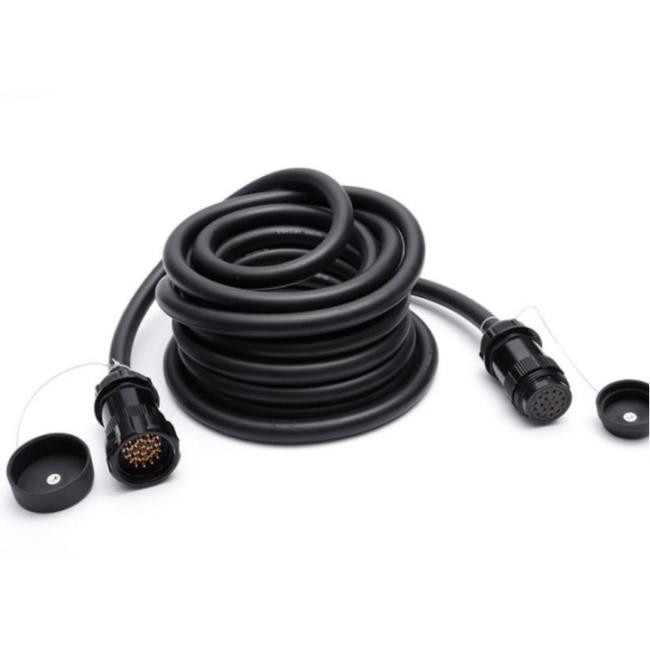

19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector

Name: 19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Brand: Shenzhen Shangwen Electronic Technology Co., Ltd.

Price Negotiable

Price: CN¥808.88-2,920.55/pieces

MOQ: 5 pieces

Delivery Time: Negotiable

Brand: SHANGWEN

Product Description

Products Description

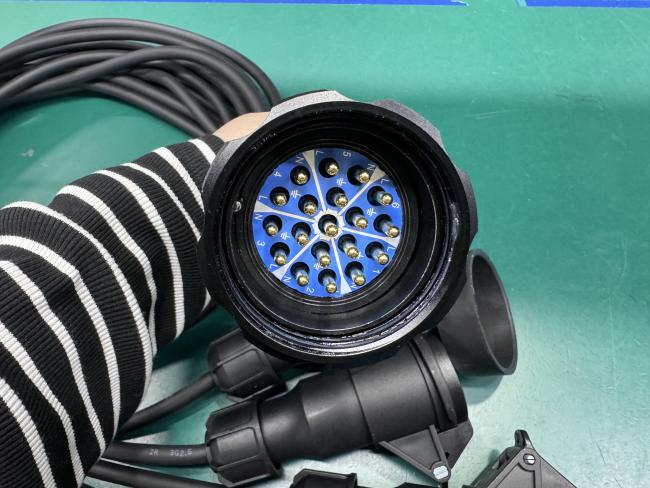

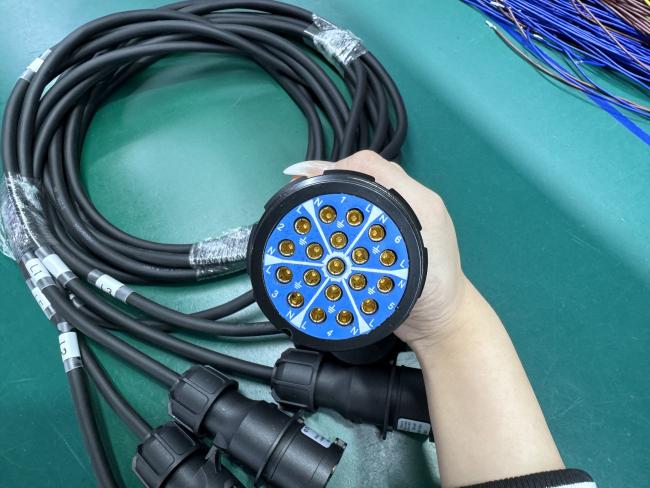

19-Core Male Female aviation Plug Gold-Plated Copper Needle Stage Light Signal Waterproof Plug with distribution box

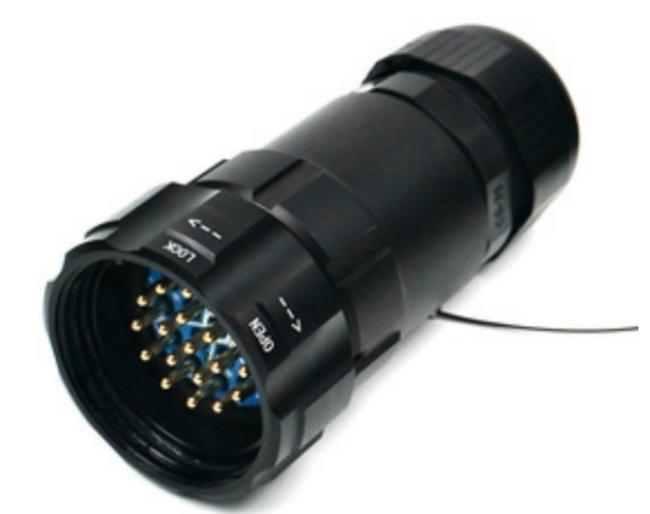

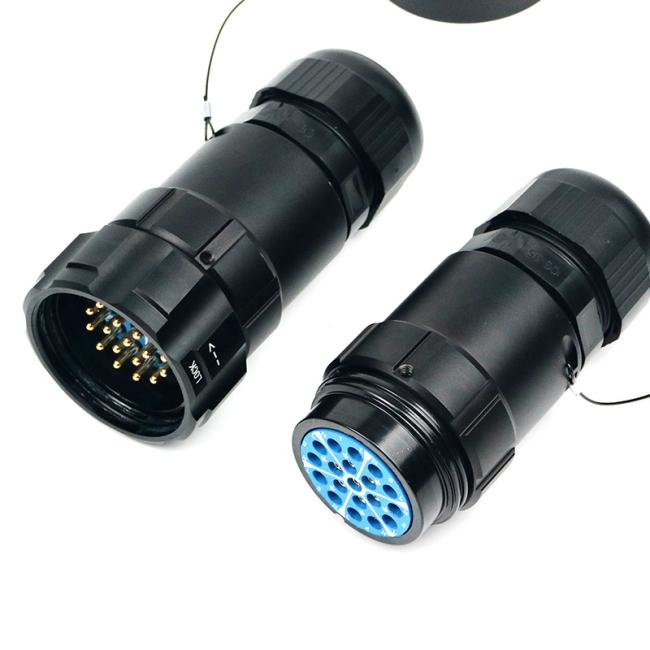

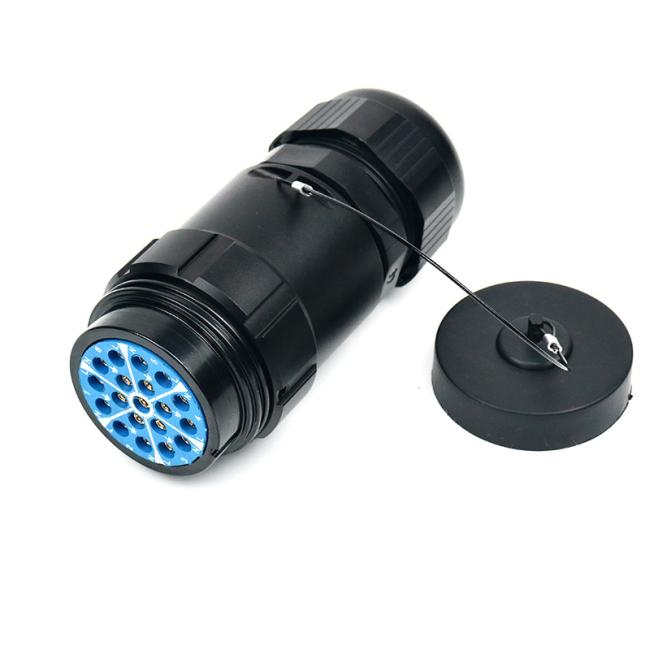

This 19-pin connector is designed for stable coupling and fast wiring.

Indestructible, super secure and easy to handle.Compatible with Socapex SL 419 series.Certified by the German TUV. The unit is fully IP67 waterproof when mated. Electrical safety and compliance are ensured by the internal insulation of the housing, obtained by means of a safety insulating sleeve to prevent electric shock, as well as a "first on, then off" ground contact.
The locking ring and back case are designed for easy handling. Our company's SLY 19 cores are perfectly compatible with the standard Socapex SL 419 series and are made of a machined aluminum alloy with a thick-walled structure, which is very strong and very resistant to wear with black lacquer or anodized finish.

The system ensures that the interior is actively locked down, putting an end to a long-standing industry problem.

☑Related current:16A

☑Related Voltage: 300-500V

☑Insulation Resistance: ≥5.0 MΩ 500Vdc

☑Dielectric Strength: 1.5 KVdc 1min.

☑Housing Material: Zinc alloy

☑Current carrying
insulation material: PA flame retardant nylon

☑Contact Material: Gold-plated copper

☑ Temperature Rise:The cut-off terminal does
not exceed 50K

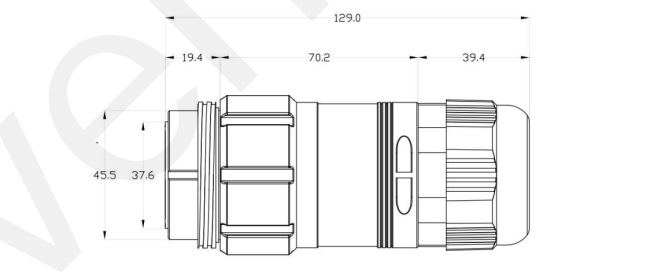

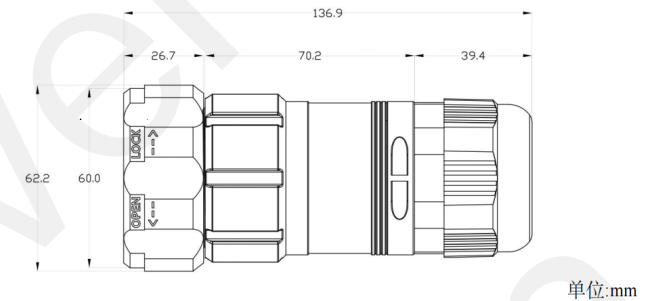

1.Size reference (unit /mm)

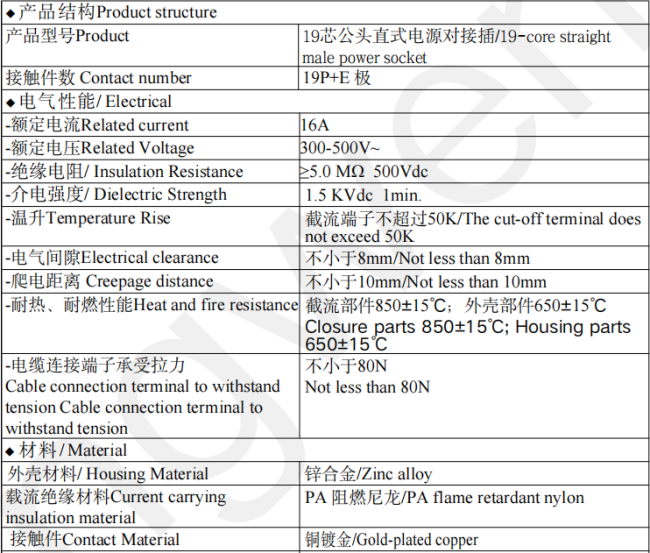

2.Specification description

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
