Durable Metal BNC Male Video Connector Plug 500 Cycles Screw Type Connectors
Price:
$1.80-2 / piece
MOQ:
20 pieces
Delivery Time:
Negotiable
Brand:
SHANGWEN
Product Description
Products Description

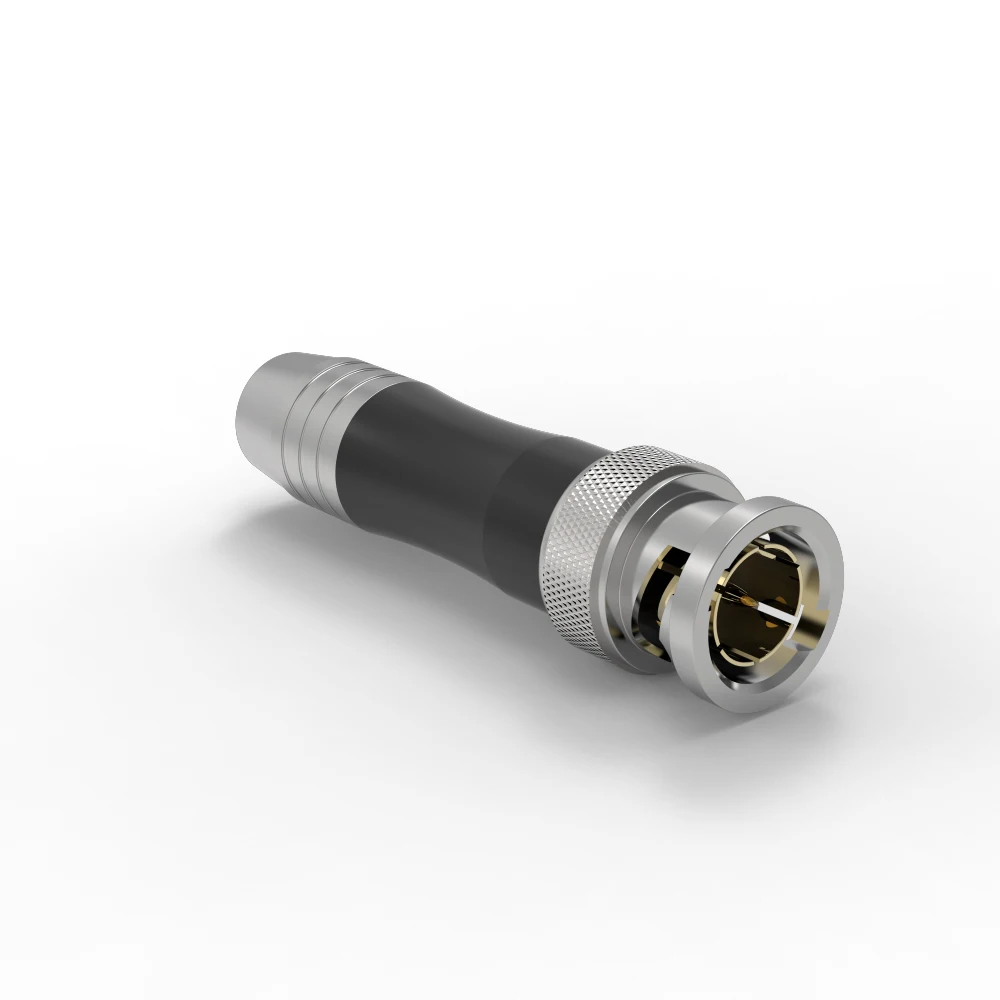

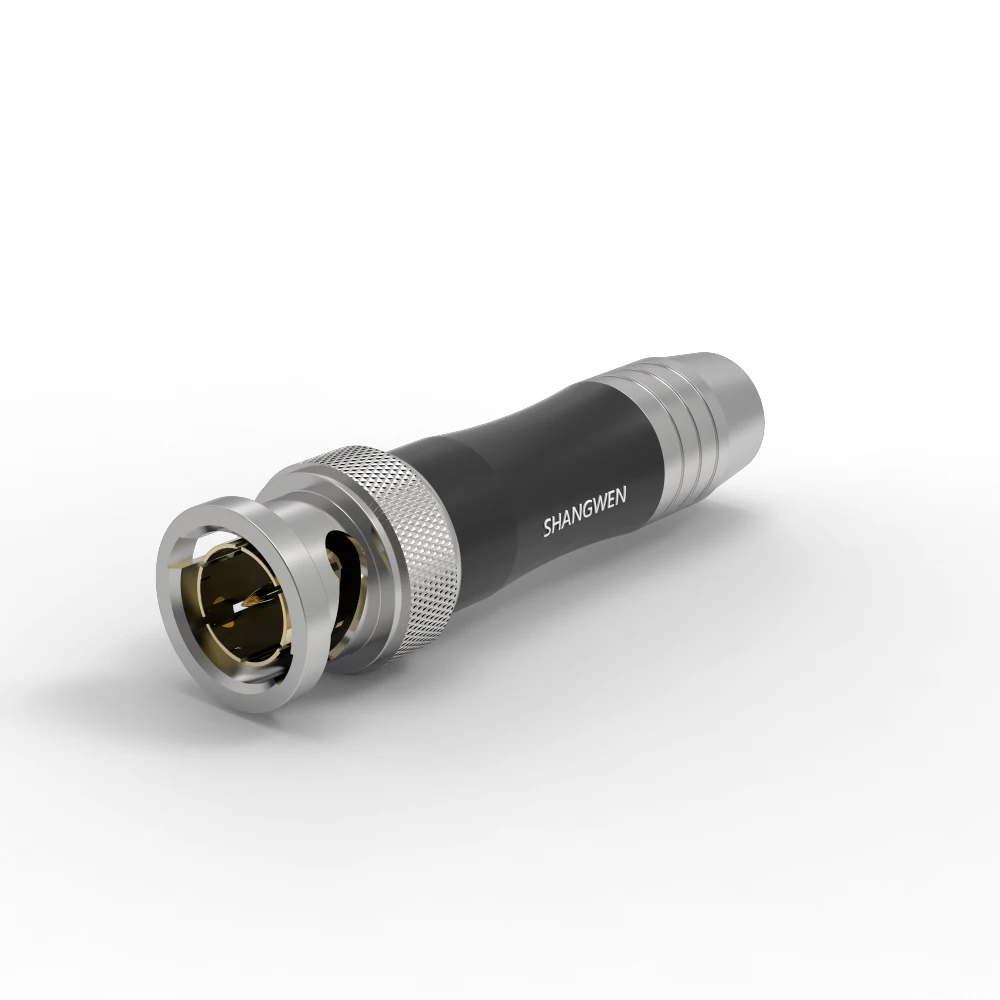

Metal Male BNC Video Connector Plug With 500 Cycles Durability
BNC Video Connector is a male plug connector designed for use in high-frequency video applications. It features a BNC panel mount
connector adapter for easy installation and offers a 50 ohm impedance with a low insertion loss of 0.2dB and a VSWR of 1.2:1. This
connector is ideal for providing a secure connection with a reliable transmission of high-quality video signals. It is also highly
durable and resistant to corrosion, making it suitable for use in harsh environments. With its easy installation and superior
performance, BNC Video Connector is the perfect choice for any video application.
Model : SWJSH-BNM
☑Package: Bag/Tube
☑Operating Temperature: -20~80℃
☑Gender: Male/Female
☑Mounting Type: Through Hole
☑Color: Red/White/Yellow
☑Features: HI-FI Audio & Video Plug Connector, RCA female connector, RCA connector
1.Electrical parameters
Rated Current | 16A rms |
Insulation Resistance | 50V AC |
Insulation Resistance | ＞5GΩ |
Dielectric Strength | 0.5 KVdc |
2.Mechanical parameters
Service life | >2,000 Mating Cycles |
Power line | Φ4-7.0mm |
Insertion force | ＜25N |

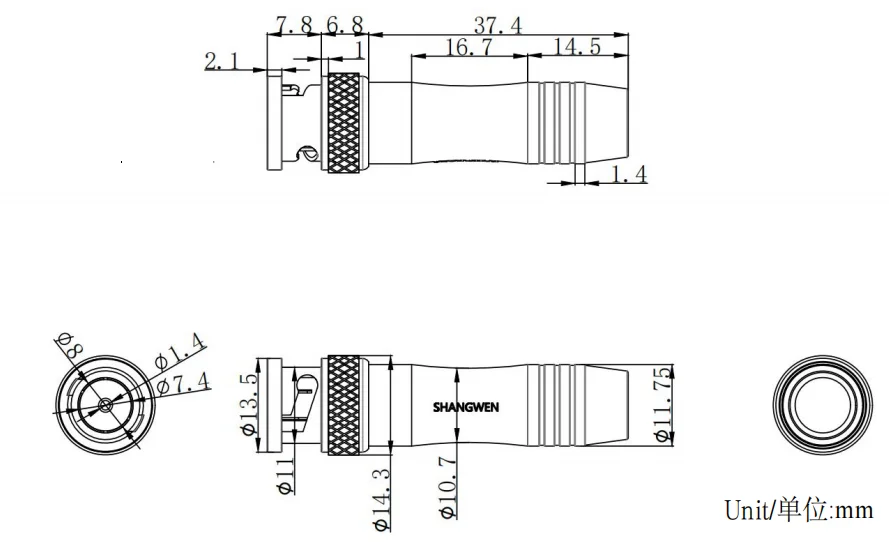

3.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
